Tibial Plafond

IssuesSevere Tibial Plafond



Complex / high energy injuries



Management of soft tissues critical

- restore length with external fixation

- await for swelling to reduce



Restoration of alignment & joint surface imperative



Outcome guarded

- can still develop arthritis with good joint surface restoration

- initial injury to chondral surfaces


Epidemiology



35 - 40 years

Males 3 x



Aetiology



Rapid axial load

Very high energy



Anatomy



Soft tissues very poor

- thin skin

- absence of muscle and adipose tissue

- lack of deep veins



Especially vunerable over anteromedial tibia



Reudi Classification



1.  Undisplaced

2.  Displaced Simple

3.  Displaced Complex



OTA Classfication



43-B Partial Articular

43-C Complete Articular



CT scan



Tibial Plafond External Fixator



Critical to planning

- helps to guide surgical approach

- main fracture configuration

- plating configuration



Commonly 3 fracture configurations

- medial malleolus

- posterolateral fragment / Volkmann

- anterolateral fragment / Chaput

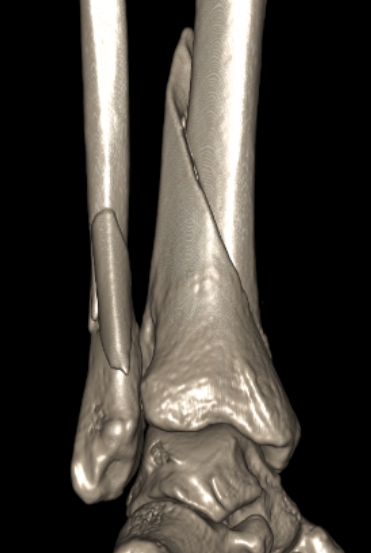

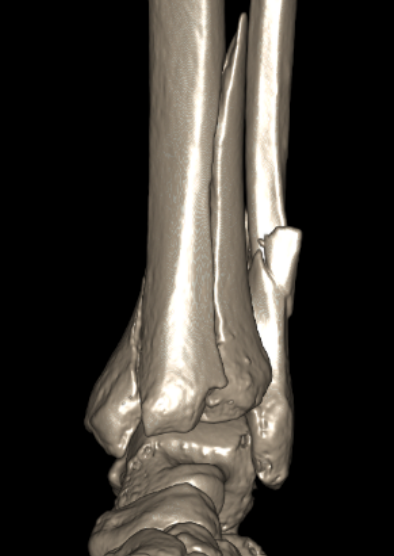

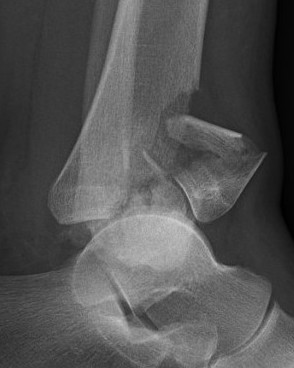

Tibial plafond common fragmentsTibial plafond fragments



Associated injuries



Compound wounds



Silluzio et al. Injury 2019

- 14 open tibial plafond fractures

- 28% deep infection

- 43% delayed union

https://pubmed.ncbi.nlm.nih.gov/31171351/



Fibula fractures

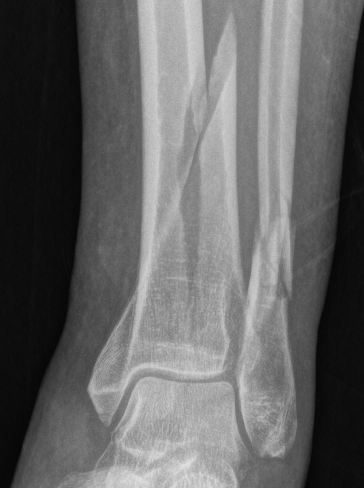

Fibular fracture tibial plafondTibial plafond fibular fracture



Bonnevialle et al. Orthop Traumatol Surg Res 2010

- may aid reduction

- however, may contribute to nonunion

- if fibular fracture is malreduced, can contribute to tibial malreduction and malunion

https://pubmed.ncbi.nlm.nih.gov/20851076/



Syndesmotic / Syndesmotic equivalent injuries



Syndesmotic equivalent fractures tibial plafondChaput fragment syndesmotic equivalent



Haller et al. J Orthop Trauma 2019

- 14/735 (2%) had missed syndesmotic injuries

- 93% of these patients developed post traumatic osteoarthritis

- syndesmotic equivalent injuries more common with Chaput (AITFL Ligament) / Volkmann fragments (PITFL) or fibular avulsion

https://pubmed.ncbi.nlm.nih.gov/30768532/



Management



1.  Soft tissue algorithm



Management of the soft tissues is the key to a good outcome



Long delays

- wait until swelling down

- wrinkled skin, blisters resolved

- wait 3 weeks plus if needed

- operating early can be a disaster



Spanning external fixation

- holds out length

- helps soft tissues recover

- patient can mobilise

- allows surgery on planned elective list

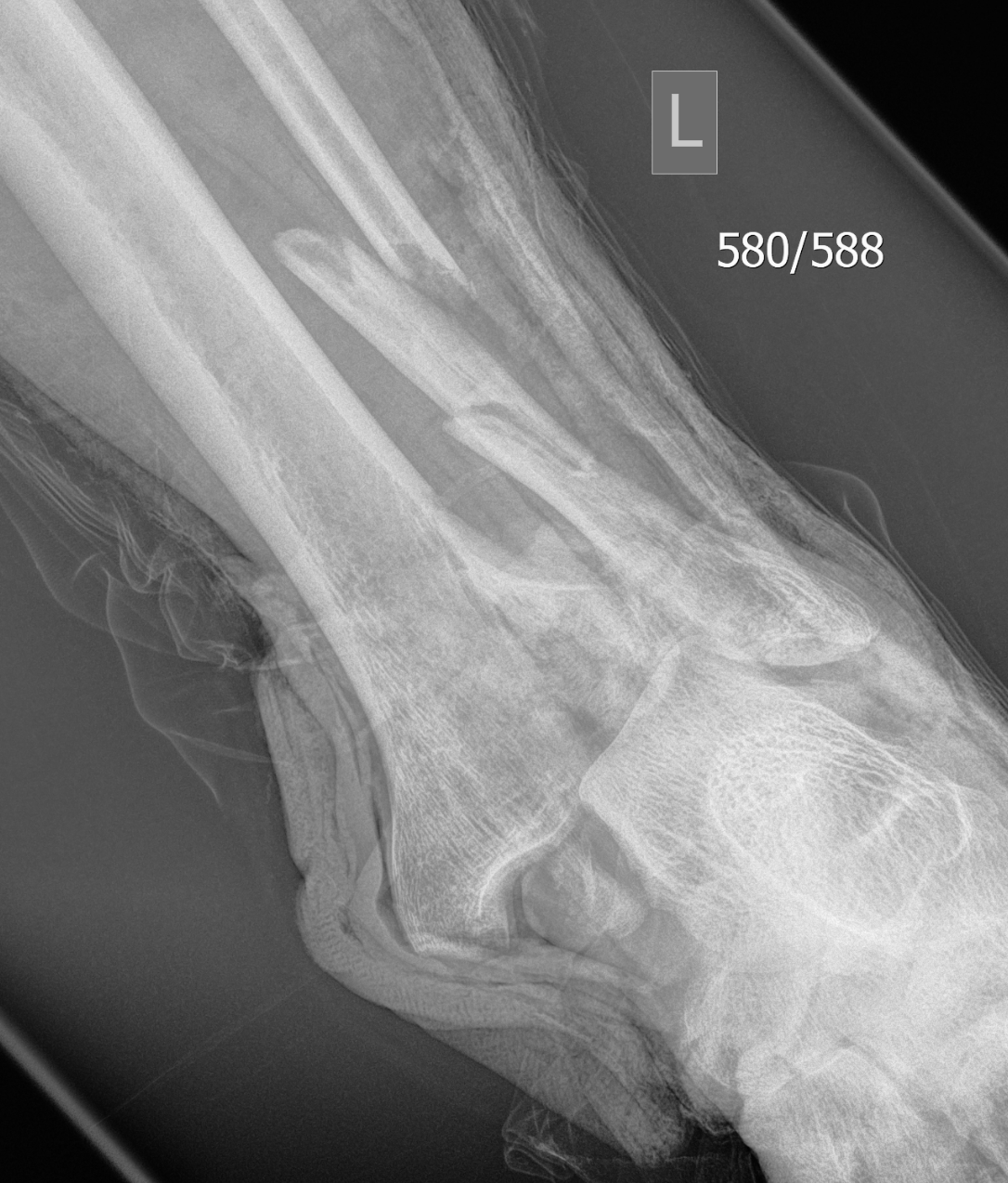

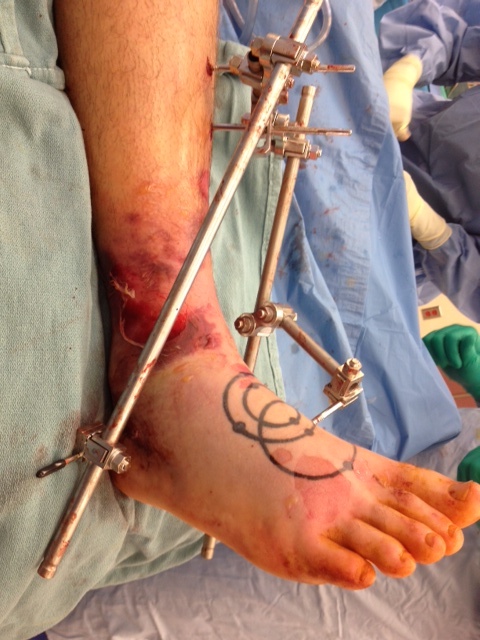

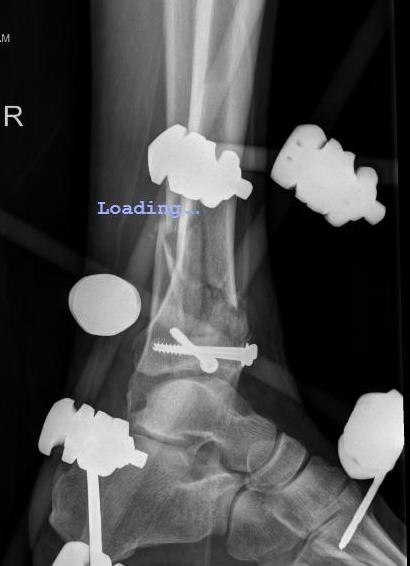

Tibial Plafond Pre External Fixator APTibial Plafond Pre External Fixator Lateral



Tibial Plafond Post External Fixator APTibial Plafond Post External Fixator Lateral



Technique

- ankle bridging delta frame

- two pins in the tibia away from surgical site

- transcalcaneal threaded pin placed medial to lateral

- pin in first meta-tarsal to keep foot in neutral position

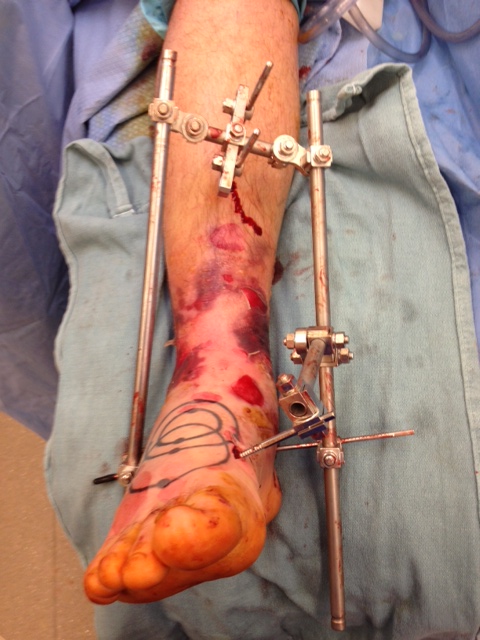

Tibial Plafond external fixator



AO foundation surgical technique

https://surgeryreference.aofoundation.org/orthopedic-trauma/adult-trauma/distal-tibia/partial-articular-split-depression-fracture/temporary-joint-bridging-triangular-external-fixation#reduction-and-fixation-triangular-external-fixation-



2.  Surgical Algorithm



A.  Restore fibula length

- holds fracture out to length

- may prevent fracture malunion



B. Reduce articular surface



C. Restore bony alignment



D.  Bone graft any defects

- can be done as a delayed procedure at 6 weeks



Surgical options



ORIF with plates

Circular external fixation



Malik-Tabassum et al. Injury 2020

- meta-analyis of ORIF v circular external fixation

- increased rate of hardware removal for ORIF

- reduced rate of osteoarthritis with ORIF

- no difference in superficial or deep injection, or secondary fusion

- no obvious difference in outcomes

- more severe injuries tended to be treated with circular external fixation

https://pubmed.ncbi.nlm.nih.gov/32430194/



ORIF with Plates



Surgical Approaches



Varied surgical approach



A. Anterolateral approach

- to apply an anterolateral plate

- indicated with valgus configuration

- anteolateral / Chaput fragment



Incision centred on ankle joint

- in line with 4th metatarsal

- preserve branches superficial peroneal nerve

- divide extensor retinaculum

- all extensor tendons reflected medially, including peroneus tertius



Anterolateral fragment and valgus injuryTibial plafondTibial plafond anterolateral plate



B. Anteromedial approach

- indicated with varus configuation

- large medial fragment

- medial to tibialis anterior

- can make small anterolateral incision to fix small Chaput fracture

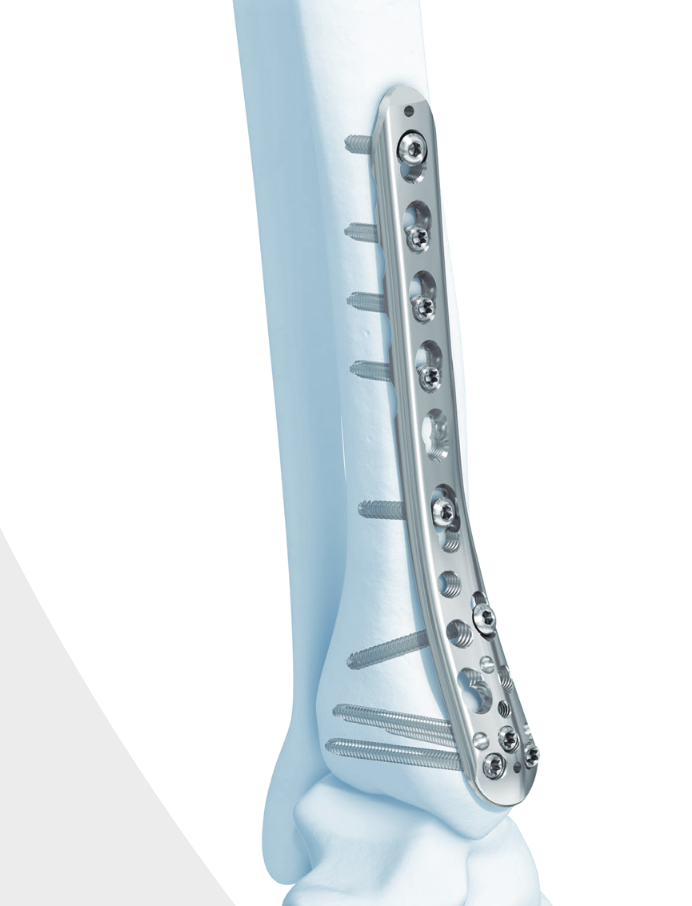

Tibial plafond medial plate 1Tibial plafond medialTibial plafond medial plate 3



C. Posterolateral approach

- indicated if large posterior tibial fragment requiring buttress



Techniques to minimise complications



1.  Long delays until definitive surgical treatment using initial spanning external fixation



2.  The use of small, low-profile, anatomical implants



3.  Avoidance of incisions over the anteromedial tibia



4.  The use of indirect reduction techniques minimizing soft tissue stripping / MIPO



5.  Careful surgical management of the soft tissues at all times



Surgical Technique Plating



Position

- supine on radiolucent table

- IV antibiotics

- tourniquet for 2 hours then release



ORIF fibula

- holds fracture out to length

- via posterolateral incision

- need wide skin bridge from anterior incision



Anterolateral approach skin incision

- 10 cm long incision centred over jont line

- must be 7 cm from posterolateral incision

- expose distal tibia

- minimise stretch on wound edges at all times



Anatomical reduction joint surface

- open fracture site / open joint / washout haematoma

- can apply femoral distractor to view joint surface

- 4 mm Shanz pins in talar neck laterally, and into tibia proximal to plate

- examine talar dome using periosteal elevator

- ORIF small osteochondral fragments with small modular screws (1.5 - 2 mm)



Attach metaphysis to diaphysis

- anatomically contoured low profile locking plate

- MIPO techniques

- anterolateral L shaped plate via anterior wound

- small incisions proximally to insert screws

- 4 cortices above fracture

- small medial incision to insert medial plate percutaneously



Postoperatively

- elevate +++

- NWB

- early ROM

- consider bone grafting defects at 6/52



Outcomes



Bonato et al. Injury 2017

- 1 year outcome of 91 plafond injuries

- 57% return to work at 1 year

- 27% reported residual moderate to severe pain

https://pubmed.ncbi.nlm.nih.gov/28233519/



Pollack et al. JBJS Am 2003

- 80 patients at a mean of 3.2 years post injury

- 35% reported ongoing stiffness and pain

- 43% not working

- https://pubmed.ncbi.nlm.nih.gov/14563795/



Complications



Wound breakdown



Tibial Plafond Wound Breakdown



Deep infection



Duckworth et al. Bone Joint J 2016

- 9% (9/102) rate of deep infection

- associated with co-morbities, open fractures, initial external fixation

https://online.boneandjoint.org.uk/doi/pdf/10.1302/0301-620X.98B8.36400



Stiffness



Osteoarthritis



Harris et al. Foot Ankle Int 2006

- 79 pilon fractures with mean follow up 2 years

- 40% developed post traumatic arthritis

https://pubmed.ncbi.nlm.nih.gov/16624215/



Malunion



Distal Tibial Malunion APDistal Tibial Malunion LateralDistal Tibial Malunion CTDistal Tibial Malunion Correction


Nonunion



Haller et al. J Orthop Trauma 2019

- incidence of nonunion 14% (72/518)

- associated with open fractures, bone loss, and smoking

https://pubmed.ncbi.nlm.nih.gov/31094937/



Case Examples



Case 1



Fracture configuration

- characteristic Chaput fragment

- otherwise lateral column mostly intact

- large medial fragment / medial column disruption



Plan

- small anterolateral approach

- joint reduction and cannulated screws into Chaput fracture

- medial plate inserted and fixed with MIPO technique

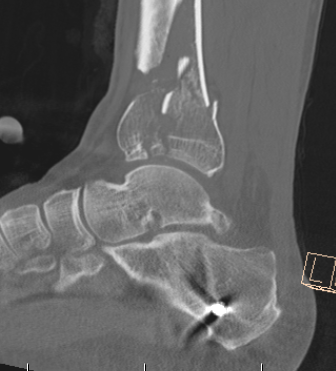

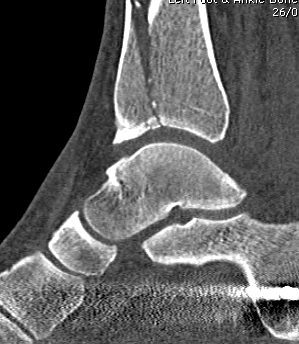

Tibial Plafond CT AxialTibial Plafond CT SagittalTibial Plafond CT Axial

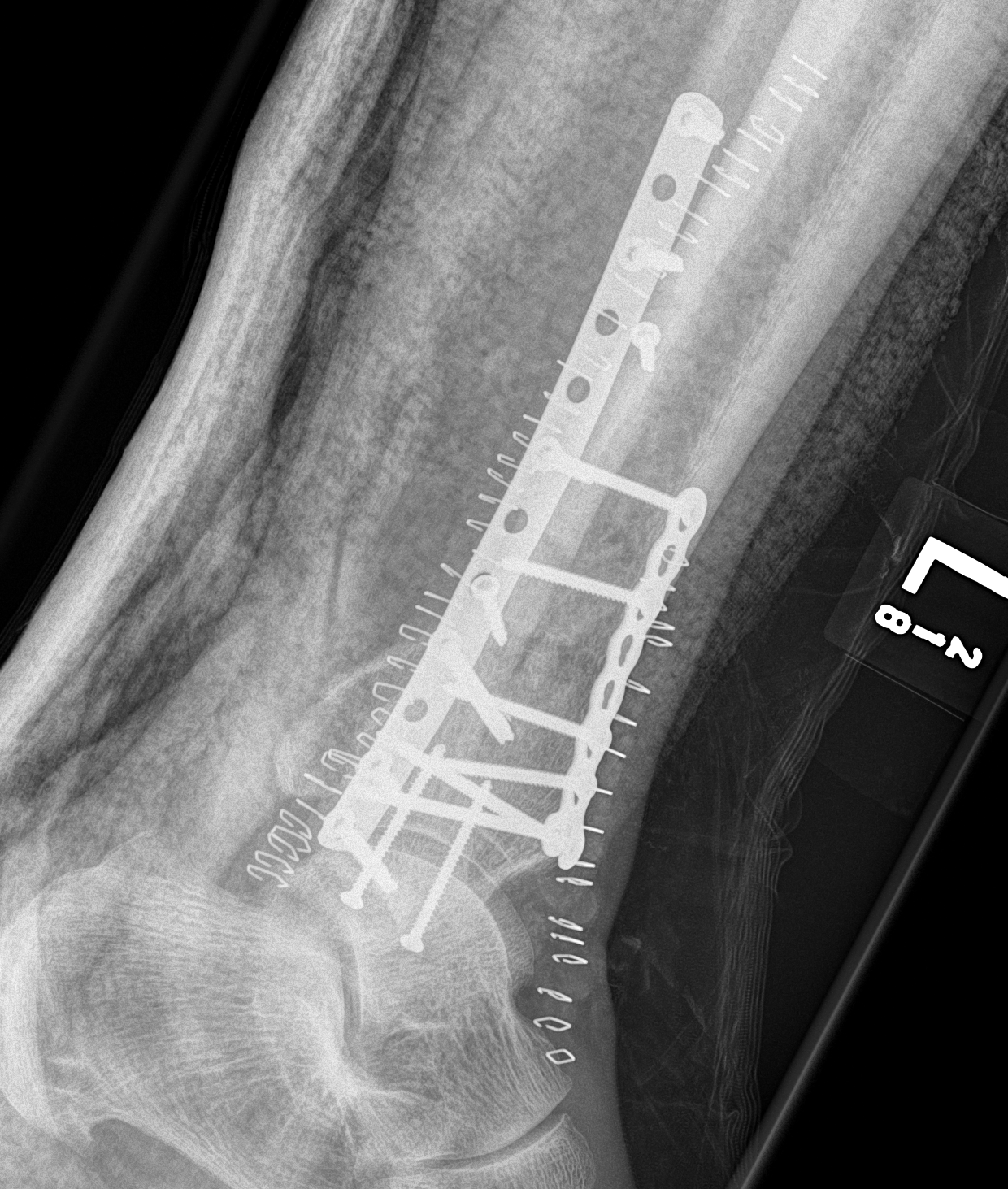

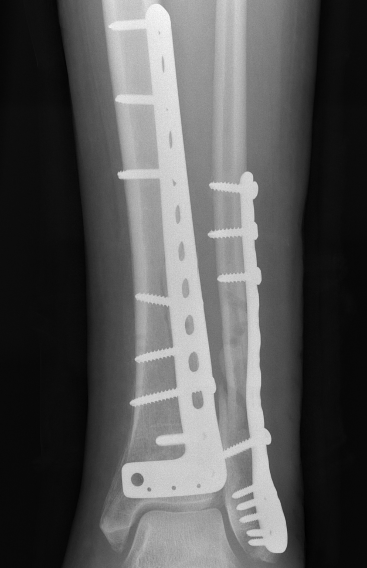

Tibial Plafond ORIF APTibial Plafond ORIF Lateral



Example 2



Severe plafond fracture

- large medial fragment

- characteristic Chaput / syndesmotic fragment

- articular fragments driven up into joint

- both columns disrupted



Plan

- anterolateral approach

- use femoral distractor

- remove fragments from joint

- restore articular fragments with screws

- anterolateral plate (separate proximal incision for proximal screws)

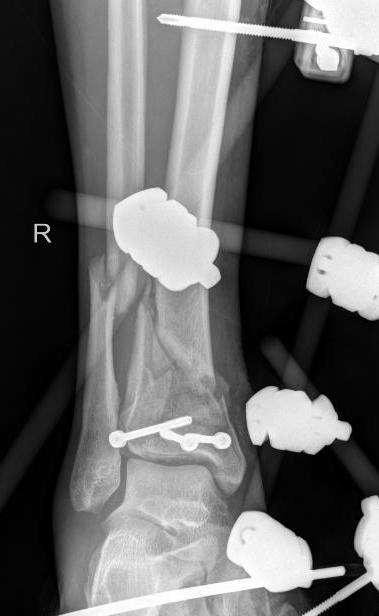

- percutaneous medial plate (leg was ultimately too swollen, percutanous screws inserted)



Severe Tibial Plafond CT CoronalSevere Tibial Plafond CT SagittalSevere Tibial Plafond CT Axial



Severe Tibial Plateau Post Op
