Osteochondral defects



OC defectOC defect



Definition



Defect of cartilage +/bone

Typically on talus



Options



Marrow stimulation - microfracture / microdrilling



Cartilage restoration

- Matrix autologous cartilage implantation (MACI)

- Autologous membrane induced chondrogenesis (AMIC)

- Autologous minced cartilage implantation (AutoCart)

- Allogenic minced juvenile cartilage implantation (DeNovo)

- Osteochondral autograft (Mosaicplasty / OAT)

- Osteochondral allograft (OCA)



Location



Issue

- guides approach

- open versus arthroscopic

- need for osteotomy



van Diepen et al Cartilage 2021

- systematic review of 2000 OC lesions of the talus

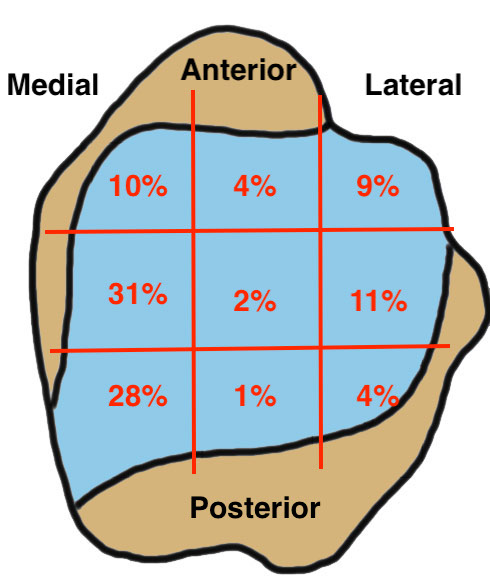

- 9 grid system

- 28% posteromedial

- 31% centromedial



Talus OCL



Approaches



Vumedi approaches to talus OCL



Arthroscopy Approaches



Anterolateral / anteromedial

- anterior 50 - 60% lesions



Posterolateral / posteromedial

- prone

- posterior lesions



Open approaches



Lateral lesion

- more anterior lesions accessible with anterolateral approach

- ± Anterior plafond osteotomy ± Chaput anterolateral osteotomy if large



Medial lesion

- often more posterior

- may require medial malleolar osteotomy



Medial Malleolar osteotomy



Predrill for screws

Arthrotomy / image guidance

Posterior homan to protect tibialis posterior

Initial osteotomy with saw / complete with osteotome



Surgical technique PDF



Vumedi surgical technique video



MM osteotMM osteotMM osteotomy



Microfracture



Indications



Chondral lesion < 1 cm diameter



Technique



Youtube surgical technique video microfracture



Arthroscopy techniques microfracture talus



mfxmfxm#



Talus Chondral LesionTalus OCD Bleeding



Results



Outcome



Fu et al Orthop J Sports Med 2022

- 5 year follow up of talus microfracture in 355 patients

- reoperation rate 9%



Size



Ramponi et al AJSM 2017

- systematic review of microfracture for talus lesions

- better results with diameter < 1 cm



PRP / HA



Huang et al Foot Ankle Surg 2024

- systematic review of PRP + microfracture for ostechondral lesions talus

- evidence that use of PRP improves outcomes



Dilley et al BMC Musculoskeletal Disorder 2022

- systematic review evaluating hyaluronic acid + microfracture for ostechondral lesions talus

- evidence that use of HA improves outcomes



Weight bearing



Song et al J Foot Ankle Surg 2021

- systematic review of early v delayed weightbearing after microfracture talus

- no evidence of improved outcomes with delayed weightbearing



Ankle Scope OCD Grade 4Ankle Scope OCD Abrasion



Matrix autologous cartilage implantation (MACI)



Technique



Vumedi surgical technique video MACI



Autologous chondrocytes on collagen scaffold

2 step procedure



Results



Hu et al Arch Orthop Trauma Surg 2023

- meta-analysis of 23 studies and 460 patients undergoing MACI

- success rate 89%



Autologous membrane induced chondrogenesis (AMIC)



Technique



Autologous Membrane Induced Chondrogenesis (AMIC)

- microfracture with collagen patch (Chondrogide) secured with fibrin glue



Vumedi surgical technique AMIC talus



Arthroscopy techniques AMIC talus



Results



Wen et al J Foot Ankle Surg 2021

- systematic review of microfracture v augmented microfracture

- 10 studies and 500 patients with talar cartilage defects

- evidence of superior results of augemented microfracture



Minced Juvenile Allograft Cartilage Transplantation



Technique



Vumedi surgical technique minced cartilage talus



Arthroscopic techniques minced cartilage talus



Minced autograft or allograft cartilage fragments

Secure with fibrin glue



Results



Coetzee et al Foot Ankle Int 2013

- 24 ankles

- 78% good or excellent results



Osteochondral autograft transplantation (OATS / mosaicoplasty)



Technique



Vudmedi arthroscopic mosaicplasty video

Donor cartilage taken from knee NWB surface



Results



Shimozono et al KSSTA 2018

- systematic review of OATS

- 11 studies and 500 ankles

- 5/500 (1%) deemed failures

- donor site complication 4%

- reoperation rate 6%



Osteochondral Allograft



Technique



Vumedi surgical technique osteochondral allograft video



Arthroscopic techniques osteochondral allograft



Talus MosaicplastyTalus Mosaicplasty 1Talus Mosaicplasty 2



Results



Pereira et al J Foot Ankle Surg 2021

- systematic review of 191 patients

- graft survival 87%

- reoperation rate (arthroscopic debridement / hardware removal) 22%
