Spinal Braces

Braces



1.  Motion Control



2.  Spinal Realignment



3.  Trunk Support



4. Weight Transfer



Soft Collar



Cheap & Comfortable

- ineffective

- allows 70% Flexion Extension / 80% Rotation / 90% Lateral bend



Philadelphia Collar



Better than soft collar but less comfortable

- allows 35% Flexion Extension / 40% Rotation / 60% Lateral bend

- excellent immobility in acute situation when combined with sandbags & forehead tape



SOMI Brace



Sterno-Occipital Mandibular Immobilizer

- effective control C1/2 & C2/3

- allows 30% Flexion Extension / 30% Rotation / 60% Lateral bend



Yale Brace



Cervico-Thoracic Brace

- Philadelphia Collar but with chest extension & strap

- best of conventional braces

- allows 10% Flexion Extension / 50% Rotation / 25% Lateral bend



Halo-Thoracic Brace (HTB) / Halo Vest



Indication



External immobilization for upper cervical spine injuries

- occipital condyle fractures

- stable C1 / atlas fractures

- C2 fractures include odontoid fractures

- C1 C2 instability



Less effective for subaxial spine



Contra-indications



Elderly



Horn et al J Neurosurg Spine 2006

- 53 patients > 70 treated with HTB

- 6 patients (14%) died of respiratory distress related to HTB



Majercik et al J Trauma 2005

- compared HTB in 129 old patients (average age 80)

- 289 young patients (average age 40)

- mortality rate 40% in old versus 2% in young



Effectiveness



Restricts atlanto-axial flexion / extension by 75%



Banat et al Eur J Trauma Emerg Surg 2022

- systematic review of HTB in pediatric population

- high success rates with only minor complications

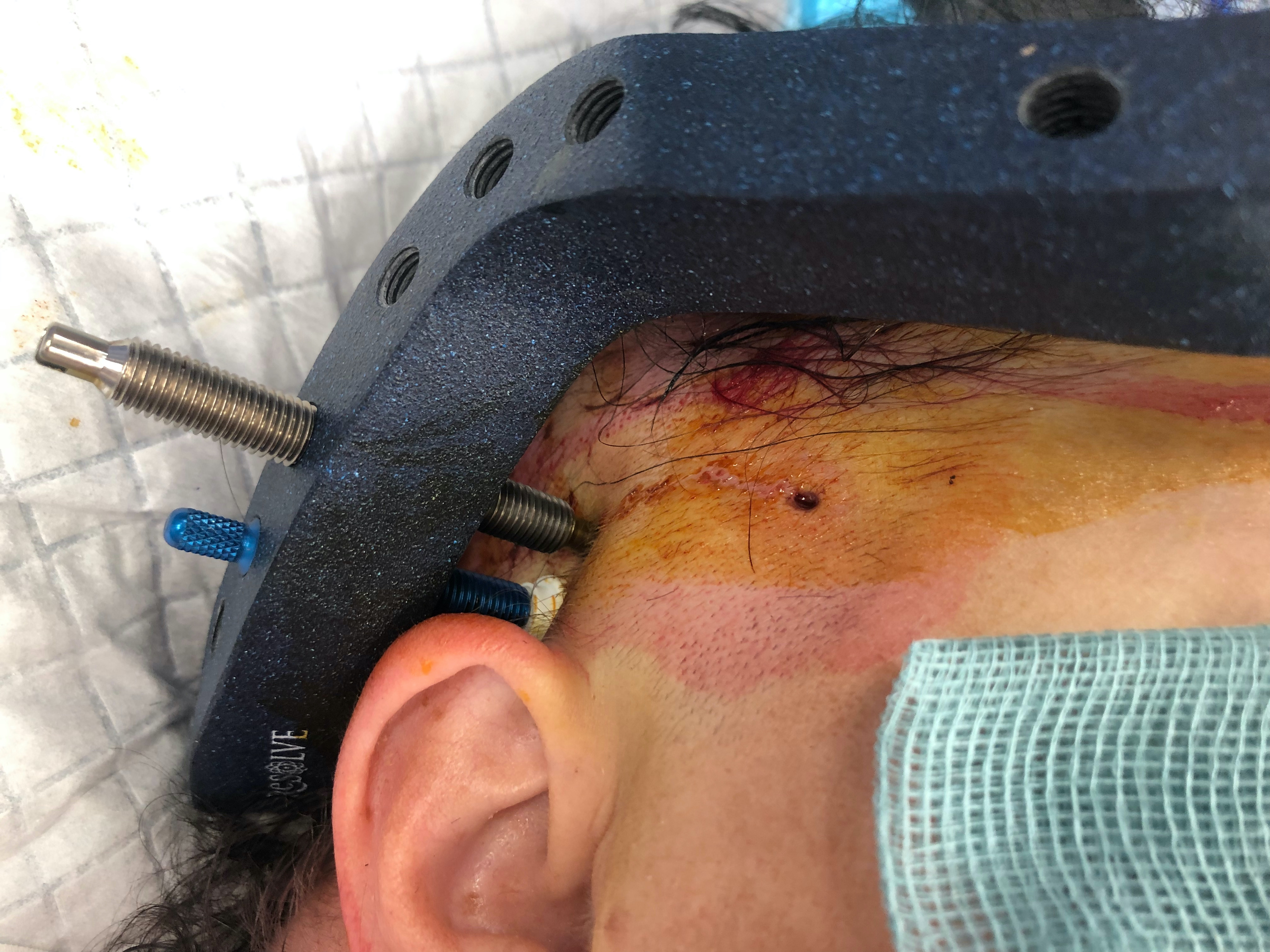

Pin safe zones



Frontal cranium

- above lateral 2/3 of the orbital rim / eyebrow

- 1 cm above top of ears

- medial to this zone is supraorbital nerve and frontal sinus



Technique



Halo-thoracic brace technique

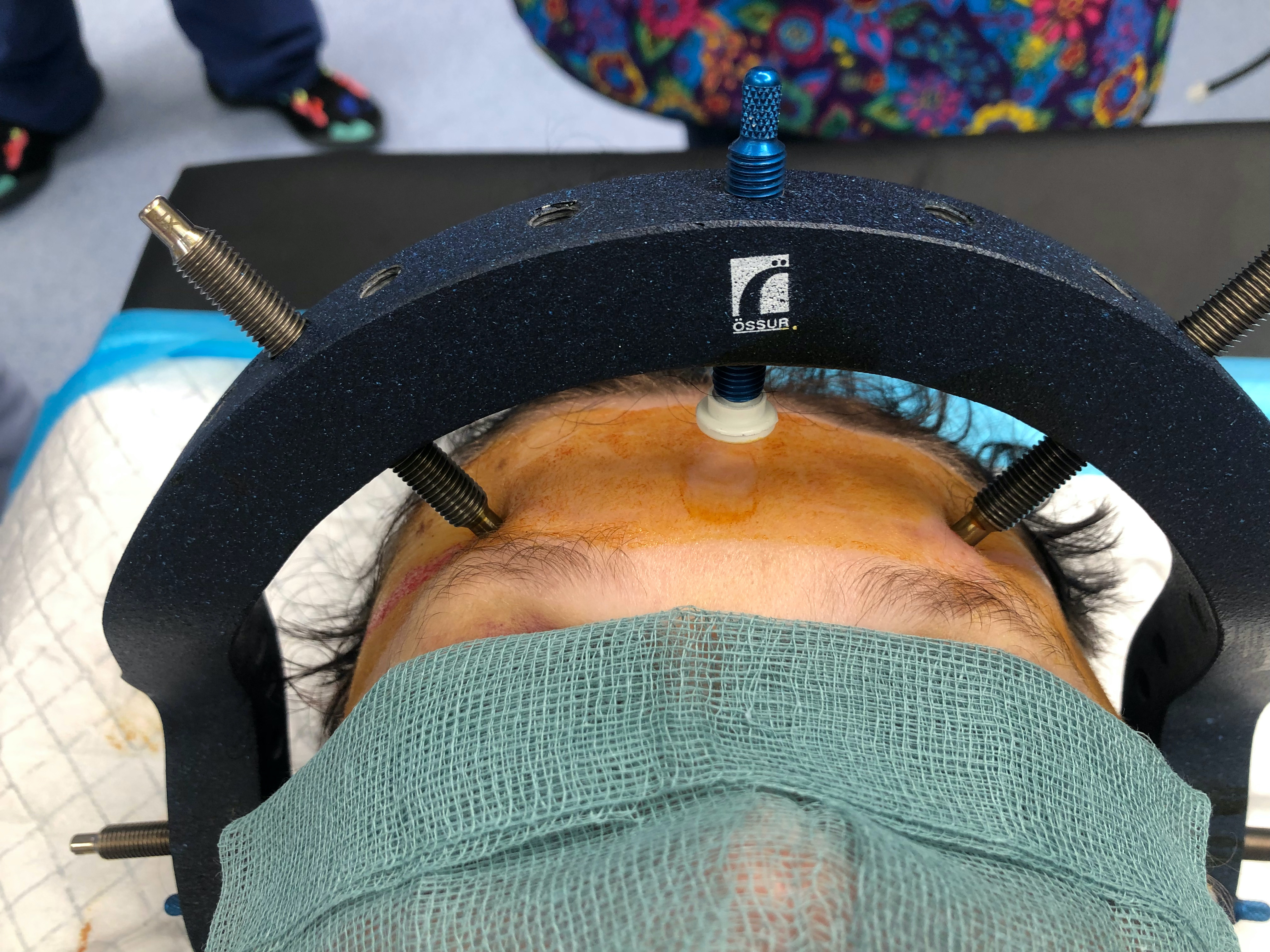

Halo vest 1Halo vest 2

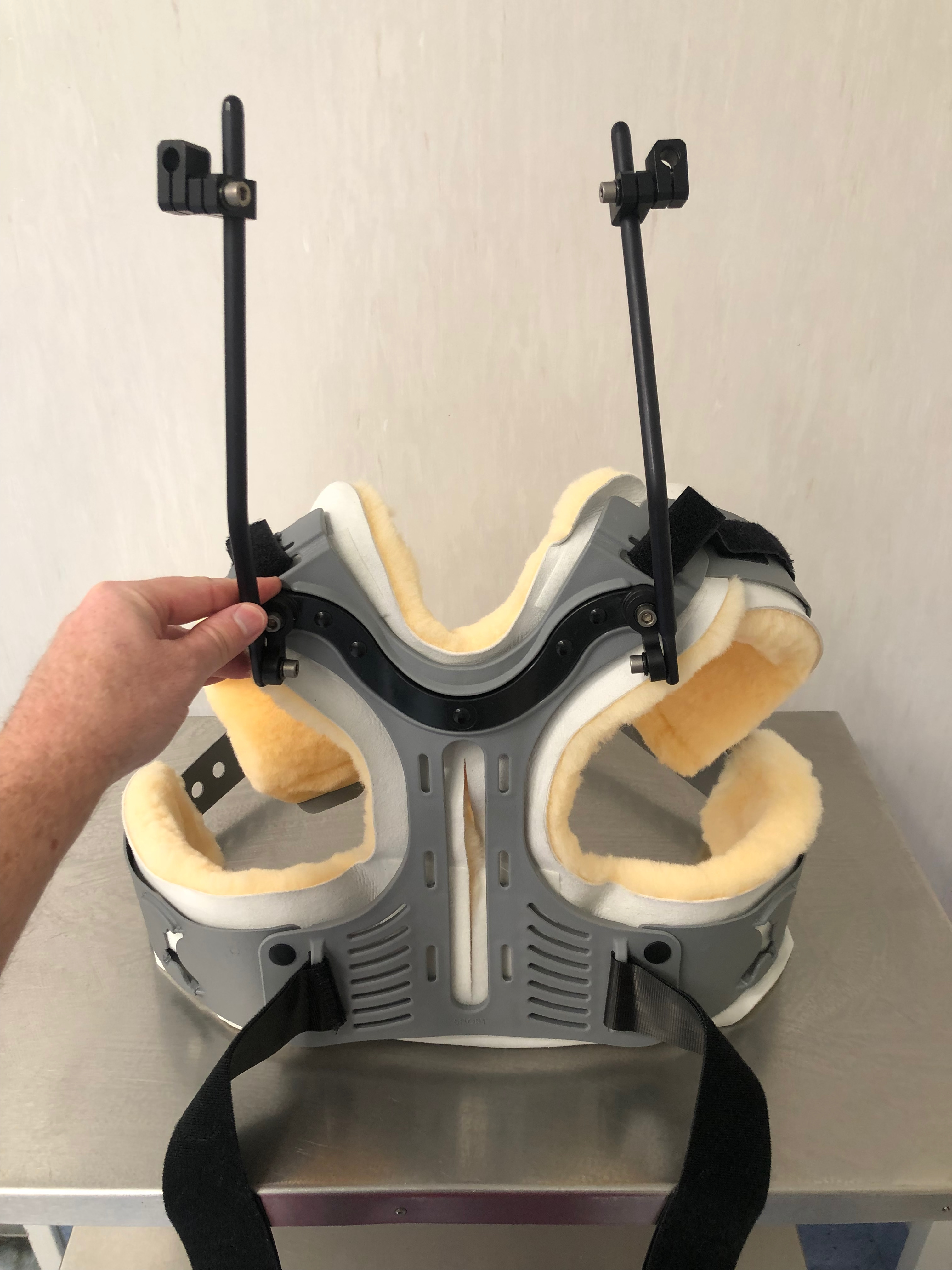

Vest

- roll patient on side in controlled manner

- fit posterior chest brace

- roll back, apply anterior chest brace, tighten

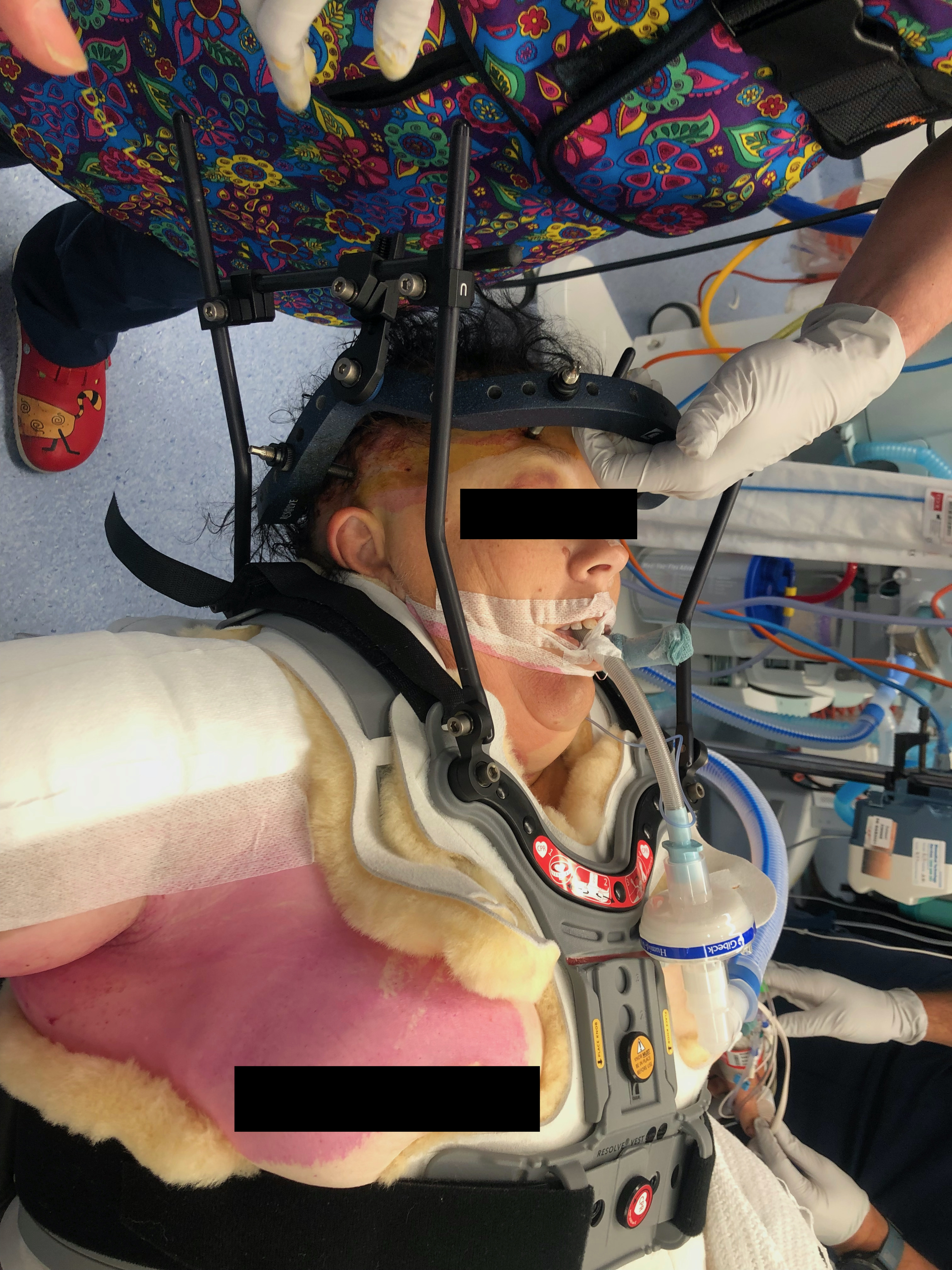

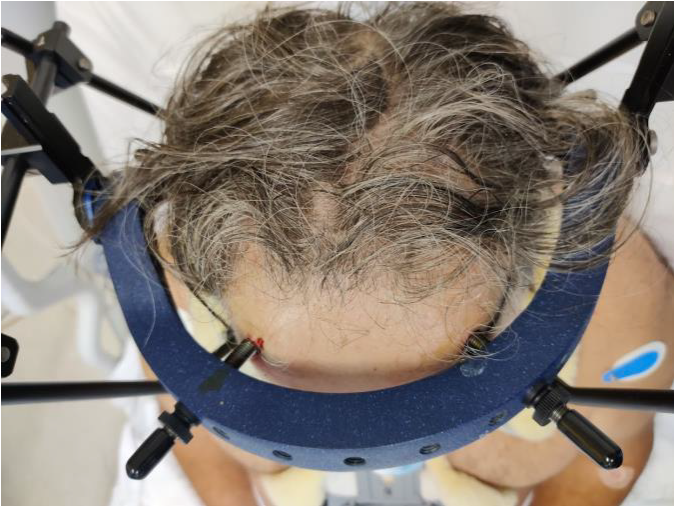

HTB 1HTB 3HTB 4



Halo

- size halo around maximum diameter of skull

- should have 1 - 2 cm gap from skull

- sits 1 cm above pinna and eyebrows

- 4 pins

- 2 above pinna, 2 above upper and outer eyebrow

- can shine torch through holes to mark sites of pins

- local anesthetic to sites

- must close eyes before supraorbital pins to avoid problems closing eyes

- tighten to 8 pounds / square inch

- often come with snap lock pins

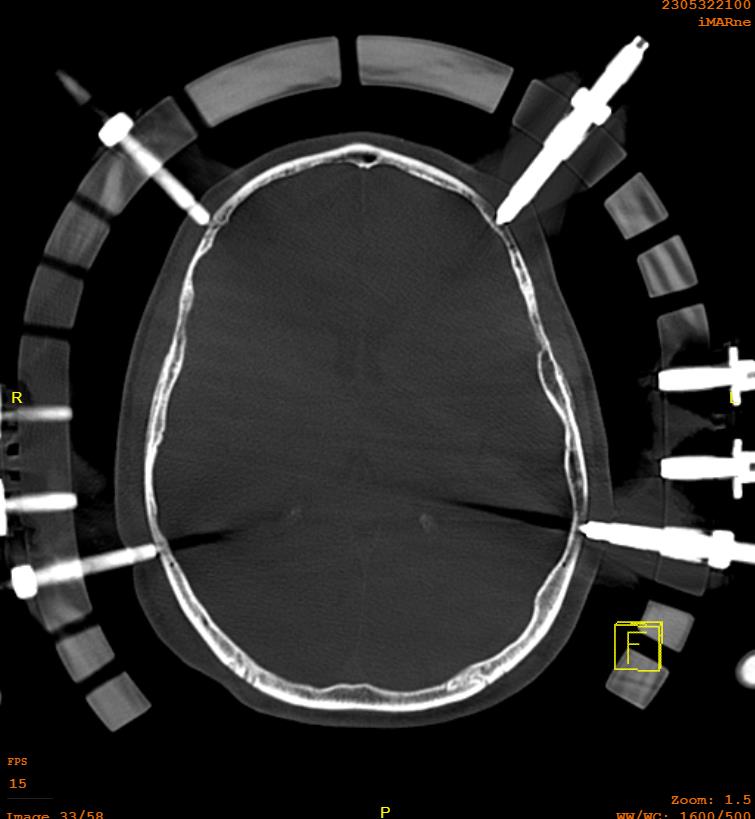

HTB XrayHalo CT



Complications



Malnik et al Br J Neurosurg 2021

- 67 patients mean age of 52 treated with HTB

- 25% pneumonia initial hospital stay

- 22% loose pins

- 18% pin site infections

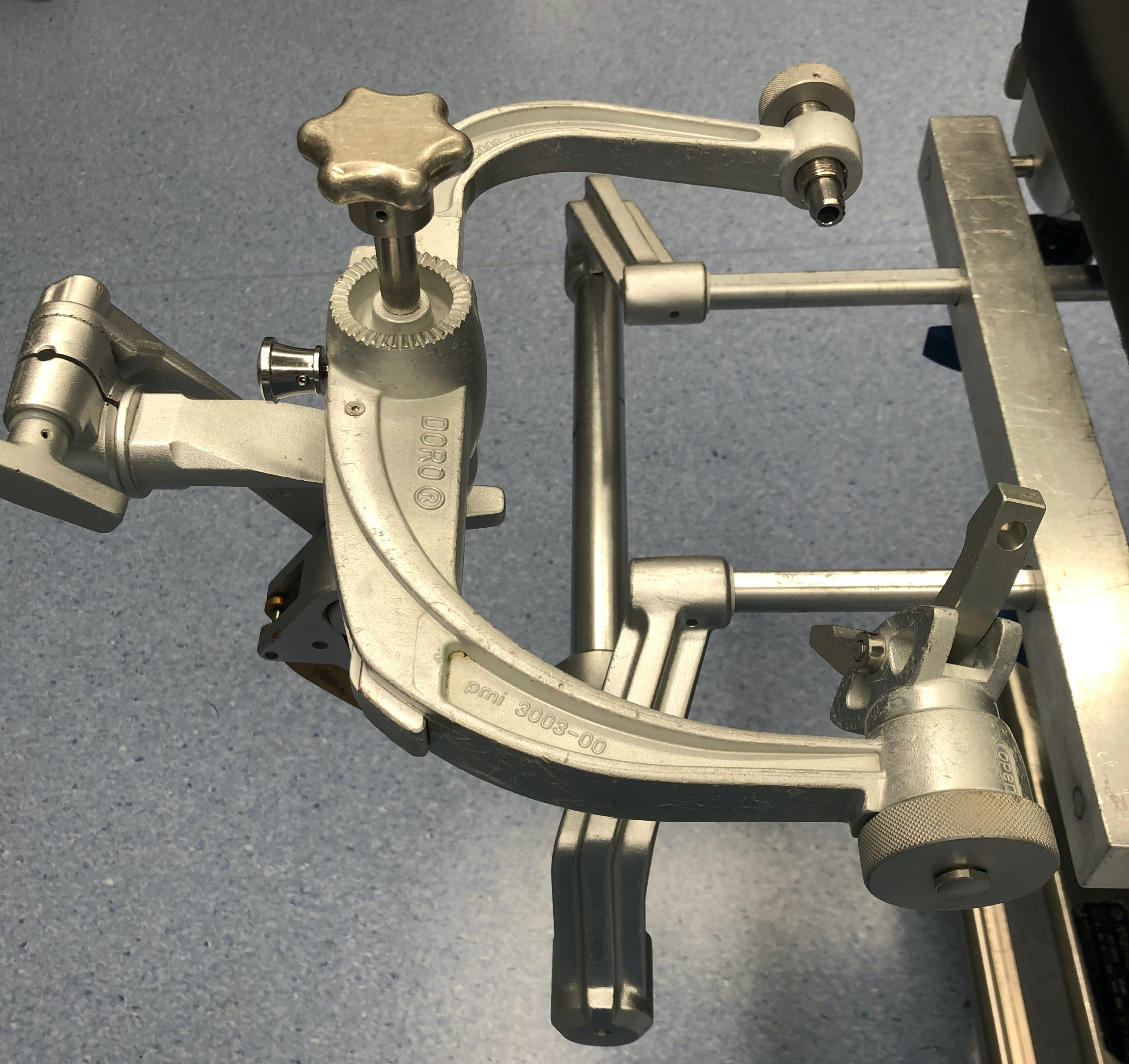

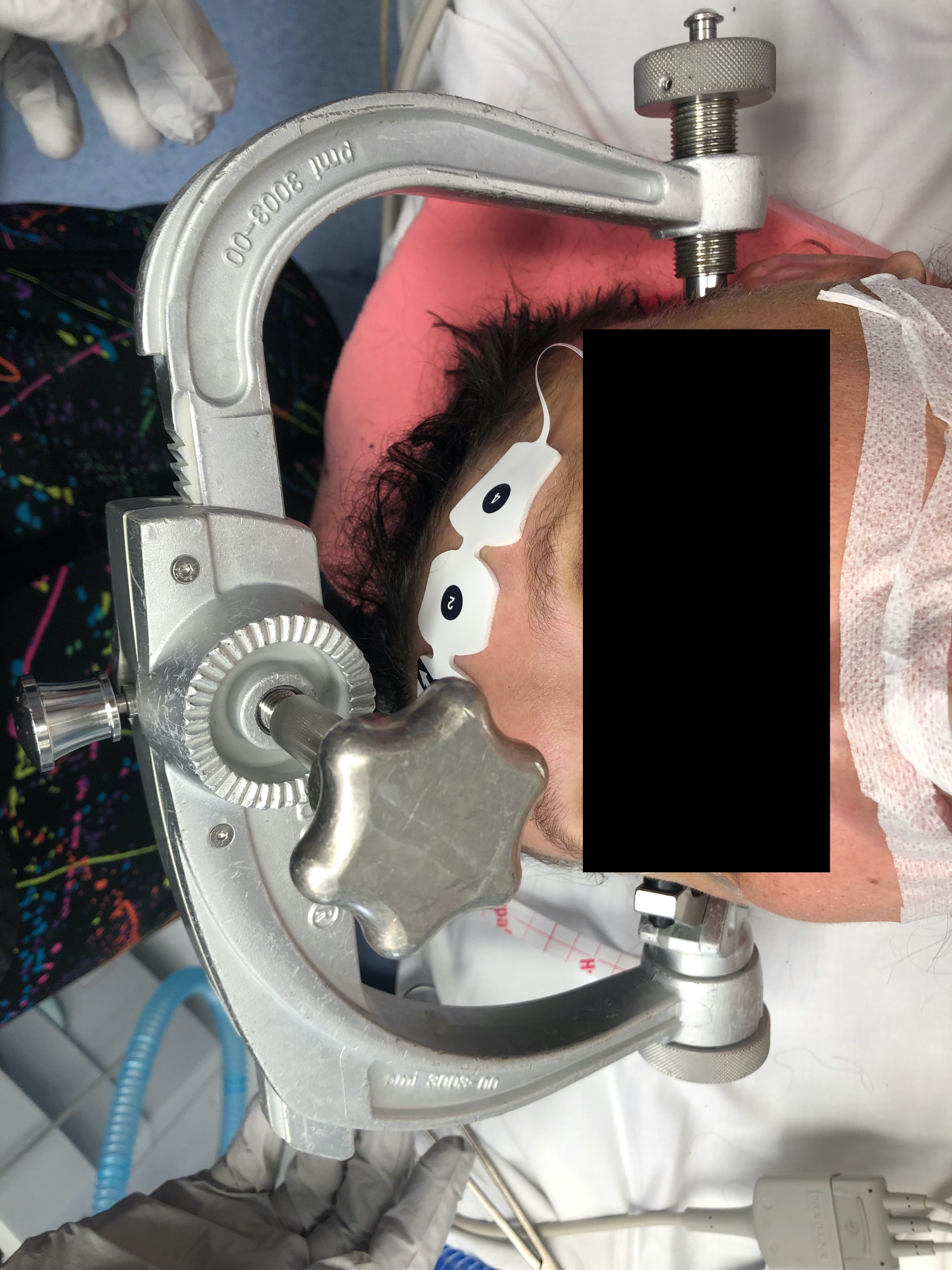

Gardner Wells Tongs

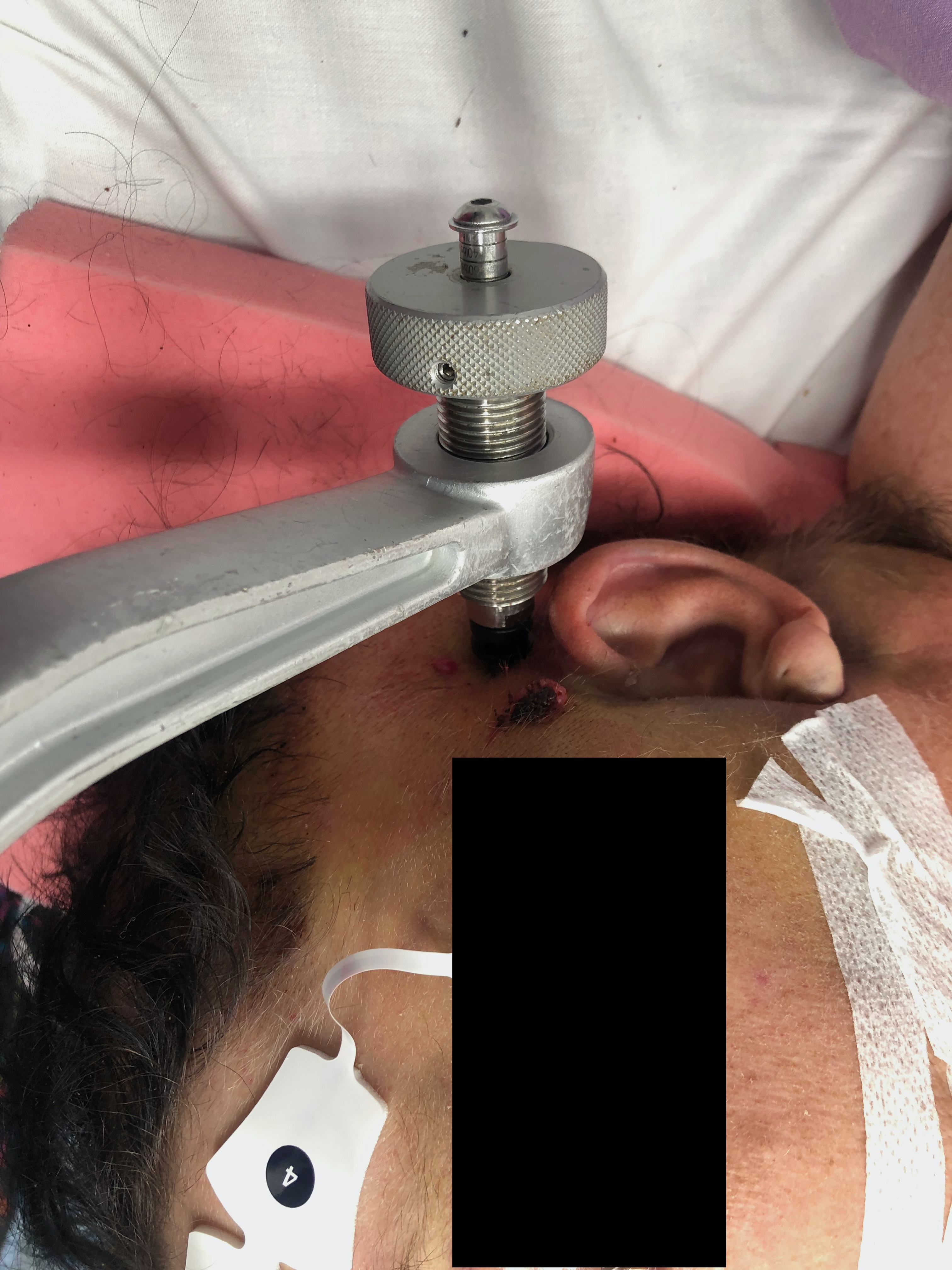

Gardner wells tongs 1Gardner wells tongs 1Gardner wells tongs 3



Indications



Cervical traction - i.e. rotatory atlanto-axial subluxation

Reduction of acute facet joint subluxations / dislocations

Patient positioning during spine surgery

Skeletal traction during deformity correction such as scoliosis surgery



Technique



Pin insertion sites as per HTB



Results



Saleh et al J Spine Surg 2018

- complication rate generally low

- superficial infection, pin loosening, asymmetrical pin positioning

- major complication such as skull perforation, brain abscess rare



Thoraco - Lumbar Orthosis / TLSO



Types of TL Orthosis

1. TLSO

2. Three point brace

3. Moulded Body Jacket



CTLSO / Milwaukee



TLSO with neck brace



For lesion with apex above T8
