Distal Radial Malunion

Definition



Unacceptable position of radius post fracture



1.   Radial Shortening > 4mm at DRUJ

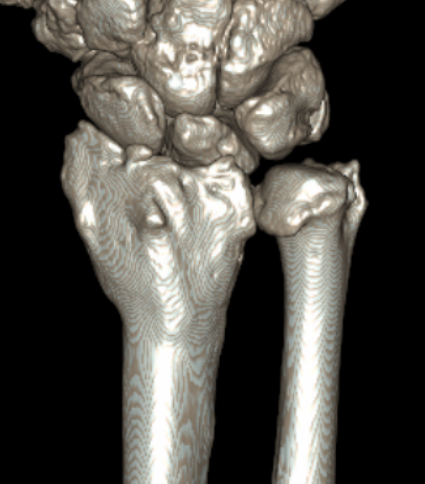

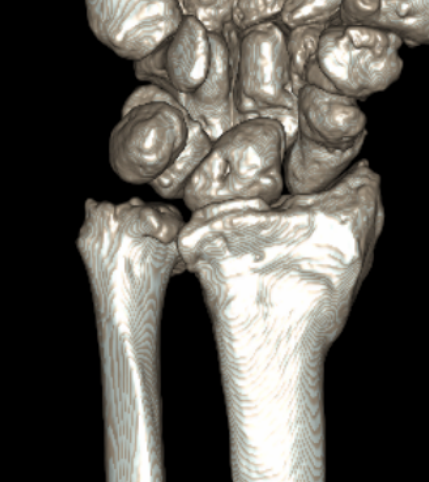

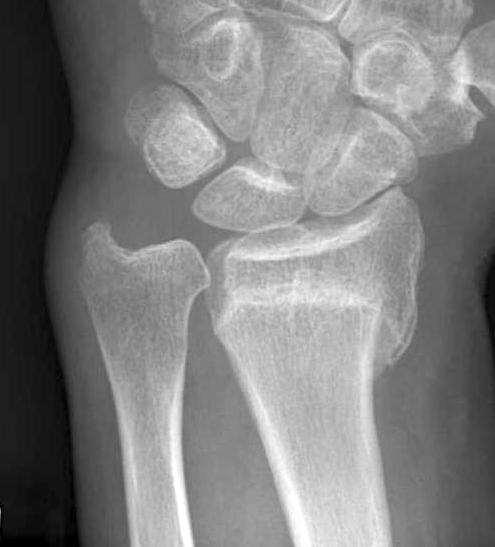

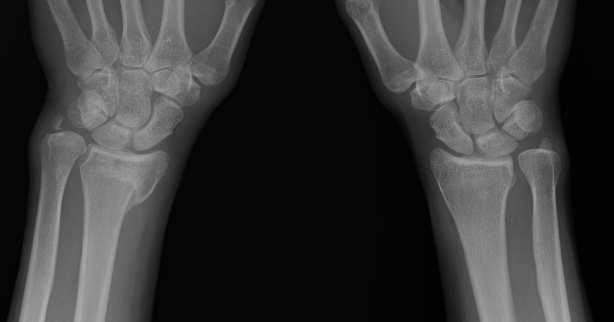

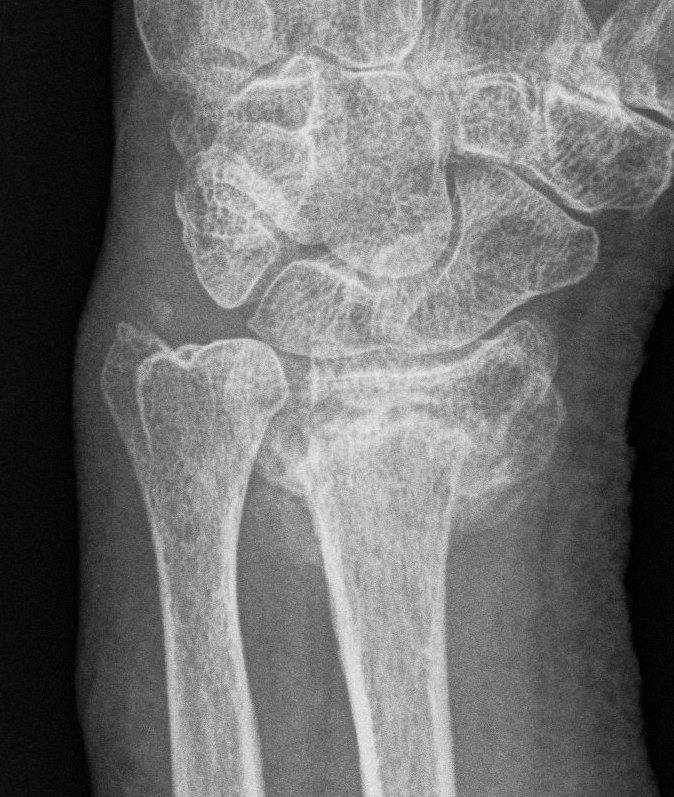

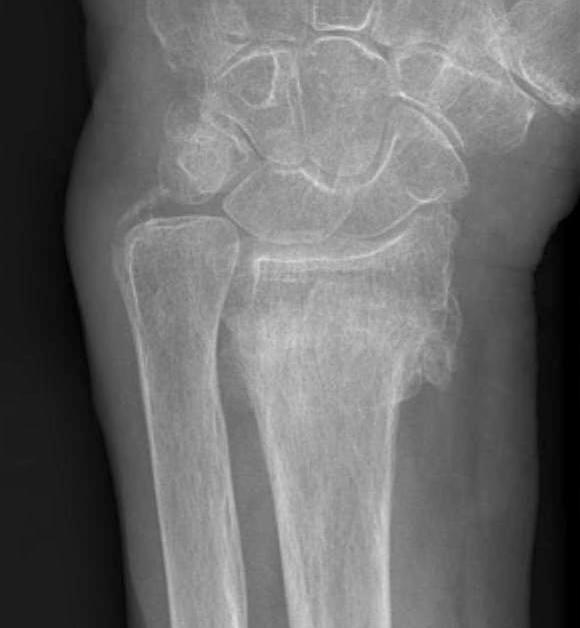

Radial Malunion Shortening



2.   Radial Inclination < 15°

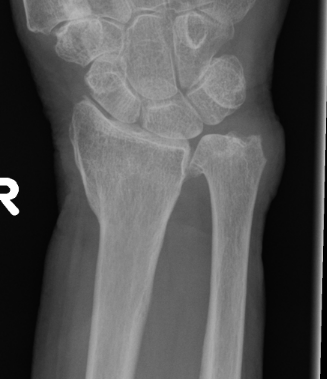

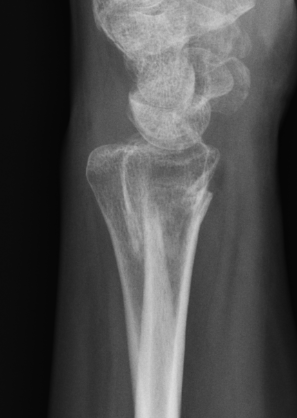

Distal Radial Malunion APRadial Maluion Loss Radial Inclination



3.   Radial Tilt

- > 15° Dorsal

- > 20° Volar

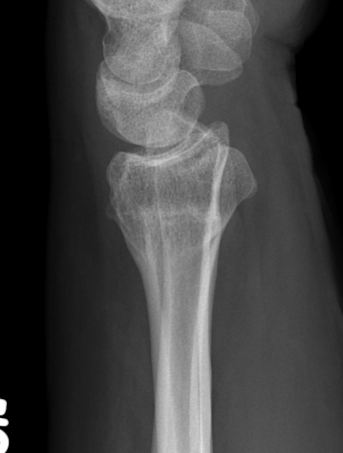

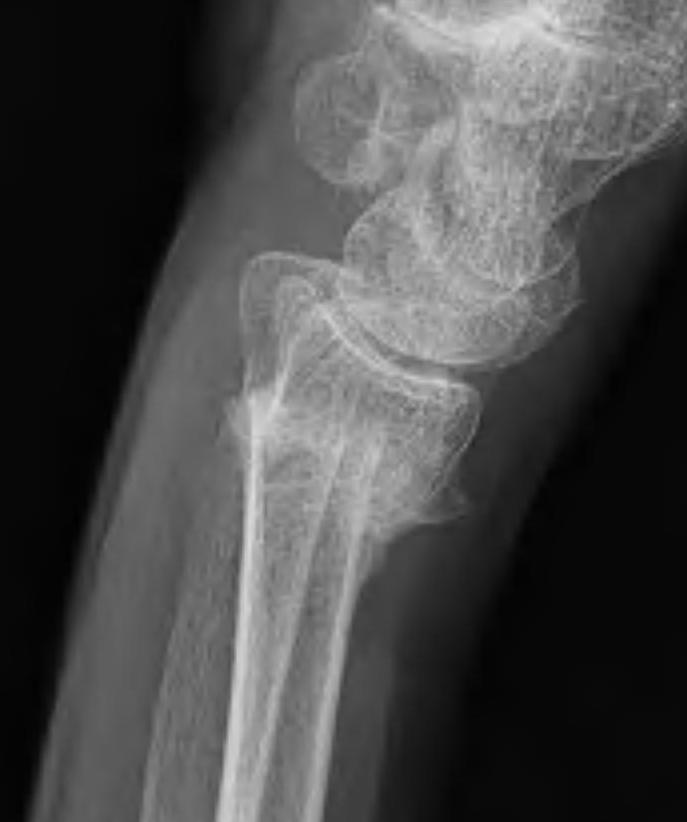

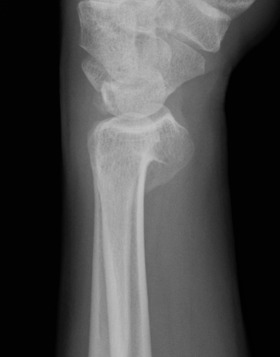

Distal Radial Malunion Dorsal Tilt

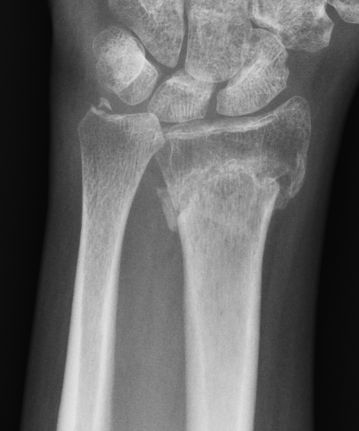

4.   Articular incongruity > 2mm

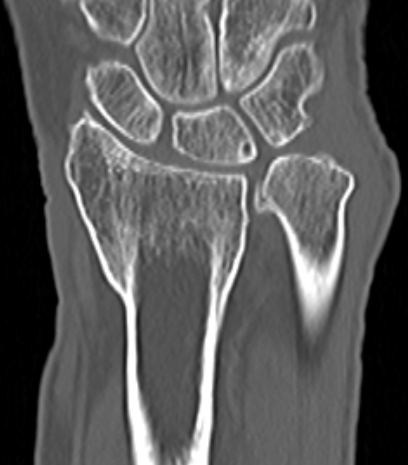

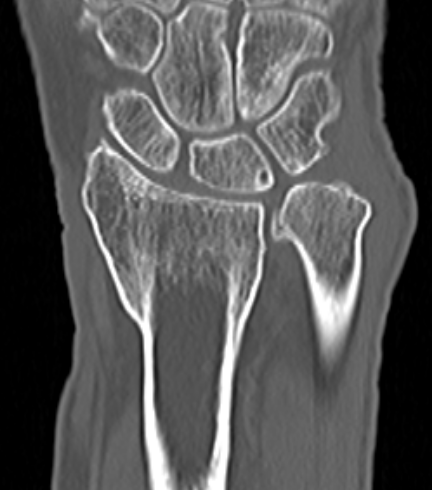

Distal Radial Step OADistal Radial Step OA 2

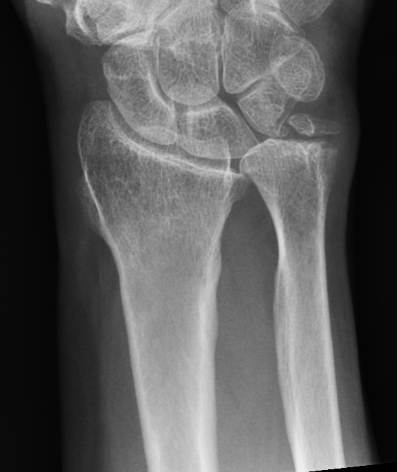

5.  Positive ulna variance > 4mm

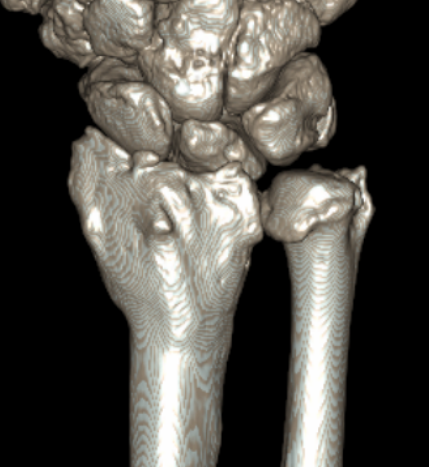

Radial Malunion



Biomechanics



Dorsal Tilting



1.  Increases dorsal load

- maintain midcarpal alignment



2.  DISI / CIND

- midcarpal instability

- get DISI pattern without interosseous ligament disruption

- may be increased in patients with ligamentous laxity



Radial shortening



1.  Alter kinematics of DRUJ



2.  Ulnocarpal abutment



Clinical Presentation



DDx Pain

- synovitis

- RC OA

- ulnocarpal abutment

- DISI

- TFCC tear

- RSD



Functional Loss of ROM

- DF loss > PF

- supination loss > pronation

- weak grip



Investigation



PA film in neutral

- wrist neutral

- elbow & shoulder at 90°



5 Measurements



1.  Radial inclination

2.  Radial length

3.  Ulnar Variance

4.  Radial Tilt

5.  Radial Shift

- radial Styloid from longitudinal axis

- compare to contralateral side



NHx Painless malunion



No evidence for development OA



Operative Management



Indications



Pain

Disability



Contraindications



OA in RCJ / carpus

Osteoporosis

CRPS



Timing



Early > late results

- Jupiter 1996

- < 2/12 since fracture best



However, period of non operative treatment is often desirable



Surgical Options

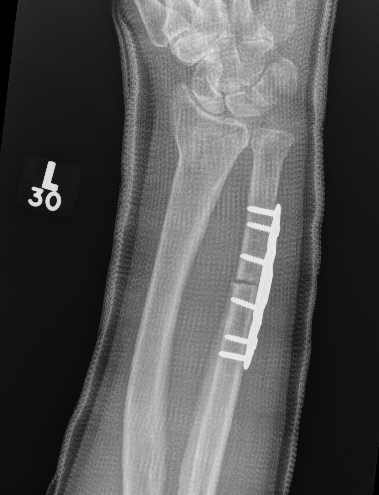

1.  Ulna shortening

2.  Radial osteotomy

3.  Radial osteotomy + ulna shortening

4.  Radial osteotomy + ulna ablation

5.  Intra-articular ostetomy

6.  Soft tissue releases



Ulnar Shortening



Indications

- short radius, positive ulna variance

- acceptable alignment distal radius

- acceptable DRUJ articular surface



Distal Radial Osteotomy



Indications

- positive ulna variance / shortening

- dorsal tilt

- DRUJ reducible by radial osteotomy

- acceptable DRUJ articular surface



Options

- dorsal opening wedge

- volar opening wedge

- volar closing wege

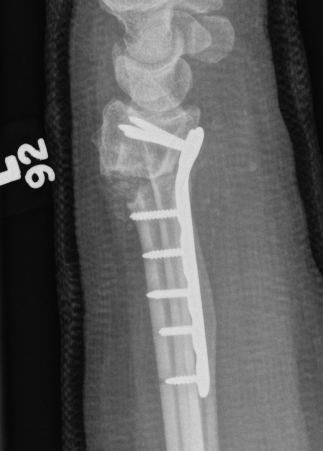

Dorsal Opening wedge osteotomy

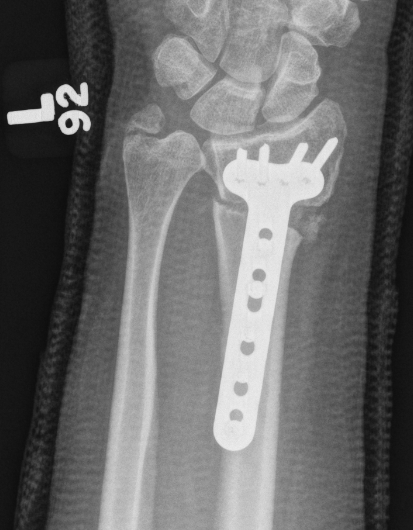

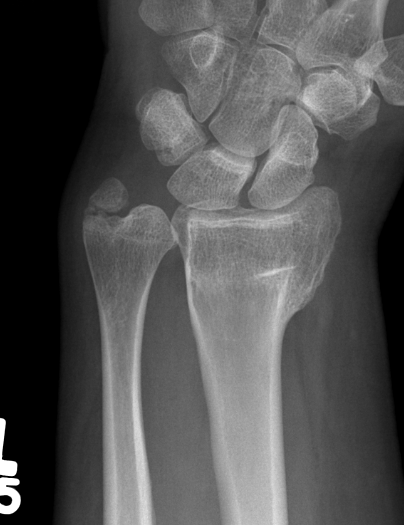

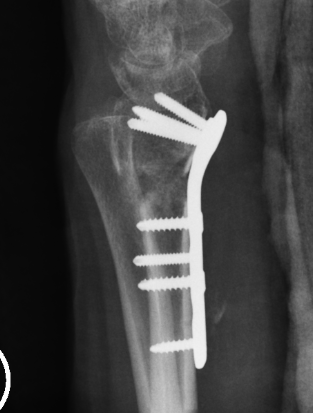

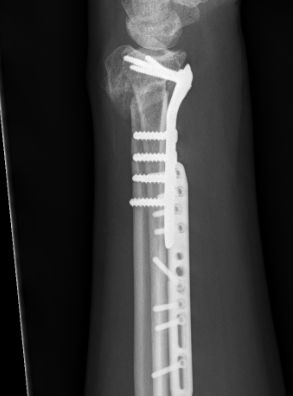

Distal Radial Malunion Dorsal OsteotomyDistal Radial Malunion Dorsal Osteotomy



Advantage

- lengthens the distal radius

- may be easier to correct in coronal and sagittal plane

- this makes it the most popular



Disadvantage

- dorsal approach / dorsal plate (extensor tendon issues)

- usually requires bone graft

- increased instability

- increased risk of non union



Template

- xray normal wrist

- calculate correction / size of bone graft



Dorsal opening wedge

- 3rd dorsal compartment

- expose distal radius

- can use half pins to control distal fragment

- check osteotomy site with II (metaphyseal, site of deformity)

- protect structures with homan retractors

- osteotomy with microsagittal saw

- correct radial articular surface in sagittal & coronal planes

- trapezoidal bi-cortical iliac crest autograft / synthetic graft

- dorsal locking plate

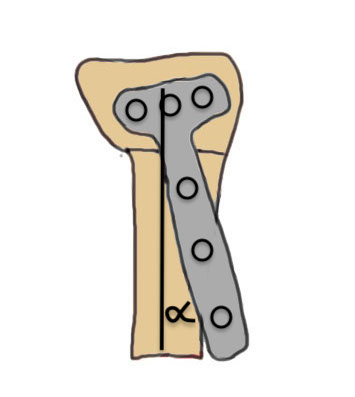

Volar opening wedge

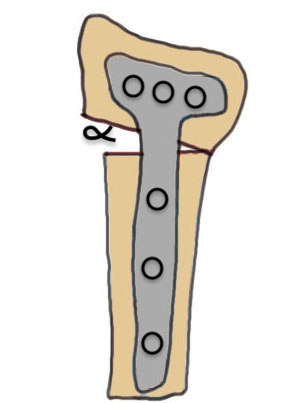

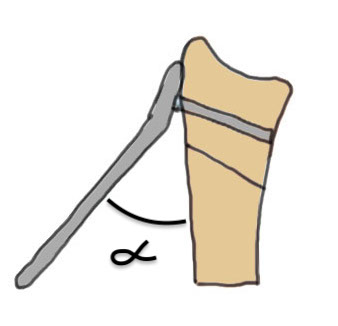

Radial Malunion Volar Opening Wedge OsteotomyRadial Malunion Volar Opening Wedge Osteotomy Lateral



Advantage

- volar approach

- apply volar plate to gain correction



Disadvantage

- require dorsal approach to bone graft



Technique

- bed of FCR approach

- protect radial with homans, osteotomy

- apply volar plate

- then either leave gap dorsally or

- second dorsal approach to insert bone graft

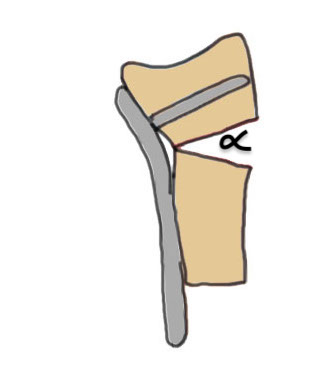

Closing wedge osteotomy



Advantages

- volar approach  / plate better tolerated

- nil bone graft, direct bone to bone contact



Disadvantage

- can shorten radius / may need to perform ulna shortening as well

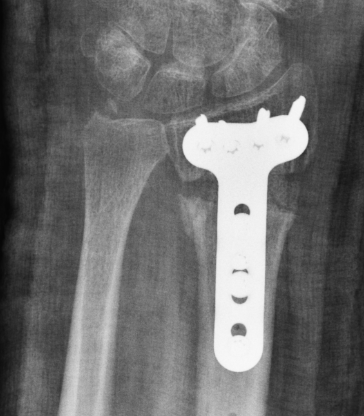

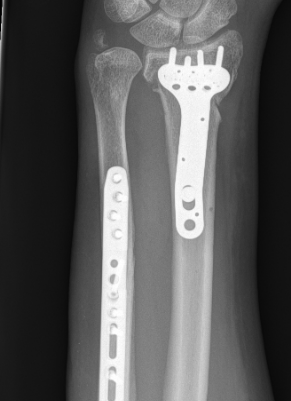

Distal Radial Osteotomy & Ulnar Shortening



Indications

- unacceptable radial alignment

- DRUJ not reduced by radius osteotomy

- acceptable DRUJ articular surface



Distal Radial Osteotomy & Ulnar Ablation



Indications

- unacceptable radial alignment

- DRUJ irreducible by radial osteotomy

- unacceptable DRUJ articular surface



Options

- Bower's hemiresection

- Darrach's

- Suave-Kapandji



Intra-articular Osteotomy



Issues



A.  Scaphoid facet malunion

- intra-articular osteotomy

- radial styloidectomy

- proximal row carpectomy



B.  Lunate facet malunion

- osteotomy

- radio-lunate fusion



C.  Global wrist involvement

- early intra-articular osteotomy

- total wrist fusion



D.  Anterior / Posterior rim malunion

- simple bone resection



Soft Tissues Releases



Options



DRUJ volar capsulotomy

- restores supination



DRUJ dorsal capsulotomy

- restores pronation



+/-  Pronator Quadratus release
