Taylor Spatial Frame

Taylor Spatial FrameTSR Clinical Photo 2



Indications



Deformity correction



TSF Deformity Correction Proximal Tibial Fracture Preop



Technique



Apply proximal and distal rings

- choose size

- 2 cm from skin all around

- leg will often swell

- most often compression is posterior

- can use an open ring proximally to aid knee flexion



Apply proximal rings

- Centre / Master Tab anterior to tibial crest

- important for calculations



Apply Distal ring



6 x adjustable struts

- come in 3 lengths (short / medium / long)

- need to ensure that are long enough for any correction

- otherwise will have to adjust strut later

- numbered 1 - 6

- no 1 always to right of proximal strut

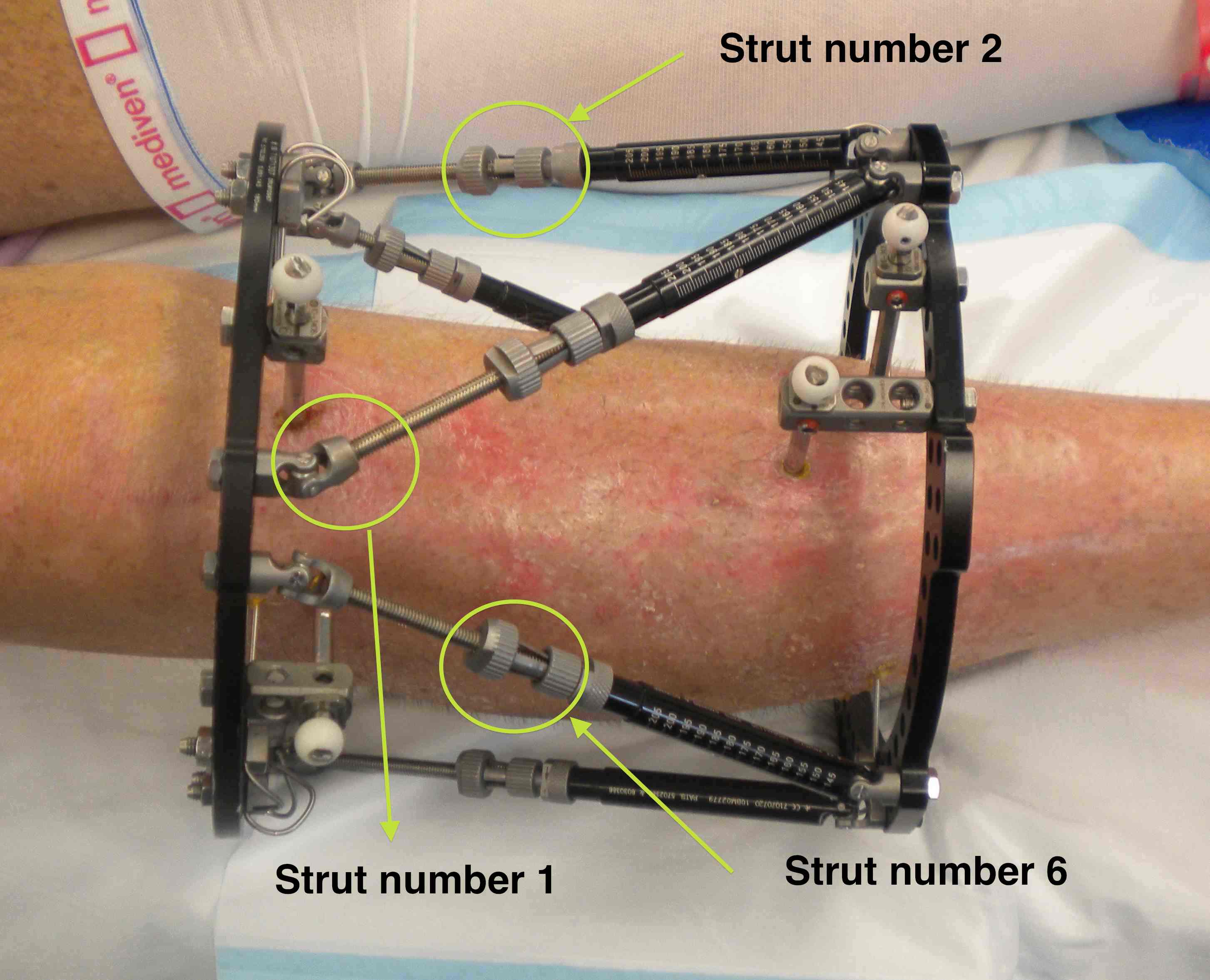

TSR Clinical Photo Struts



Intra-operative Correction

- can perform

- new computer program

- struts can be of different lenths

- i.e. the rings do not have to start perpendicular to shaft



Record numbers of each strut

- important for computer calculation

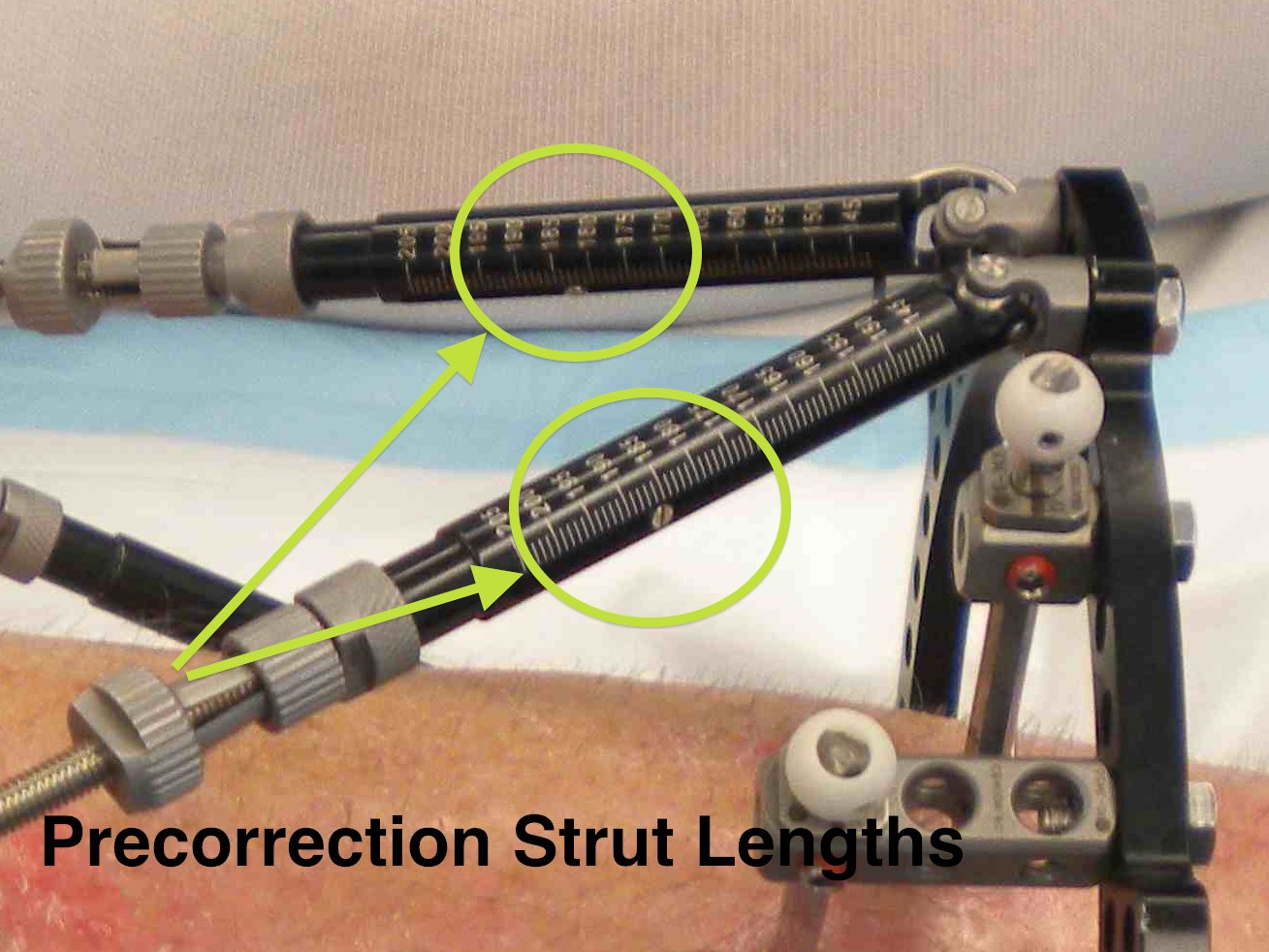

TSR Strut Measurements Pre Correction



Post operative Xray Measurements



Xray of entire tibia and rings

- xray centred on proximal tab of proximal ring

- AP and Lateral all in one film

- the entire diameter of the rings must be on the film



Set reference fragment



Proximal tibia

- usually the proximal fragment is reference fragment

- distal fragment is moving fragment

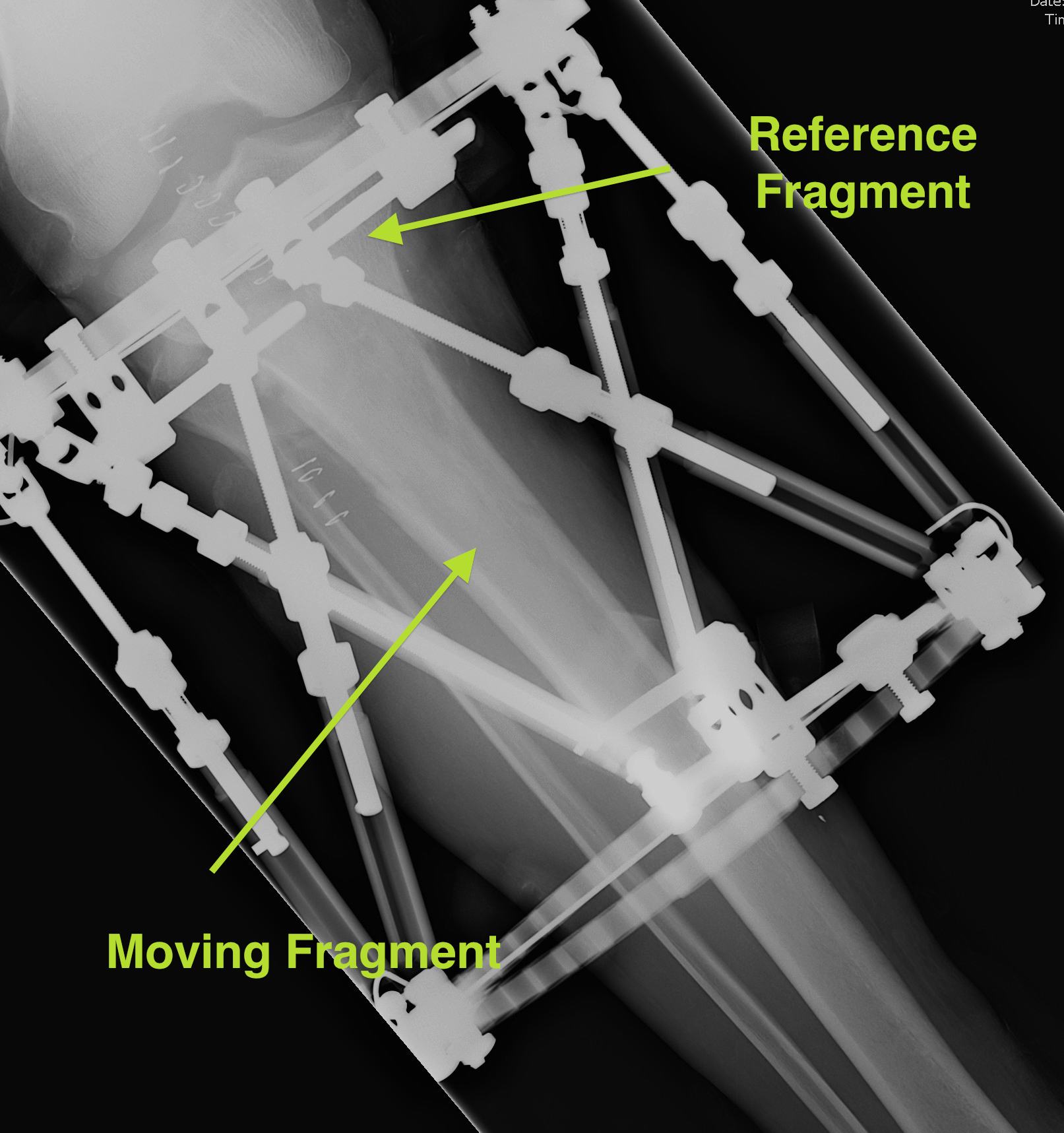

TSF Reference and Moving Fragment



Opposite for Distal Tibial Fractures



Set Origin / Corresponding Point on AP and Lateral



Origin

- reference fragment



Corresponding point

- on moving fragment

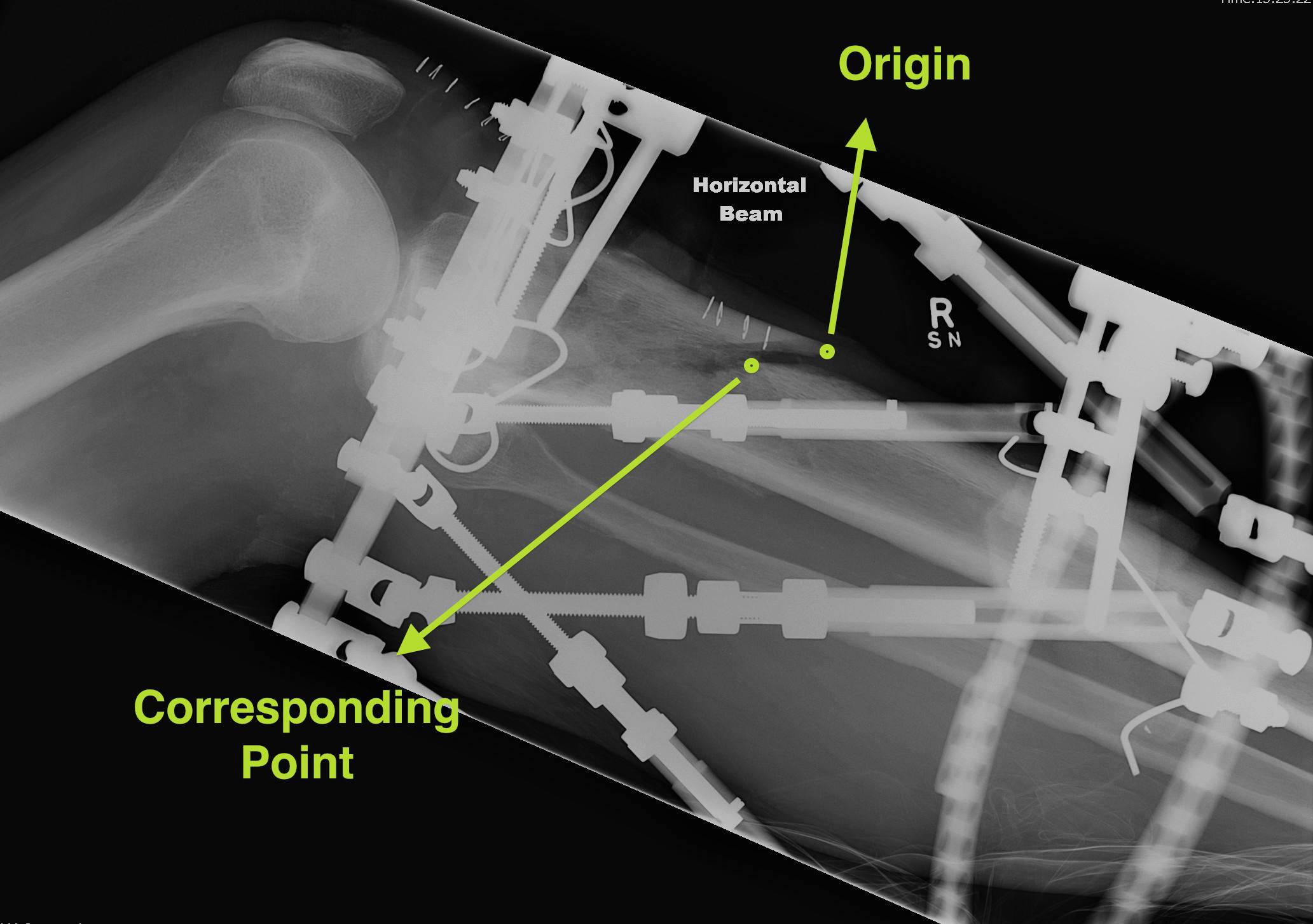

TSF Origin and Corresponding Point



Measure AP and Lateral View Axial Frame Offset



The tibia is not in the centre of the rings

- usually anterior

- need to tell computer where the proximal fragment is in reference to the rings

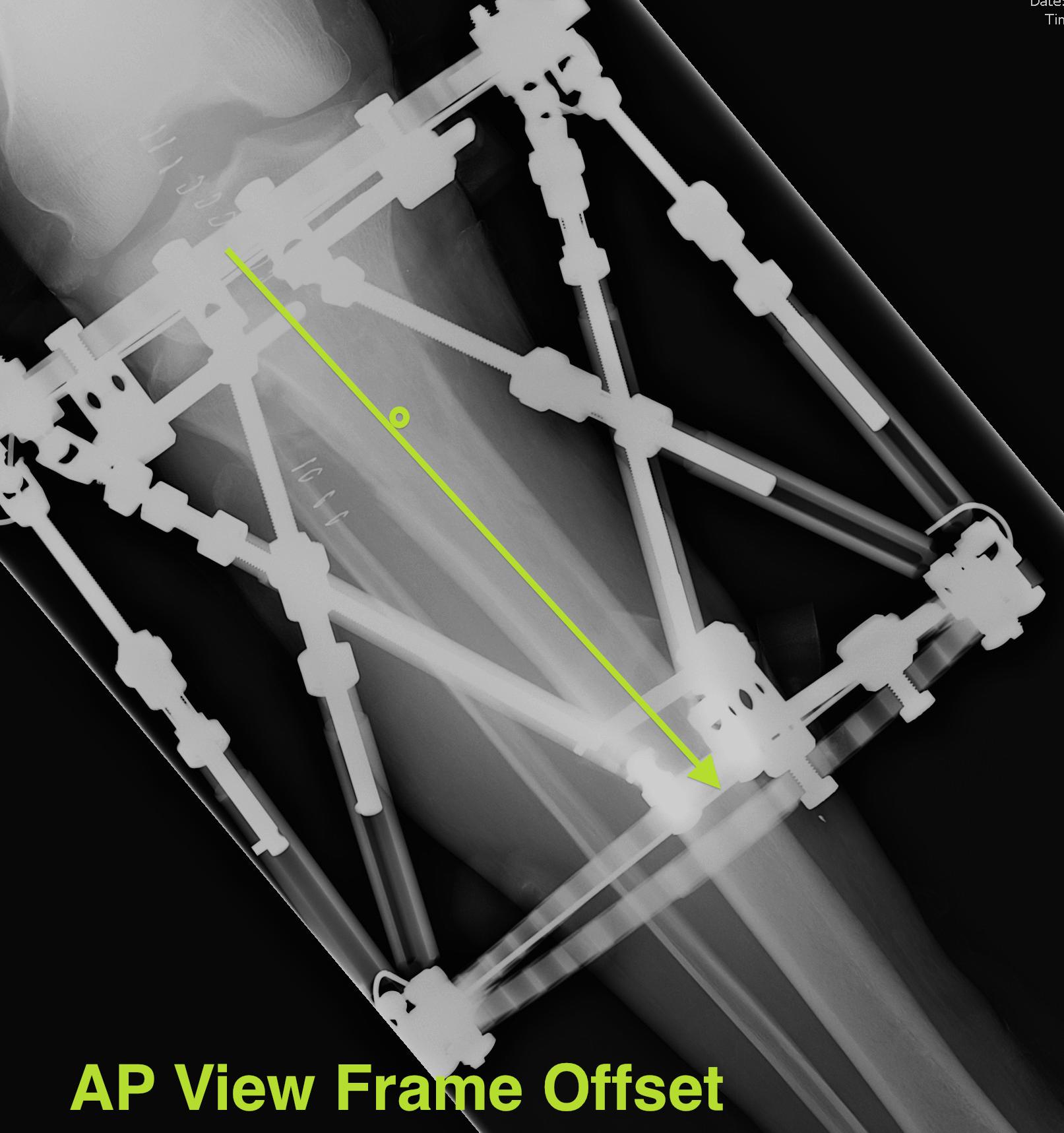

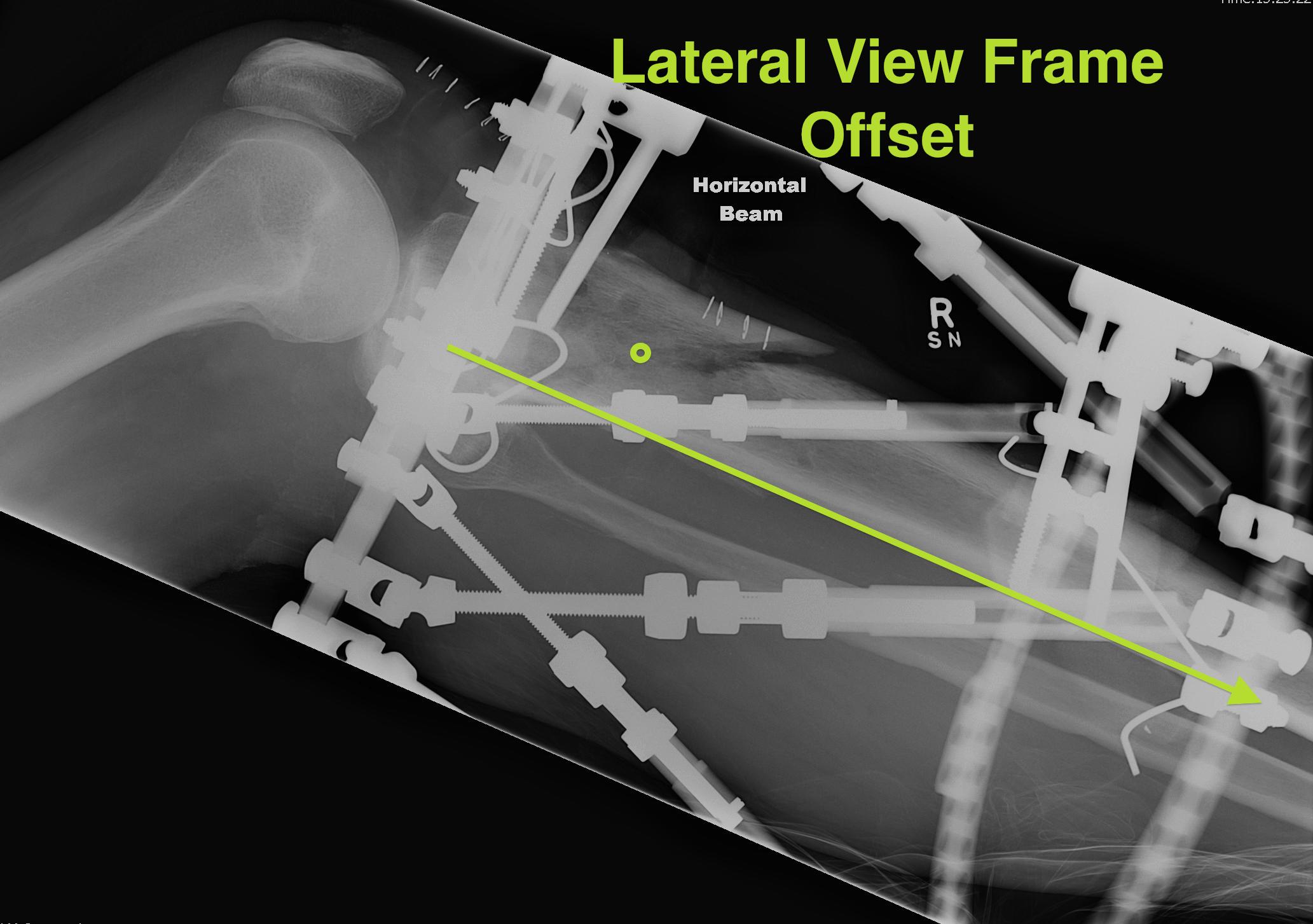

TSF AP View Frame OffsetTSF Lateral View Frame Offset



Estimate Rotatory Offset



If Proximal Ring Tab not centred over anterior border of tibia

- need to clinically estimate the difference

- i.e. 5o



Characterise the skeletal deformity



6 measurements required

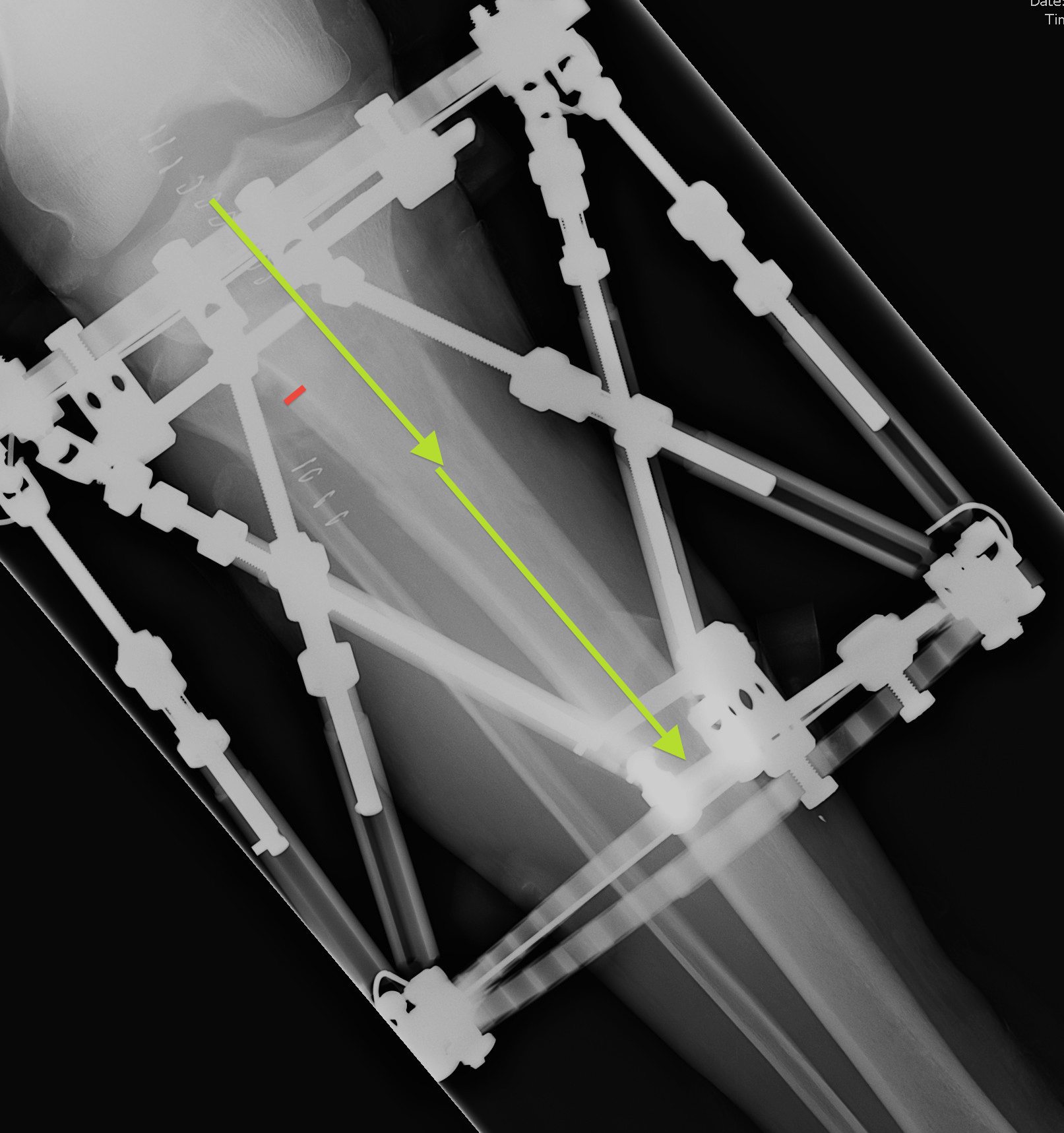

AP View Angulation + Translation



TSF AP View Angulation and Translation

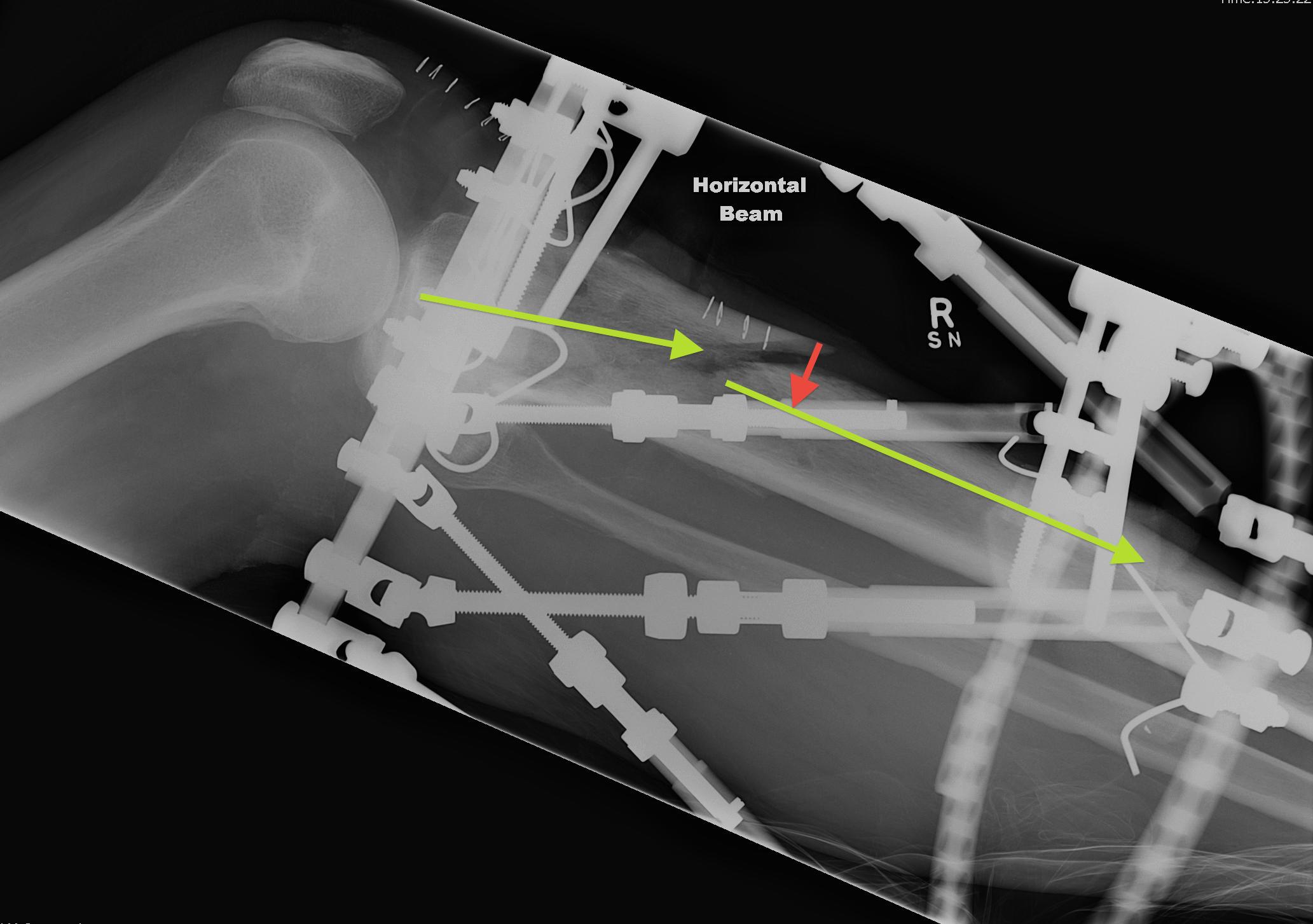

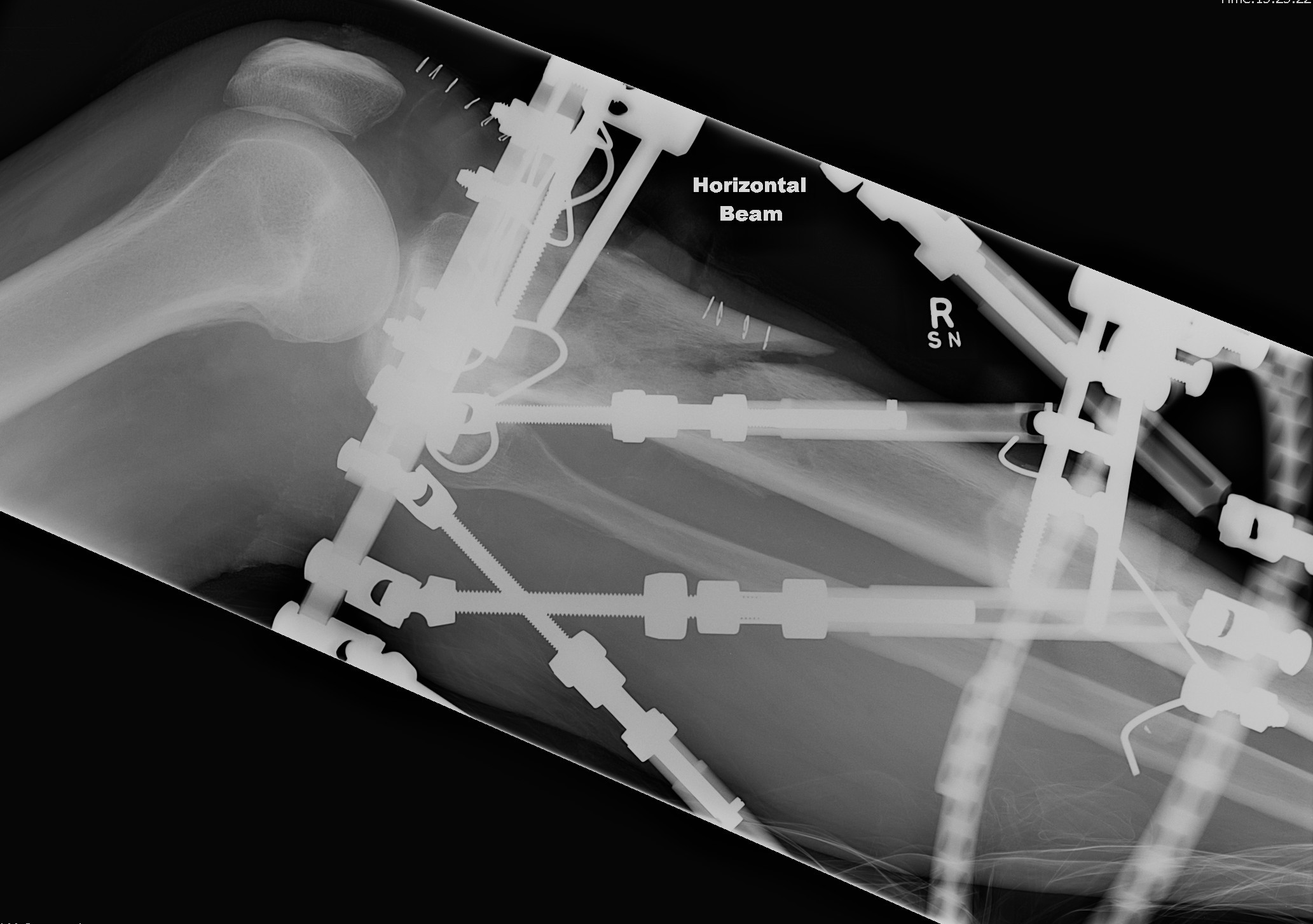

Lateral View Angulation + Translation



TSF Lateral View Angulation and Translation

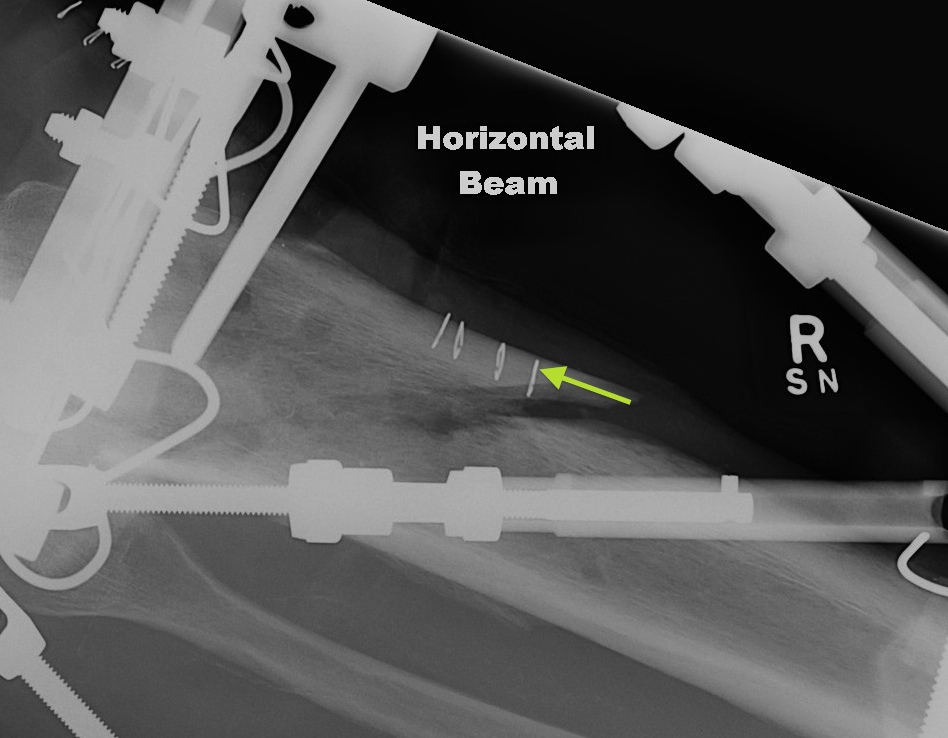

Axial Translation (Shortening)



TSF Axial Translation



Axial View Angulation



Clinical

- is the foot externally rotated

- if so, how much



Total Residual Correction



Enter details

- ring size

- strut length

- reference fragment / origin

- frame offset

- 6 measurements



Tell rate of correction

- usually 10 days to 2 weeks



Computer will calculate correction

- assumes correct to neutral

- print daily strut changes requires



Example

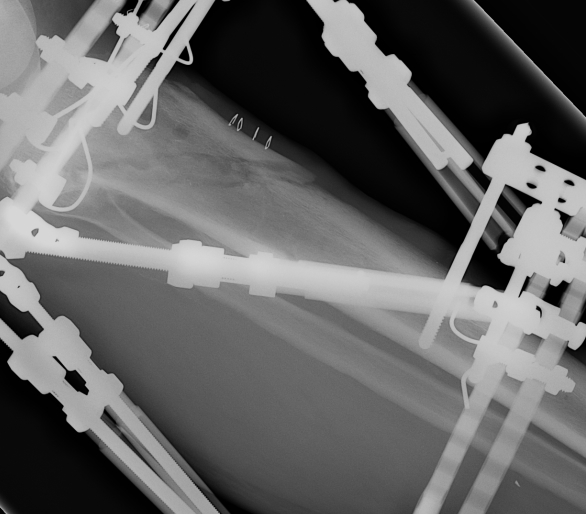

TSF Proximal Tibial Fracture Pre CorrectionTSF Proximal Tibial Fracture Post Correction

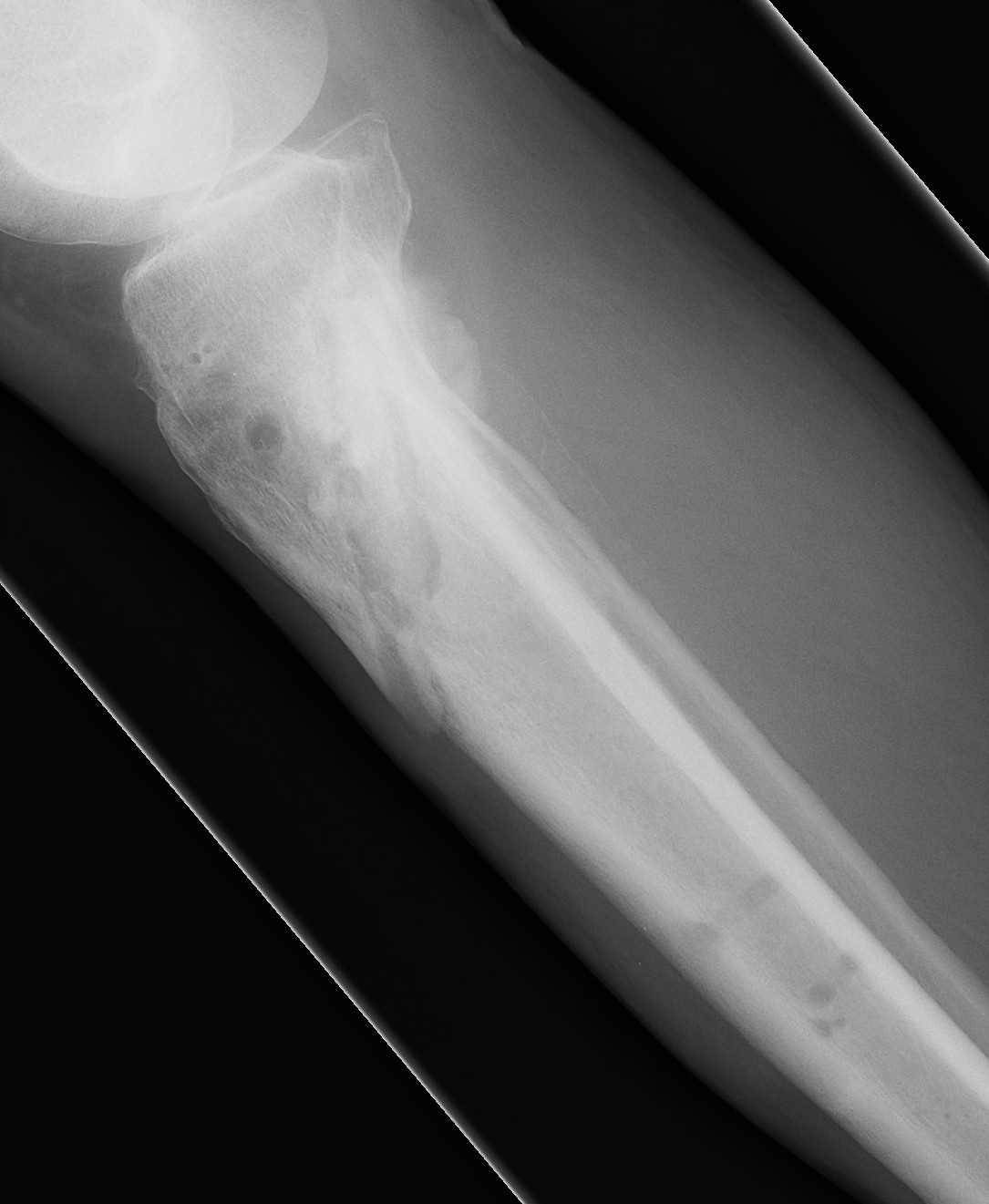

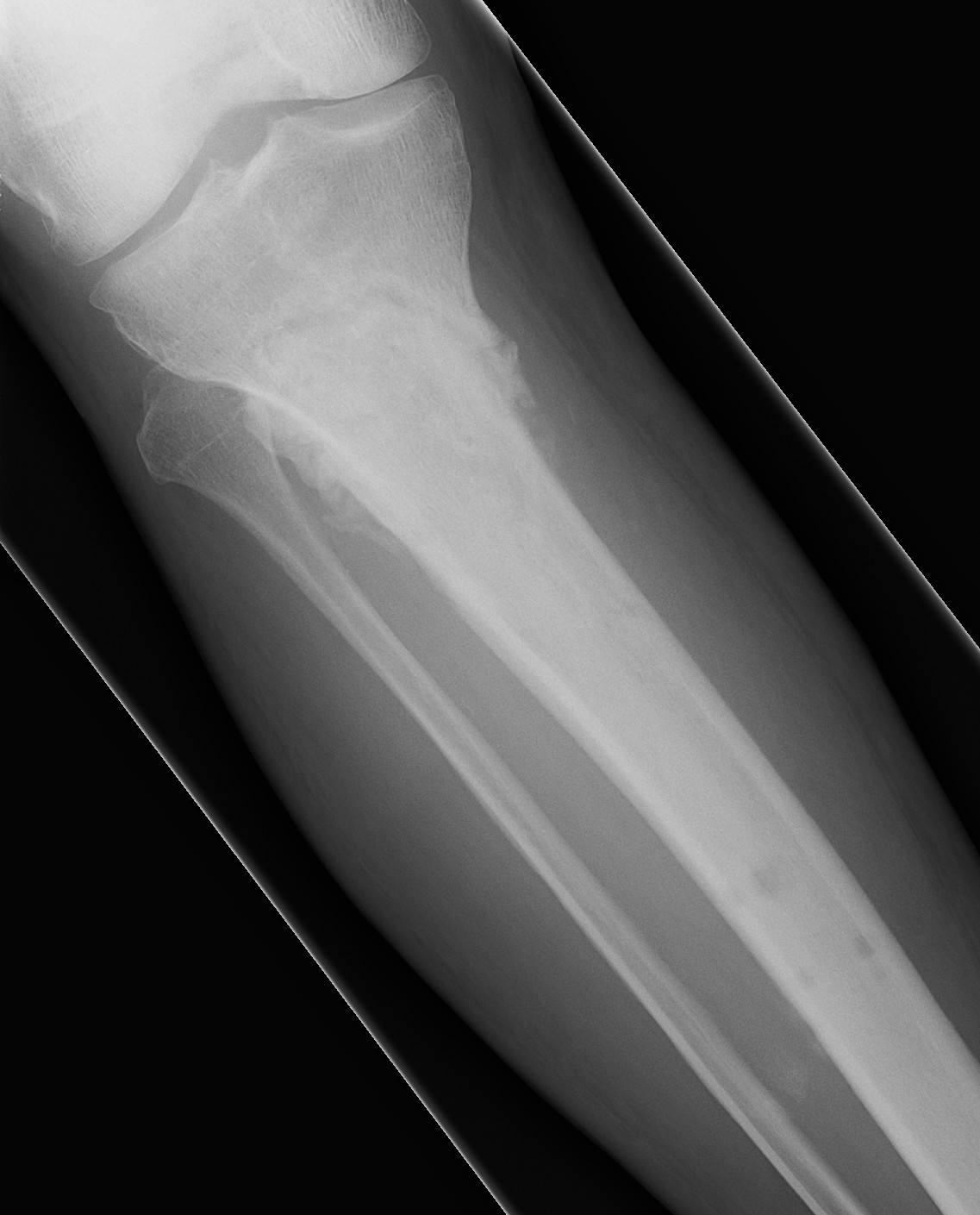

TSF Proximal Tibia Union APTSF Proximal Tibia Union Lateral
