Unicameral Bone Cyst



UBC femurUBC shoulderUBC distal tibia



Definition



Simple Bone Cyst

- solitary cavity containing clear fluid

- originating in the metaphysis of growing children

- adjacent to the metaphyseal aspect of the growth plate.



Etiology



? blockage in venous drainage



Epidemiology



Peak age 9 (3-14)

Male:female 2:1



Location



90% humerus and femur

Proximal metaphysis where growth is greatest



Can occur in calcaneum



Types

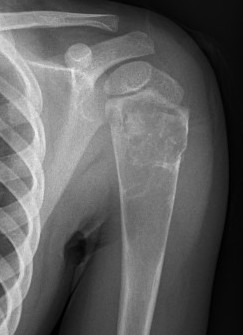

Active UBCLatent UBC



Active - adjacent to growth plate / physis

Latent - separated from physis by normal bone



Clinical



Asymptomatic

Pain caused by pathological fracture



X-ray



UBC HumerusUBC Humerus 2



Well-defined lucency

- thin sclerotic rim

- usually central

- thinned cortex with slight expansion

- thin internal septa

- can be multi-loculated



Fallen-Leaf (AKA fallen-fragment)

- with pathological fracture

- indicates that the lesion has no matrix and is fluid filled



UBC shoulder

Fallen leaf sign



DDx ABC



ABC

- eccentric (v central)

- width > physis

- can be very difficult to tell

- requires biopsy



MRI



UBC MRI 1UBC MRI 2



MRI UBC tib 1UBC tibia MRI 2UBC tibia MRI 3



Gruenewald et al Br J Radiol 2023

- 36 patients with UBC or ABC

- fluid fluid levels / septation seen in both

- arterial feeders on MRA helped differentiate some ABC's



CT

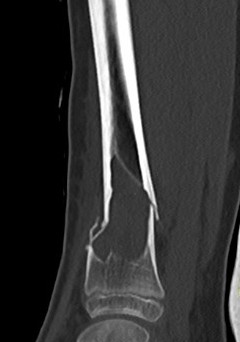

CT humerus UBCCT ankle UBC 1CT ankle UBC 2



Pathology



https://www.pathologyoutlines.com/topic/bonesolitarybonecyst.html



Fluids

- contain high levels of prostaglandins

- contain high levels of alkaline phosphatase



Gross



Cyst

- large intramedullary cavity

- lined with membrane

- contains clear fluid compared with ABC

- can have septations



Histology



Thin fibrous layer of connective tissue

- cells resembles synovial cells

- few multinucleated giant cells



Natural History



Urakawa et al BMC Musculoskeletal Dis 2014

- 60 patients with pathological fractures of UBC

- 30% healing rate following fracture and nonoperative care



Kim et al J Orthop Surg 2018

- 56 patients with fracture of humerus UBC

- overall healing rate 66%

- diaphyseal / latent lesions and older patients more likely to heal



Management



Fracture



1.  Humerus



Typically treat nonoperatively

Obtain union

Consider further intervention when fracture heals and UBC persists



Humerus UBC # 1Humerus UBC # 2Humerus UBC # 3



2.  Femur



Want to prevent fracture and avoid morbidity / deformity

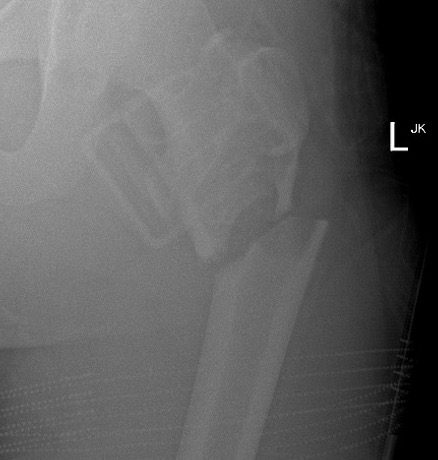

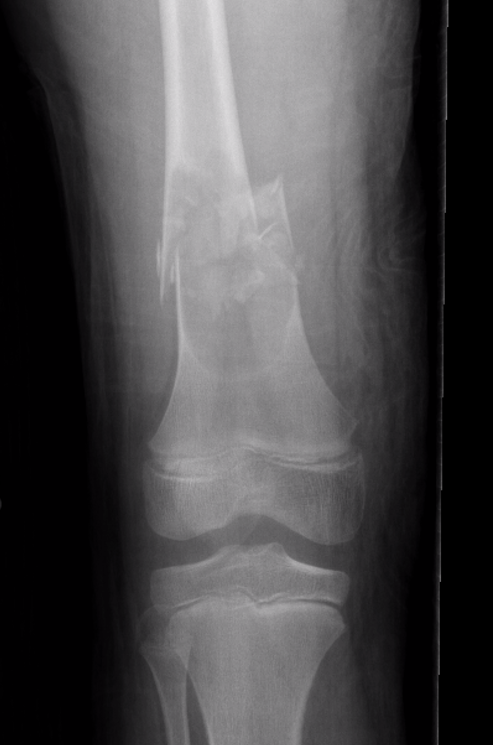

UBC fractured femurUBC femur fracture 2Distal femur UBC fracture 2



Options



Observe

Percutaneous treatment

- cortisone

- bone marrow aspirate / demineralized bone graft

Curettage and bone graft

ORIF



Results



Kadhim et al J Child Orthop 2014

- systematic review of 62 articles and 3200 UBC

- healing rates

- nonoperative treatment 64%

- methylprednisone injection 77%

- bone marrow injection 78%

- bone marrow with demineralized bone matrix injection 99%

- surgical curettage with bone graft 90%

- flexible IM nails without curettage 99%

- decompression with cannulated screws 89%



Aspiration and injection cortisone



Technique



Inject methylprednisolone

- steroid blocks PGE



Results



Pavone et al Eur J Orthop Surg Traumatol 2014

- 23 UBC treated with serial injections of methyprednisolone

- good results in 19/23

- refracture in 4/23

- minor skin discoloration in 3 patients



Bone marrow aspirate +/- demineralized bone matrix



Technique



GA / Aspirate from bone marrow

- inject into cyst under image intensifier



Results



Wright et al JBJS Am 2008

- RCT of bone marrow aspirate v methylpred in 77 patients followed for 2 years

- 42% in the methylpred group healed

- 23% in the bone marrow group healed



D'Amato et al Acta Orthop Traumatol Turc 2020

- 24 patients treated with bone marrow concentrate and demineralized bone graft

- 29 had three injections of methylpred

- 83% healing with BMC / demineralized bone graft

- 59% healing with methylpred



Curettage + bone graft



Bone graft

- allograft

- bioceramics



Care with active lesions as don't want to injure growth plate

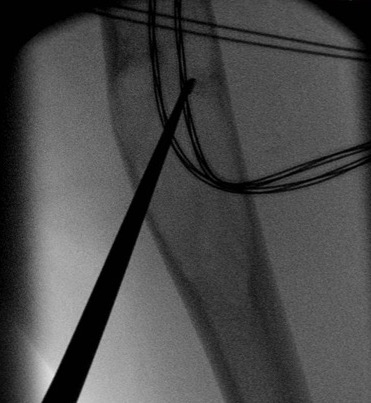

UBC Humerus DrillingUBC Humerus Curettage

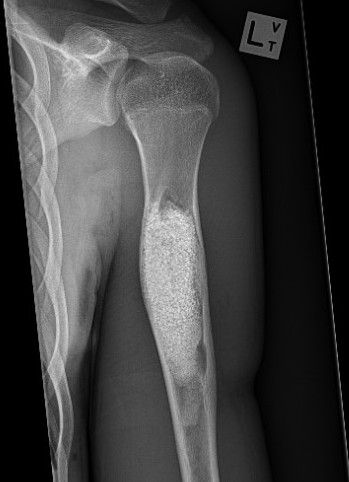

Humerus bone graft 3Bone substitute UBC

Bone graft with silicone bone substitute (BonAlive)

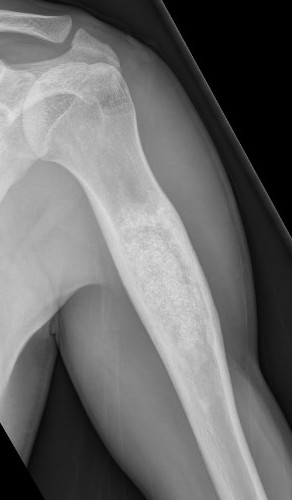

Humerus bone graft 2Humerus bone graft 1



Results



Hunt et al Orthopedics 2009

- 21 proximal humeral cysts

- treated with curettage / allograft / bone marrow aspirate

- 75% union rate with one surgical procedure

- 95% with two surgical procedures



ORIF and bone graft



Indication

- fracture

- weight bearing bone

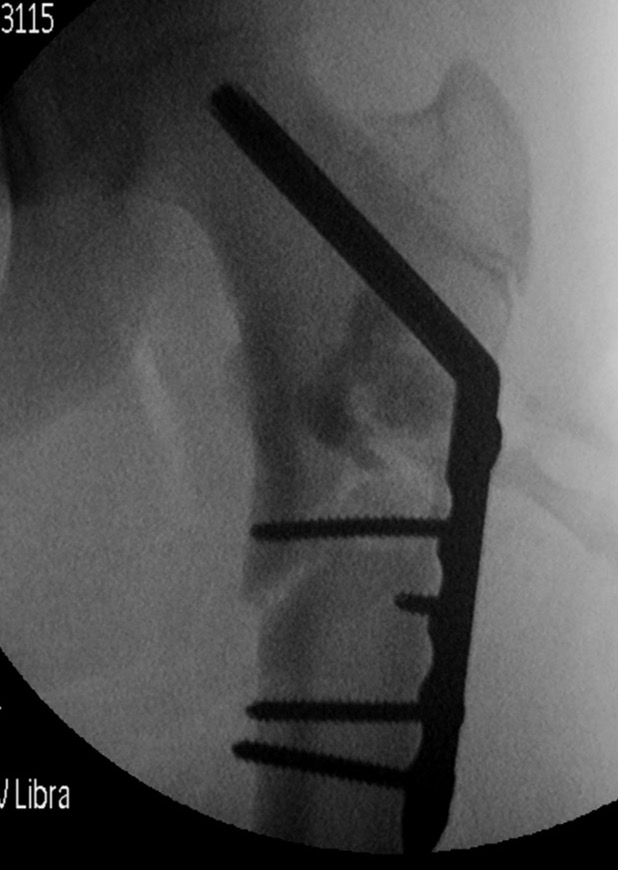

UBC femur frac 1UBC femur ORIF 2



UBC fractured femurUBC femur ORIF 2



Surgical cyst drainage using implants



Concept

- venous hypertension cause of cyst

- if allow cyst to drain, will heal



Options

- cannulated screws in calcaneum

- flexible nails humerus

- intramedullary nail femur



Unicameral Bone CystUnicameral Bone Cyst IM Nail



Results



Erol et al J Paediatr Orthop B 2017

- humeral simple bone cysts

- 37 curettage and bone graft

- 16 had addition of flexible nails

- 76% healing curettage and bone graft

- 100% healing with flexible nails



ORIF + fibular strut allograft



UBC humerus fibular strut 1UBC humerus fibular strut 2



Jamshidi et al Int Orthop 2018

- 14 cases humerus UBC

- treated with locking plate + fibular allograft

- complete healing in 10, partial healing in 4
