Giant Cell Tumour of Bone



GCT distal tibiaGCT hip GCT humerus



Definition



Benign, locally aggressive primary bone tumour

- pulmonary metastasis 3% (usually associated with recurrence after surgery)

- malignant transformation 1%



Biologically and clinically distinct from tenosynovial giant cell tumour

Vastly different natural history and treatment



Epidemiology



5% of primary bone tumours

Aged 20 - 40



Pathophysiology



Overexpression of receptor activator of nuclear factor κB ligand (RANKL)

- promotes recruitment of numerous reactive multinucleated giant cells

- resorption of bone



Campanacci Staging



Stage I: Latent (15%) Stage II: Active (70%) Stage III: Aggressive (15%) Malignant

Sclerotic Rim

Asymptomatic

Inactive on bone scan

Histologically benign

Expanded cortex but no breakthrough

Symptomatic

Often have pathological fracture

Active on bone scan

Histologically benign

Rapidly growing mass

Cortical perforation, soft tissue mass

Symptomatic

Extensive activity on bone scan

Histologically benign

Rare

Sarcomatous lesion contiguous with benign GCT



Clinical



Joint pain



Pathological fracture common presentation - 20%



Location



85% meta-epiphysis of long bones

10% axial skeleton (sacrum, vertebral bodies)

5% small bones hand and feet



Multiple giant cell tumours rare

- consider Brown's tumours / hyperparathyroidism

- histology findings very similar



X-ray



Eccentric, sharply demarcated lytic lesion

- no sclerosis around lesion

- narrow zone of transition

- metaphysis, extending into epiphysis

- no mineralization



GCT Distal Femur Xray



GCT knee 1GCT knee 2



GCT humerus 1GCT wrist

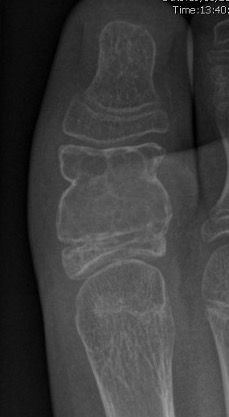

GCT fingerGCT toe



MRI



Low signal intensity T1 / high signal intensity T2

Areas of ABC seen in 10 - 14%

Look for signs of grade III: soft tissue extension



GCT Distal Femur MRI0001GCT Distal Femur MRI0002



GCT hip 1GCT hip 2



GCT hum MRI 1GCT hum MRI 2



CT

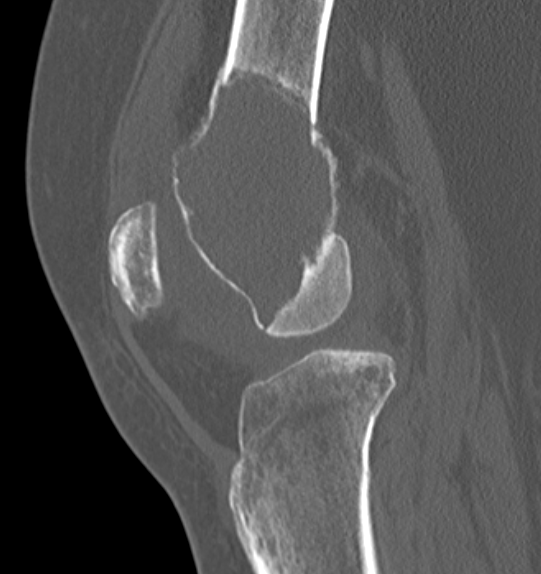

GCT CT 1GCT CT 2GCT CT 3



GCT wrist CT 1GCT wrist CT 2



Differential diagnosis



ABC / UBC

Chondroblastoma - adolescents / areas of calcification

Clear cell sarcoma

Osteosarcoma

Synovial cyst / geode in osteoarthritis

PVNS

Osteomyelitis (brodies abscess)

Brown's tumour

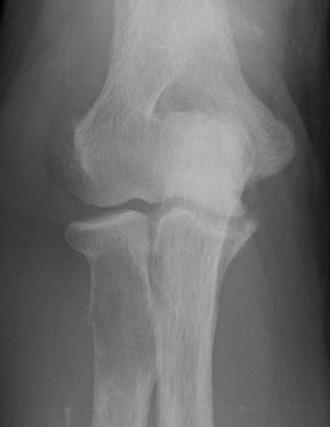

Brown tumour 1Brown tumour 2

Brown's tumour in hyperparathyroidism



Histology



Giant Cell Tumour Histology Nephron GNU Free Documentation License Version 1.2 httpwww.gnu.orgcopyleftfdl.html



Two Cell Types

A.  Neoplastic rounded mononuclear osteoclast precursor cells and spindle-shaped mononuclear neoplastic “stromal” cells

B.  Reactive multinucleated osteoclast-like giant cells causing bone resorption



Natural HIstory



Recurrence 18%

- increased risk with soft tissue extension

- reduced by use of cement

- reduced by wide resection, but associated with higher morbidity



Lung metastasis 4%

- increased by local recurrence



Malignant transformation 1 - 2%



Management



Staging



Biopsy usually performed



Options



1.  Currettage + bone graft / cement
2.  Wide excision + allograft / arthroplasty

3.  Adjuvant treatment - Denosumab



Recurrence



Zuo et al World J Surg Oncol 2013

- systematic review

- 1293 patients

- reduced recurrence with use of cement in comparison to bone graft



Tsukamoto et al CORR 2020

- systematic review of Denosumab

- evidence of increase rates of recurrence with Denosumab pre-operatively

- may be biased by increased use of Denosumab in Type III



Denosumab



Indicated for GCT of bone, no role in tenosynovial GCT.



Human monoclonal antibody (mAb)

- inhibits tumor-associated bone lysis

- RANKL pathway

- pre-operative treatment



May allow surgical downstaging

- surgically unsalvageable / surgical treatment high morbidity

- arthrodesis or arthroplasty in young patients



Results



Traub et al Eur J Cancer 2016

- prospective study of 20 patients with GCT

- pre-operative treatment with Denosumab

- pain relief in the first month

- improved radiological response with improved subchondral and cortical bone

- increased intra-lesional resection and joint preservation

- no effect on recurrence



Rutkowski et al Ann Surg Oncol 2015

- 222 patients at risk for wide resection treated with Denosumab

- allowed joint preservation in 96% of those thought to require joint replacement

- allowed joint preservation in 86% of those thought to require wide resection / arthrodesis

- recurrence rate 15%



Complications



Chawla et al Lancet Oncol 2019

- 532 patients with GCT treated with denosumab

- serious adverse events in 26%

- 3% jaw necrosis

- 1% anemia / 1% atypical femur fracture / 1% hypercalcaemia



Bisphosphonates



Results



Deslivia et al Malays Orthop J 2023

- systematic review of pre- and postoperative bisphosphonates

- evidence of lower recurrence rates with few complications



Currettage and Cement +/- local application phenol / liquid nitrogen



Indication



Joint salvage feasible



Technique



Vumedi video



Open approach

- bone window

- remove tissue with curette

- saucerisation with high speed burr

- consider phenol / liquid nitrogen application

- cement (works by thermal necrosis), in addition to structural support



GCT cement 1GCT cement 2

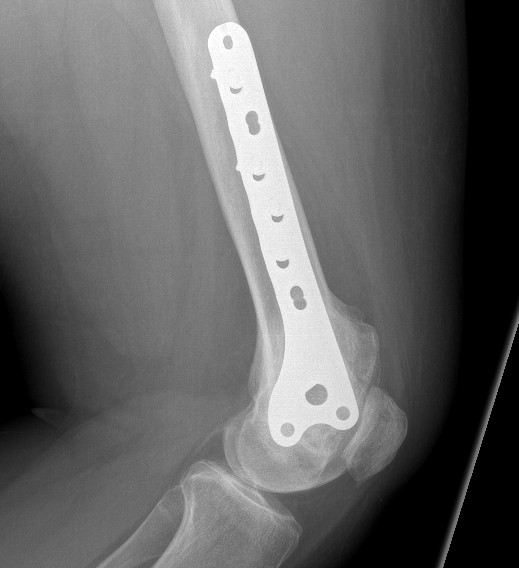

GCT knee 1GCT knee 2

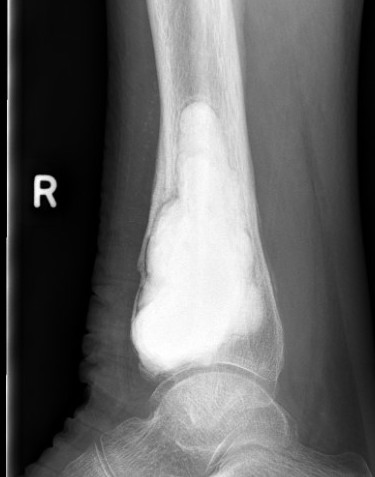

Tibia GCT 2Tibia GCT 1



Results



Aoude et al Bone Joint J 2023

- 354 GCT's treated surgically

- recurrence after curettage 18%



Knochentumoren et al JBJS Am 2008

- 384 cases

- recurrence significantly reduced by the use of cement



Wide resection and Allograft / Prosthesis Reconstruction



Indications

- extensive soft tissue tumour

- extensive cortical destruction

- impossible joint salvage

- multiple recurrence / failure bone cement



GCT hip 1GCT hip 2GCT hip 3

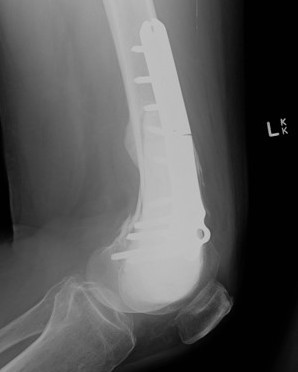

GCT femur 1GCT femur 2GCT femur 3

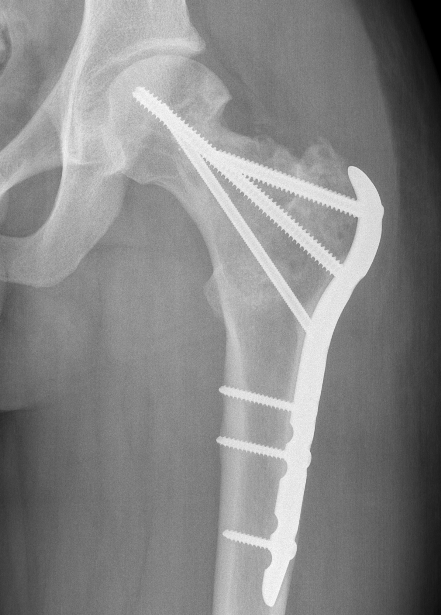

GCT hip 1Hip GCT 2HIp GCT 3



Distal Radius

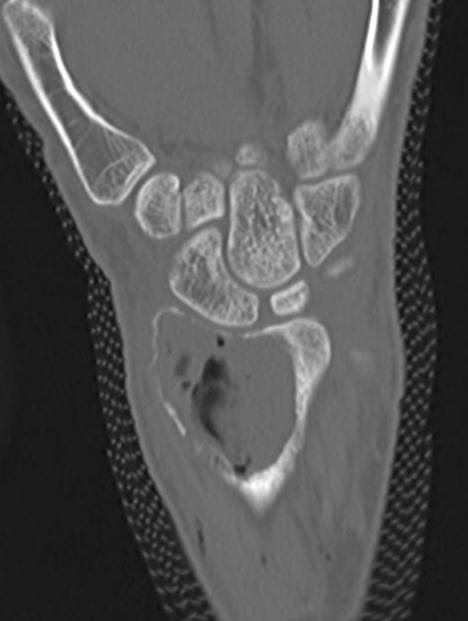

GCT DRGCT DR CT



Abuhejleh et al Eur J Orthop Traumatol Surg 2020

- 57 patients with GCT's of distal radius

- 29% (10/34) recurrence with intra-lesional treatement but no complications

- 4% (1/23) recurrence with wide resection / arthrodesis but 30% complication rate

- increased risk recurrence for Grade 3

- wide resection / arthrodesis should be reserved for grade 3



Koucheki et al Eur J Orthop Traumatol Surg 2023

- systematic review of 13 studies and 373 patients

- increased local recurrence with intralesional versus en-bloc resection

- especially Grade 3

- increased complications and poorer function with en-bloc resection



DR GCTDR GCT allograft DR GCT AllograftDR GCT allograft wrist subluxation

Distal radius GCT treated with en bloc resection and allograft reconstruction, followed by late wrist subluxation



Lung metastasis



Associated with local recurrence after treatment

Low mortality rate

Metastasis does NOT imply malignancy



Incidence



Wang et al Int Orthop 2021

- retrospective study of 310 patients

- 5.8% developed pulmonary metastasis

- 89% of patients had local recurrence of GCT after treatment



Ebeid et al J Clin Orthop Trauma 2021

- 15/466 (3.2%) incidence of pulmonary metastasis

- incidence 10% in recurrent GCT



Itkin et al J Clin Oncol 2018

- systematic review of metastatic GCT

- before widespread treatment with denosumab

- 26 case series with 242 patients

- overall survival 87% at 7 years

- spontaneous regression in 4.5%



Malignant transformation



Incidence



1 - 2%



Types



Primary: benign GCT with areas of sarcomatous transformation

Secondary: occur at sites of previously managed GCT



Imaging



Grade III with cortical destruction and soft tissue extension



Chawla et al Lancet Oncol 2019

- 532 patients

- 4 patients (1%) sarcomatous transformation



Liu et al J Bone Oncol 2020

- retrospective study of 1365 GCT in database

- malignant transformation 2.3%

- secondary most commonly osteosarcoma

- 5 year survival primary 56%

- 5 year survival secondary 40%
