Proximal Humerus Fracture

EpidemiologyProximal Humerus 4 Part Fracture



>65

- third most common fracture after hip and distal radius



Anatomy



Neck shaft angle

- 130o



Head retroverted

- 20o relative to shaft



Anatomical neck

- junction of head and metaphysis



Surgical neck

- junction of diaphysis and metaphysis



Blood supply



Gerber JBJS Am 1990 December

Anatomical cadaver study



1.  Anterior humeral circumflex



Major supply

- gives anterolateral branch

- runs in intertubercular groove lateral to biceps

- becomes arcuate artery

- supplies GT / LT / entire epiphysis



Nearly always disrupted in fractures



2.  Posterior Humeral circumflex



Small contribution posterior head

- allows head to survive with both tuberosities fractured



3.  RC

- supplies blood to tuberosities in fractures



Neer Classification 1970



Displaced

-  any fragment > 1cm or > 45o



Number of displaced fragments

- 2 part (head/shaft, GT, LT)

- 3 part (head/shaft/GT, head/shaft/LT)

- 4 part (head/shaft/GT/LT)



Fracture / dislocation

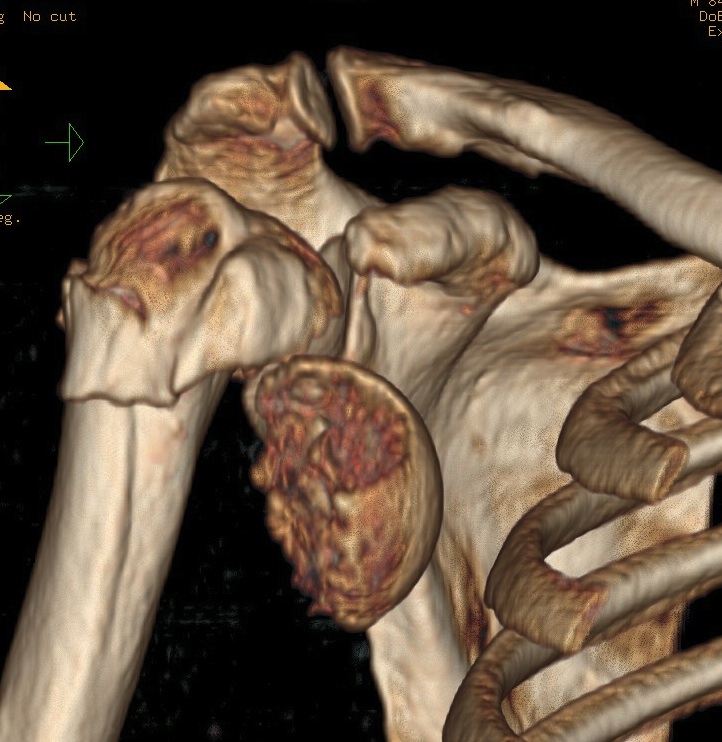

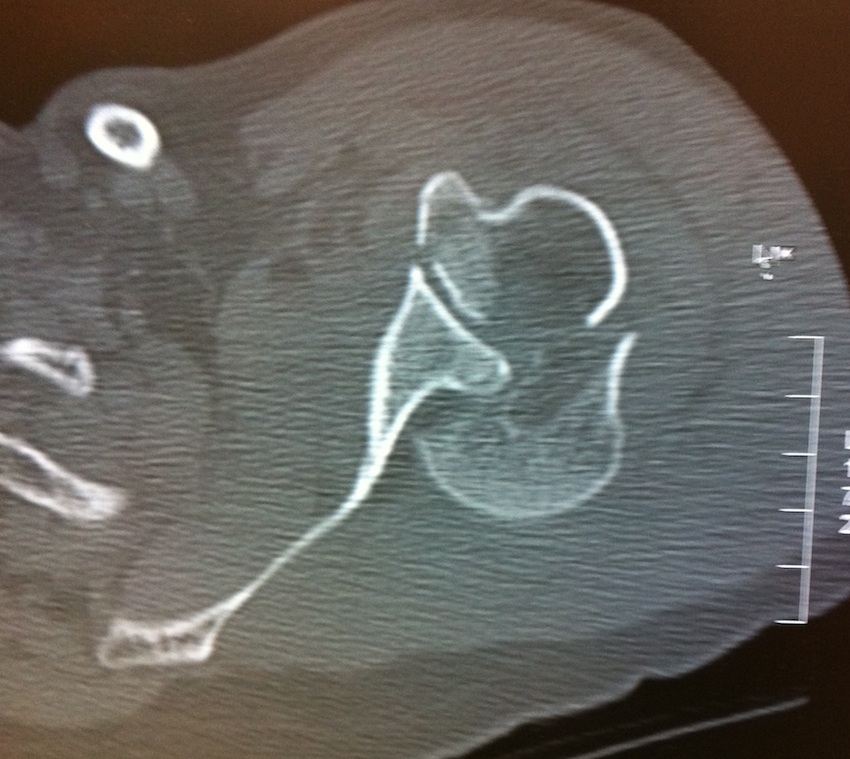

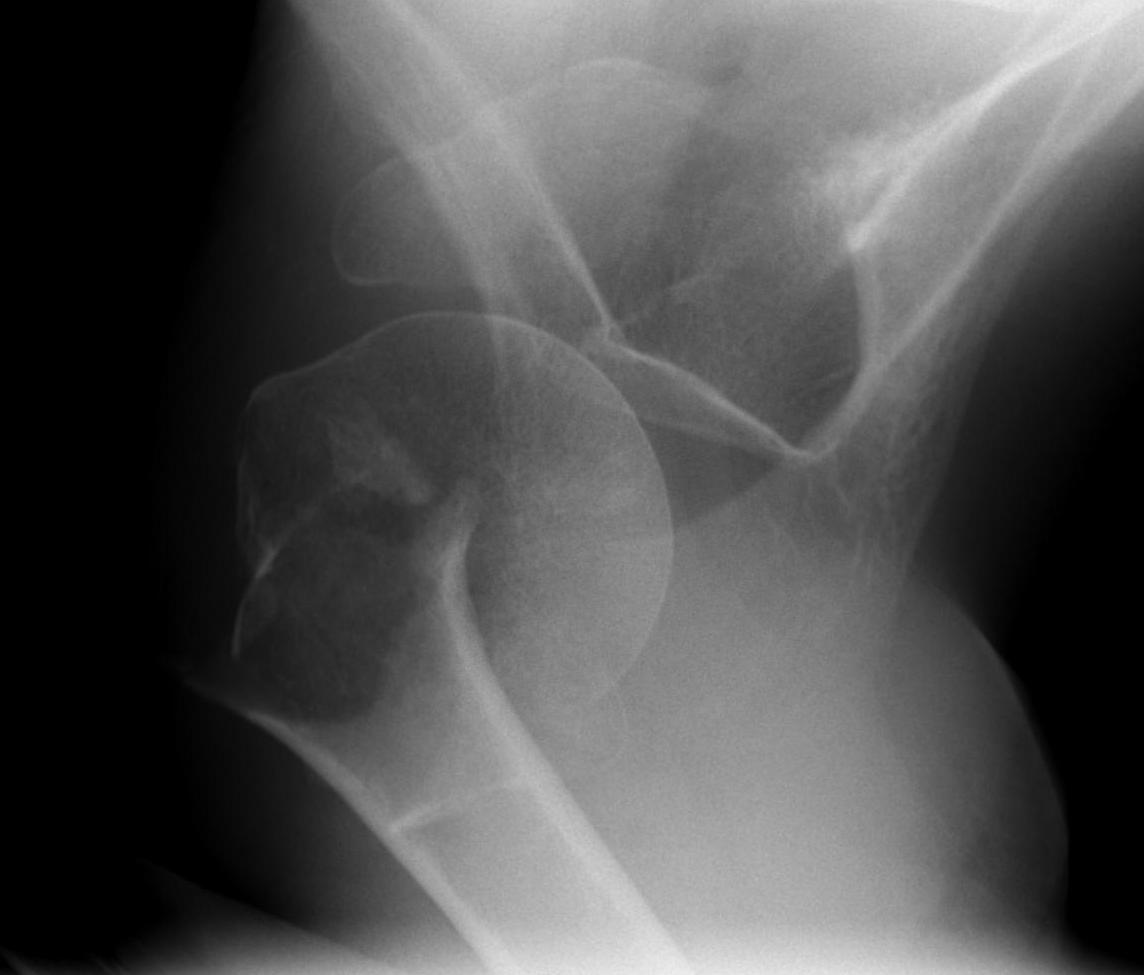

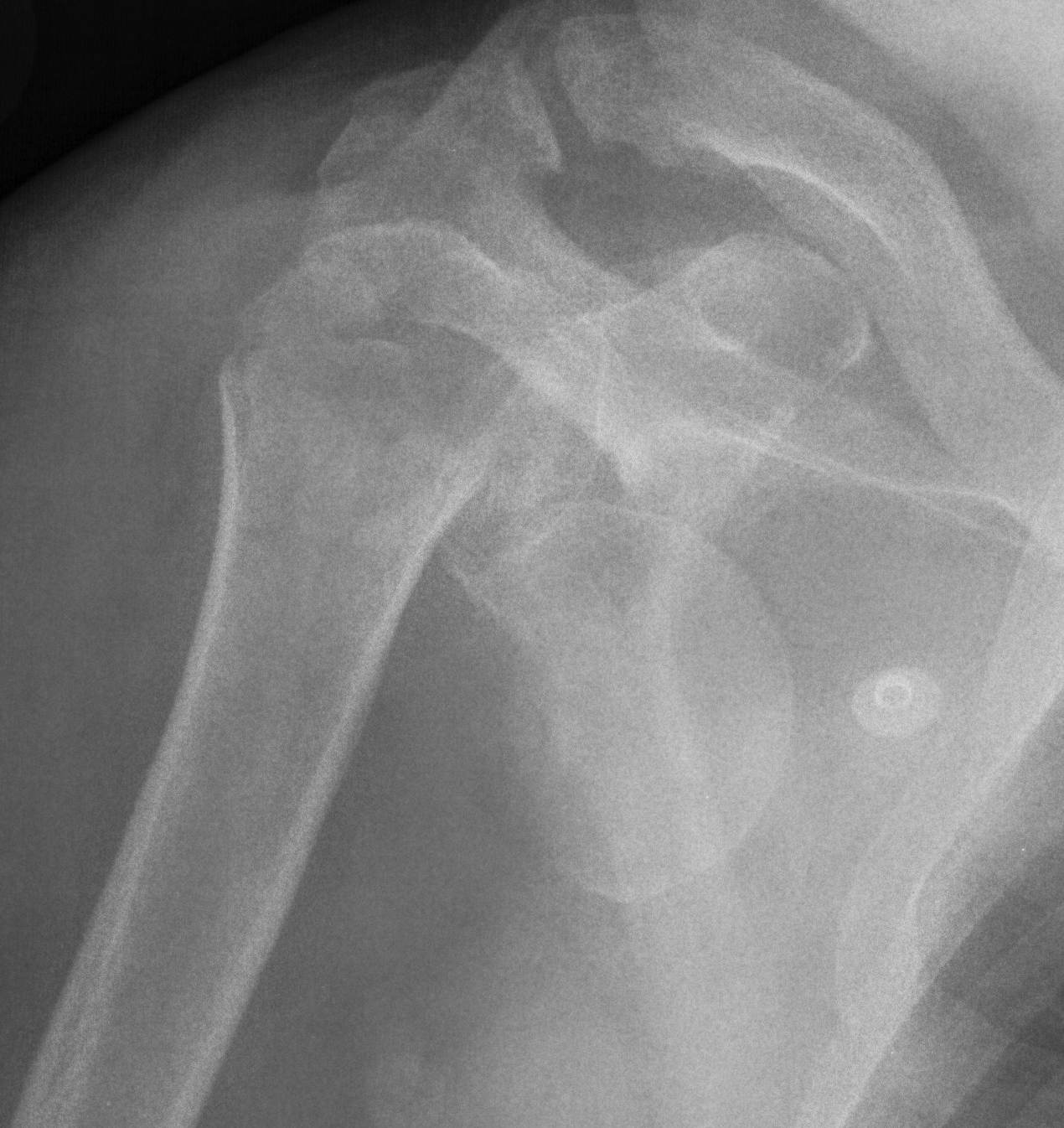

Shoulder Fracture DislocationProximal Humerus Fracture DislocationShoulder Fracture Dislocation AnteriorPosterior Shoulder Fracture Dislocation



Head splitting fracture

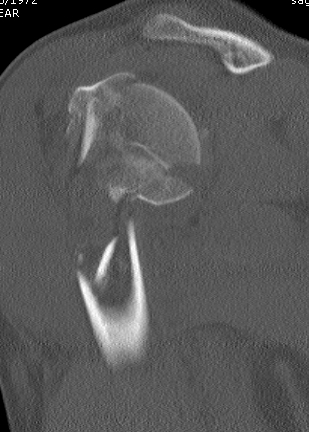

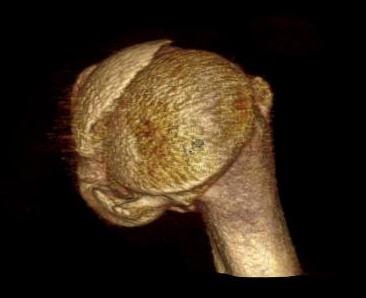

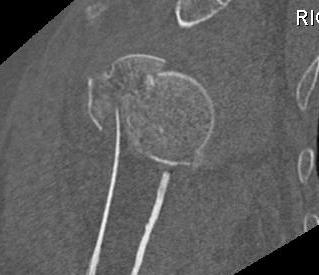

SNOH Head Split CTProximal Humerus Head Split CT



Anatomical Neck Fracture

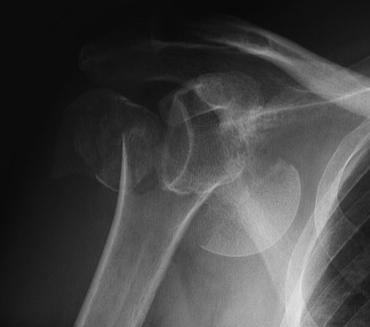

Humerus Anatomical Neck Fracture



AVN

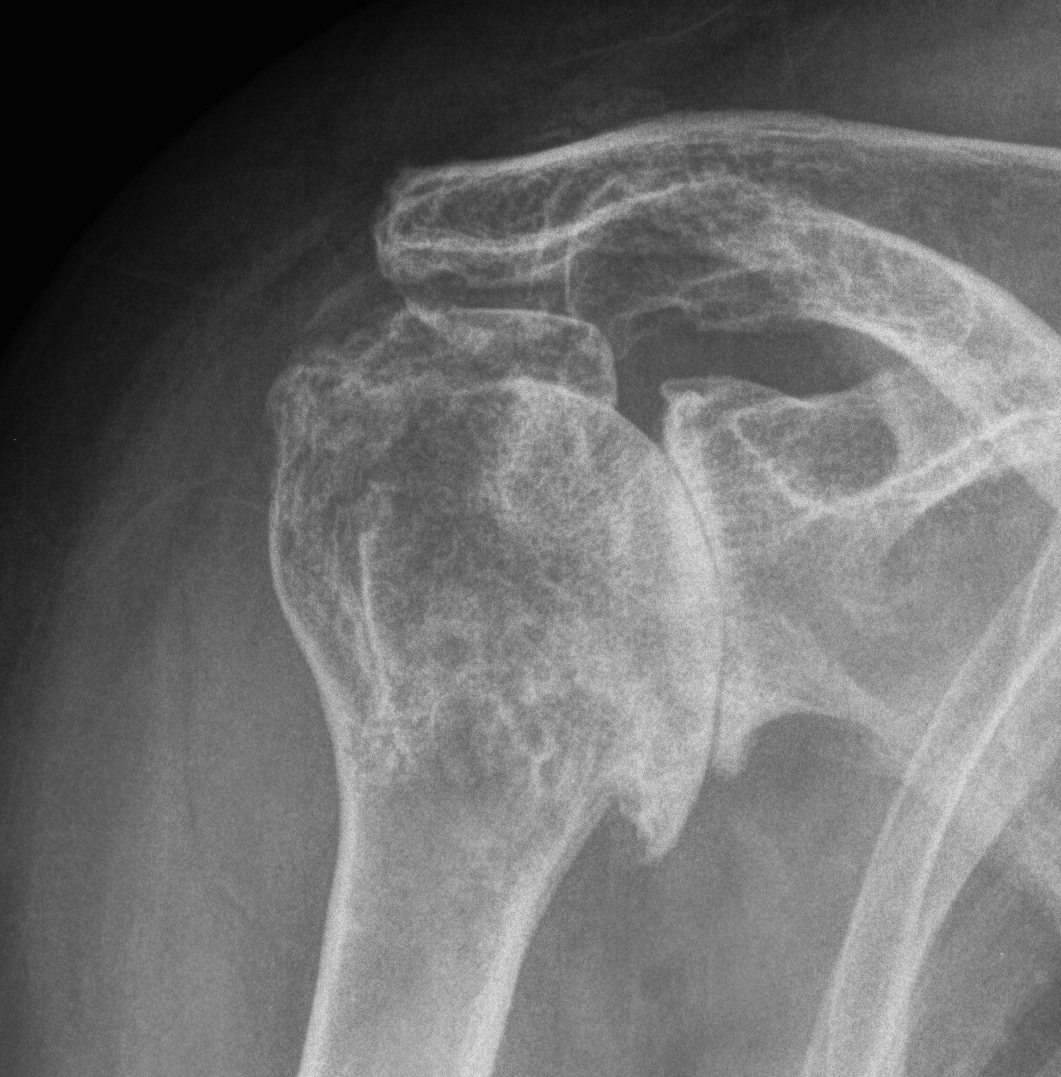

SNOH AVN



In most fractures, arcuate artery is disrupted, but head survives

- posterior circumflex artery is sufficient

- increases with amount of displacement



Rates AVN



4 part fracture 30%



3 part fracture 15%



Hertel Radiographic criteria



Hertel et al J Should Elbow Surg 2004



2 criteria to predict ischaemia

A. Metaphyseal head extension < 8 mm

B. Medial hinge displaced > 2mm



97% positive predictive of ischaemia if both factors present



Aetiology



FOOSH

- mostly elderly patients with osteoporotic



Young

- high energy MVA



Deforming Forces



2 part fracture

- P. major displaces shaft medially

- head internally rotated by SSC

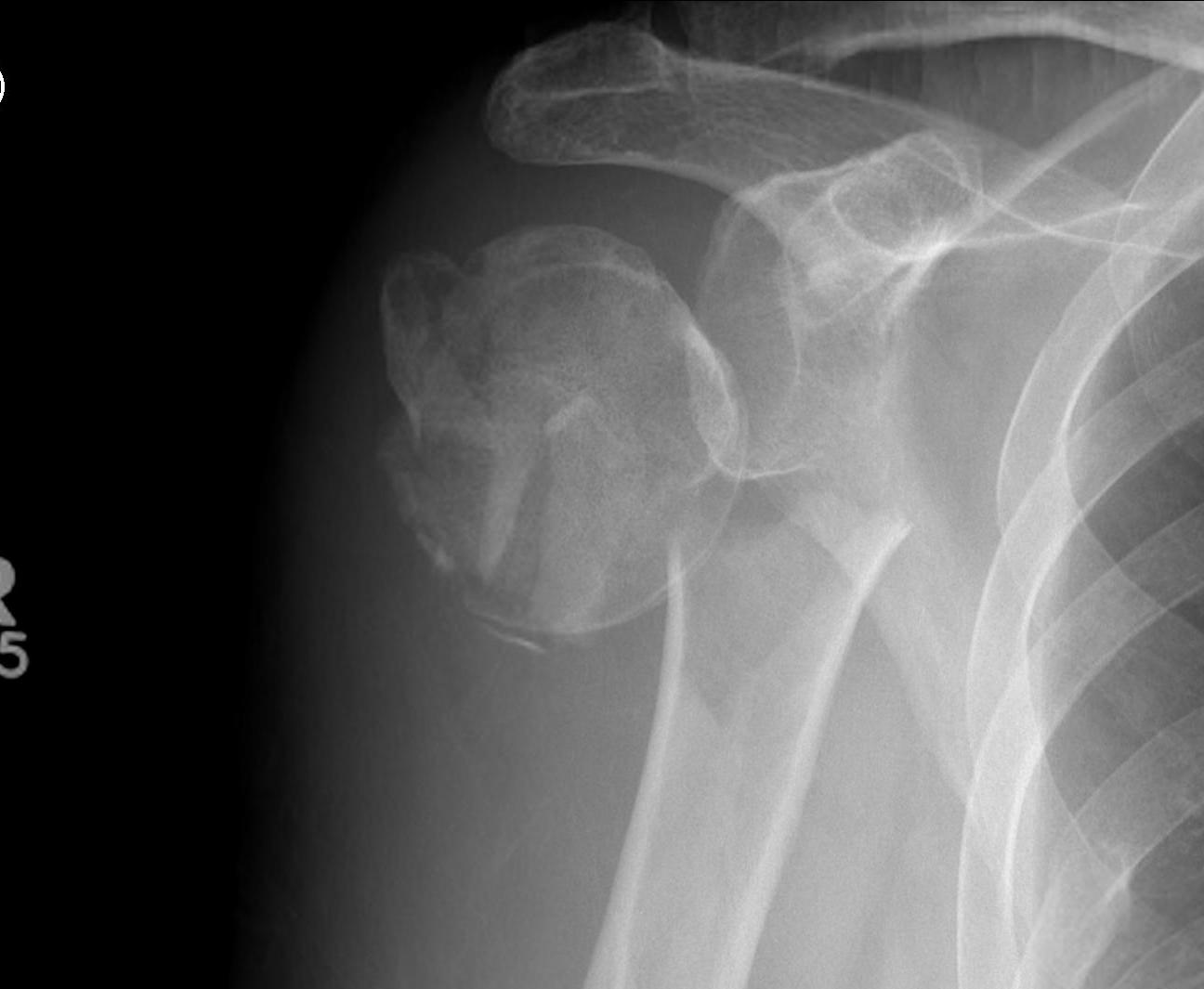

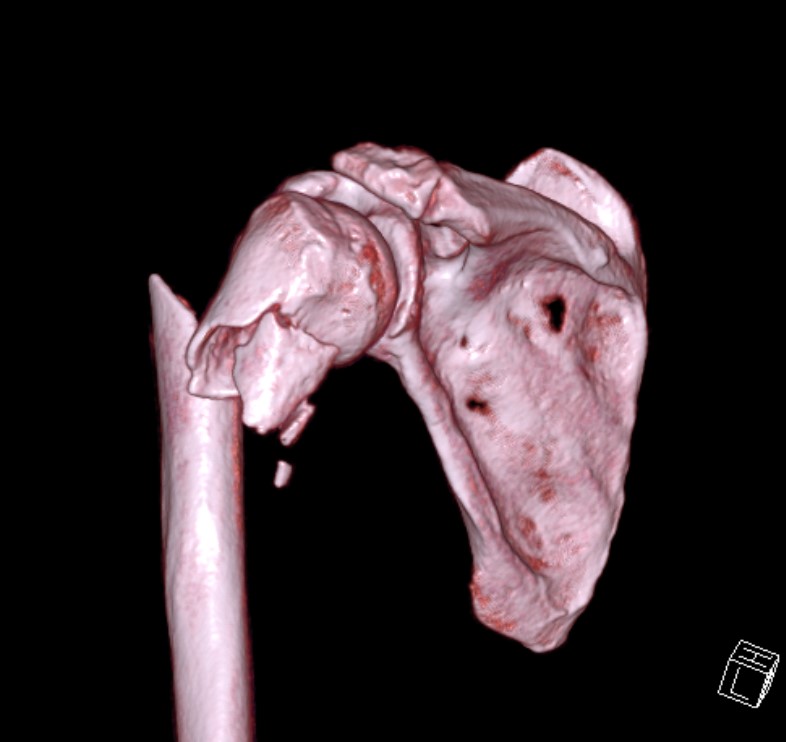

SNOH Fracture Displaced



GT fracture

- fragment pulled postero-superior

- combination of SS / IS / T minor

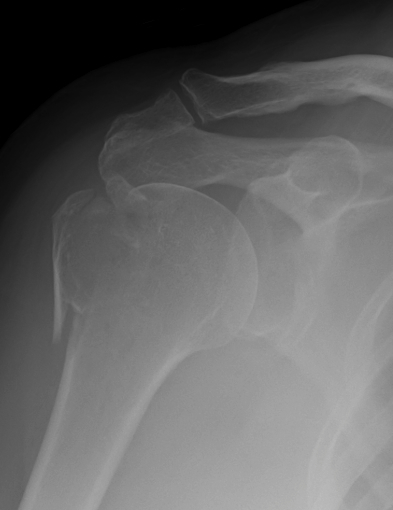

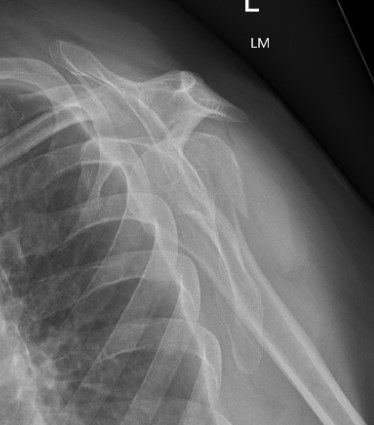

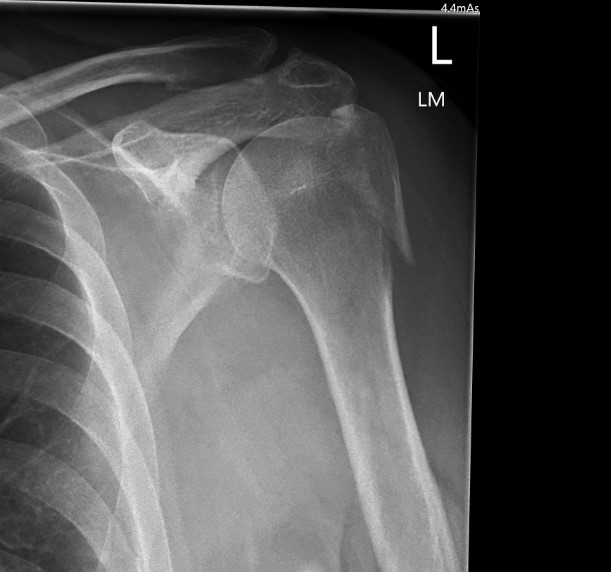

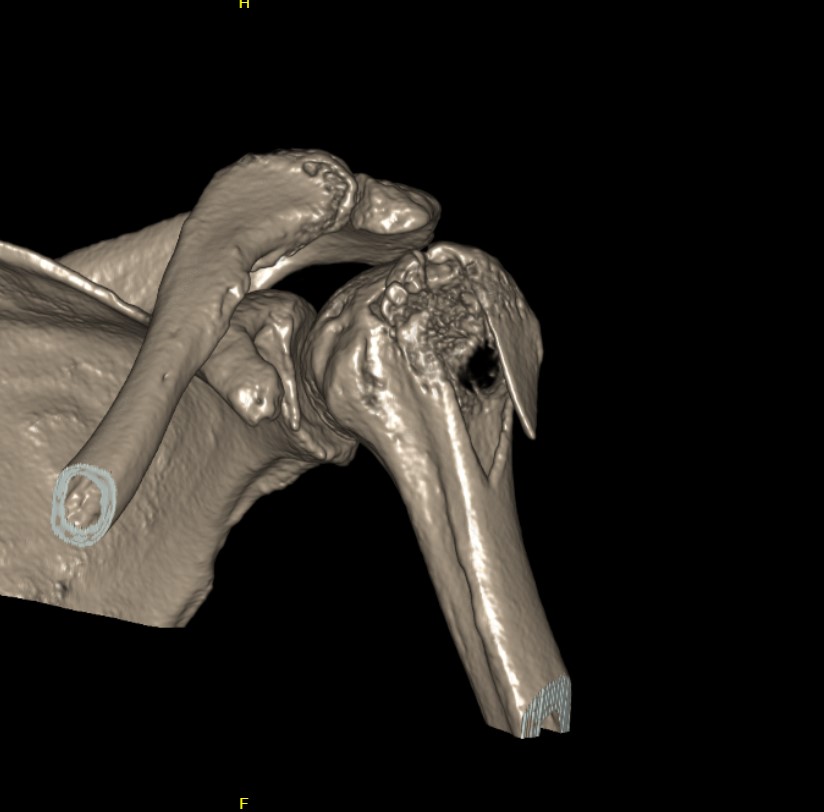

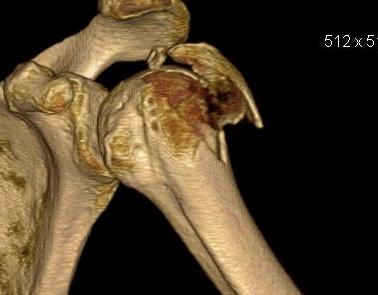

Displaced Greater Tuberosity Fracture APDisplaced Greater Tuberosity Fracture LateralShoulder CT Displaced GT Fracture



LT fracture

- medially by SSC

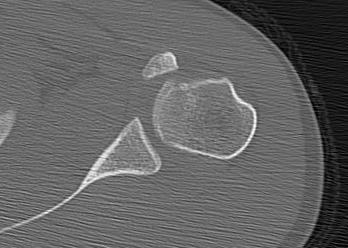

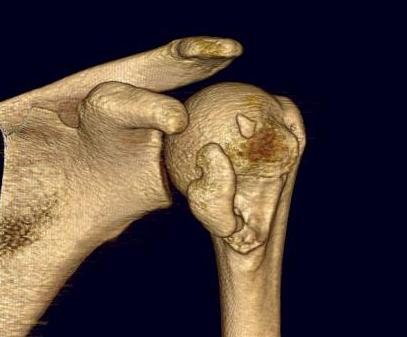

Lesser Tuberosity FractureLesser Tuberosity Fracture 2



X-rays



AP / Scapula Lateral / Axillary lateral



CT



Indication

- delineate no of fracture fragements

- degree of displacement

- head splitting fracture

- is there sufficient bone in humeral head to consider ORIF / in elderly

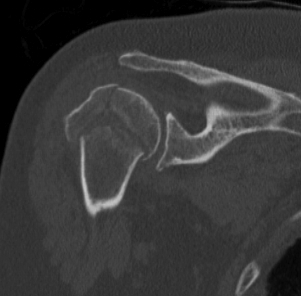

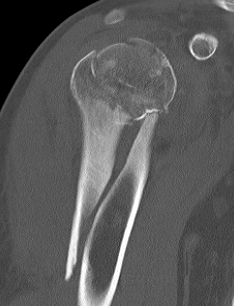

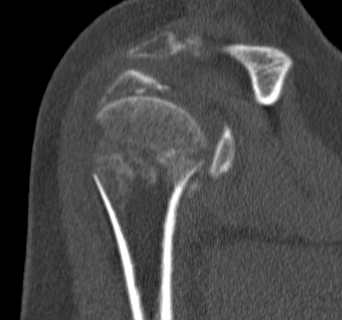

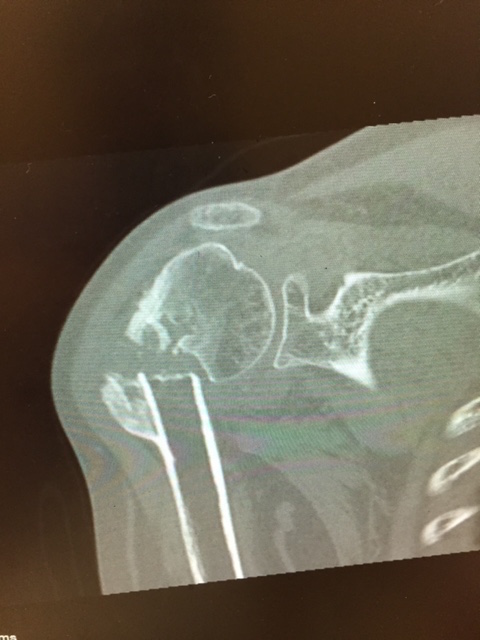

Surgical Neck of Humerus CT 4 Part CoronalSurgical Neck of Humerus CT 4 Part SagittalSNOH CT 3 Parts



Associated Injuries



Axillary nerve

- most commonly injured as close proximity

- relatively fixed by posterior cord brachial plexus & deltoid



Axillary artery

- in young patient with high speed injury

- can have collateral circulation and pink hand



Management



Non operative



Indications

- undisplaced

- elderly



NHx



85% are undisplaced and do not require surgery



Technique



Sling for 2/52 then mobilise



Results



Koval et al JBJS Am 1997

- 104 patients minimally displaced fracture as per Neer

- < 1cm displacement and <45o

- 90% no pain, 77% good or excellent result

- ROM approximately 90% of the other side

- 10% moderate pain and 10% poor result

- poor function and ROM associated with phyio started > 14 days after injury

- poor function associated with pre-existing cuff problems



Olerudet al JSES 2011

- RCT nonop v hemiarthroplasty for displaced 4 part

- 55 patients, average age 77

- 2 year follow up

- significant advantage of hemiarthroplasty



Operative Management



1.  2 Part Fractures



A.  SNOH



Indications

- >1 cm or > 45o

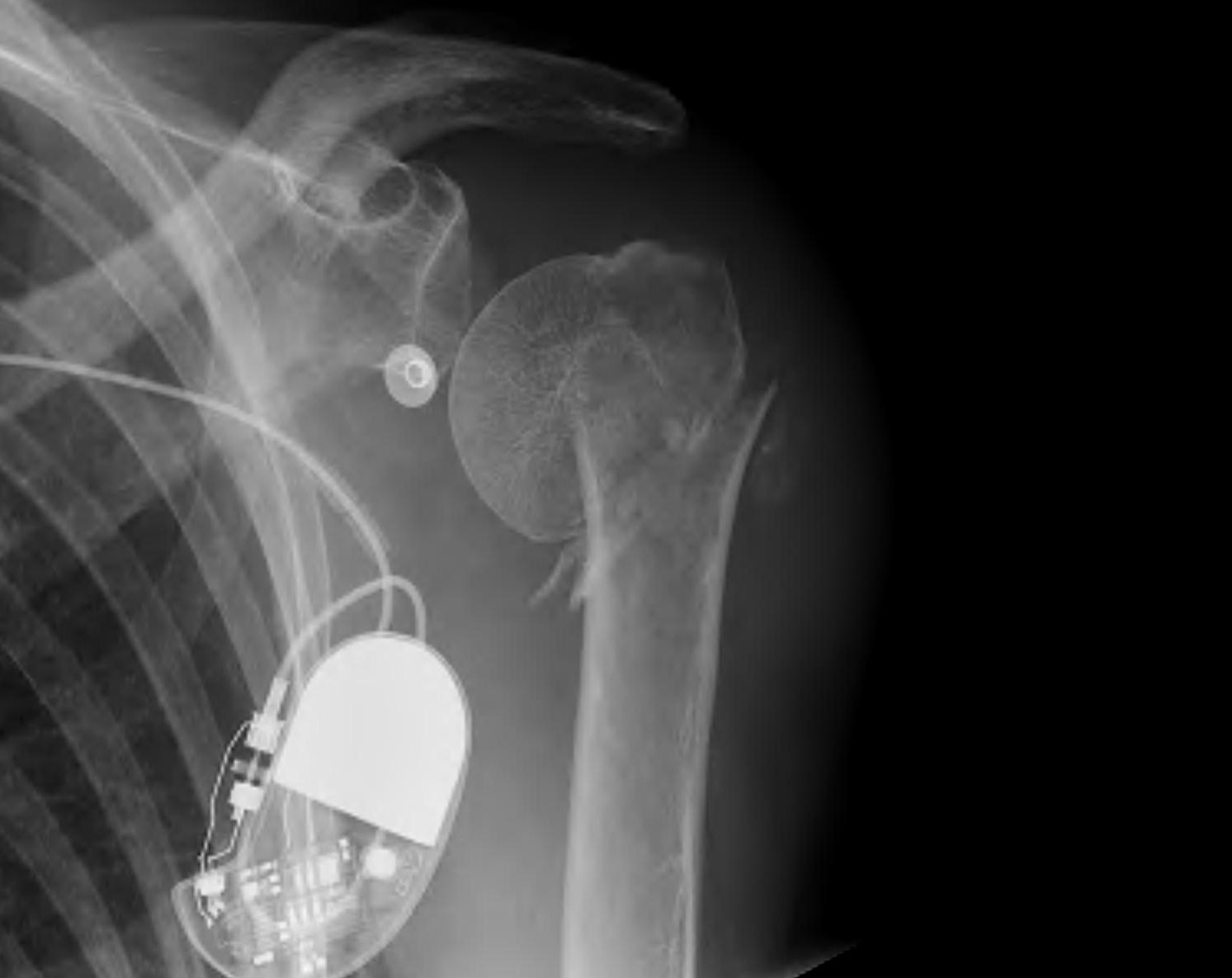

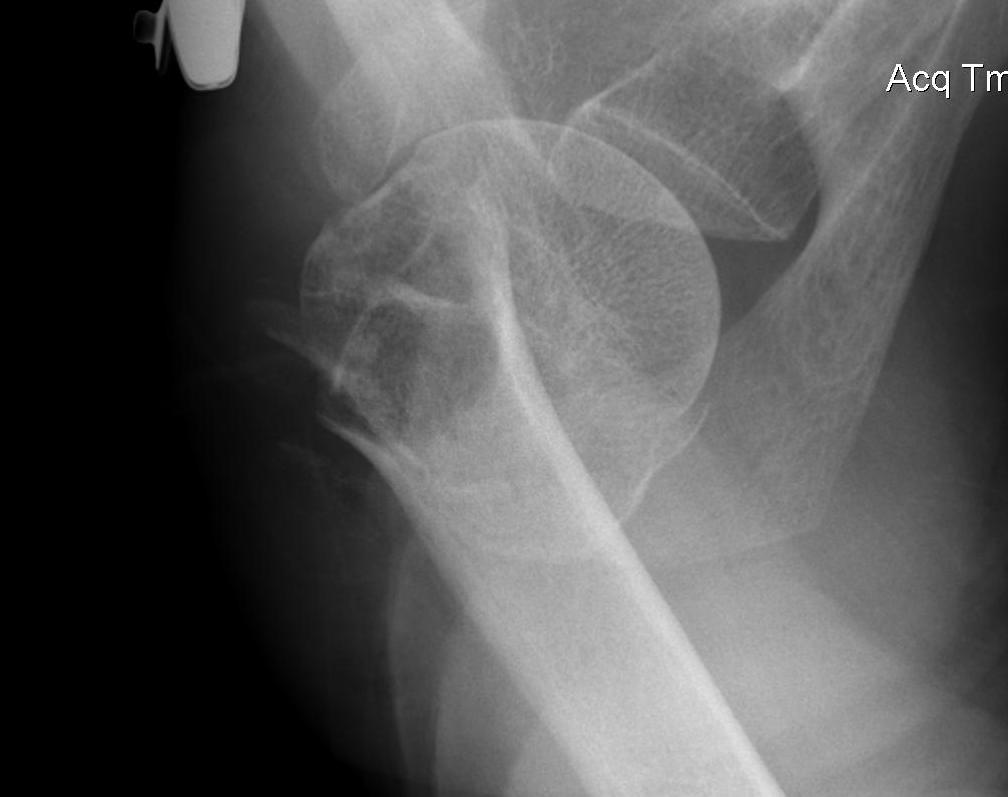

Displaced Proximal Humeral FractureSNOH Displaced 2 Part Fracture Axillary LateralSNOH Displaced 2 Part Fracture AP



Options

- percutaneous wires / screws

- intra-osseous sutures

- proximal humeral nail

- locking plate



B.  GT



Issues

- > 5mm displaced needs ORIF

- superior displacement will cause impingement

- up to 25% associated with cuff tear

- repair of cuff important step

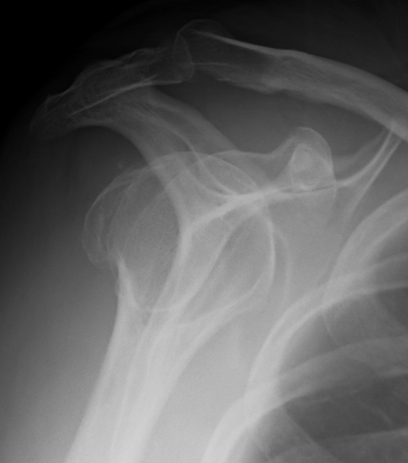

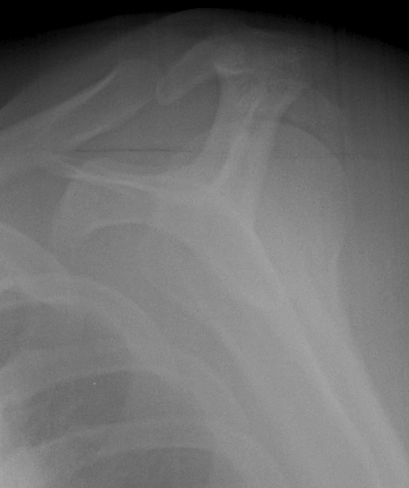

Displaced Greater Tuberosity Fracture LateralCT Coronal Greater Tuberosity FractureCT GT Fracture Sagittal



Technique

- deltoid splitting approach

- young patient can ORIF with screw

- in elderly insert Mason Allen no 2 suture in cuff and tie over screw

- repair rotator cuff

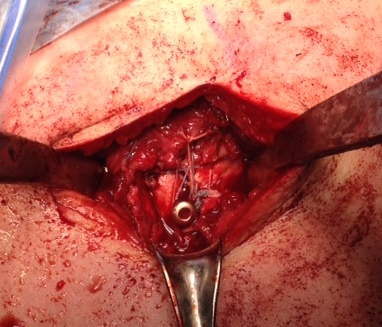

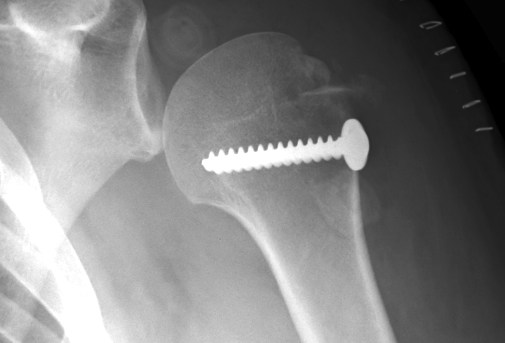

 ORIF Greater Tuberosity FractureGreater tuberosity Tie over screw



Consequences Nonoperative Treatment

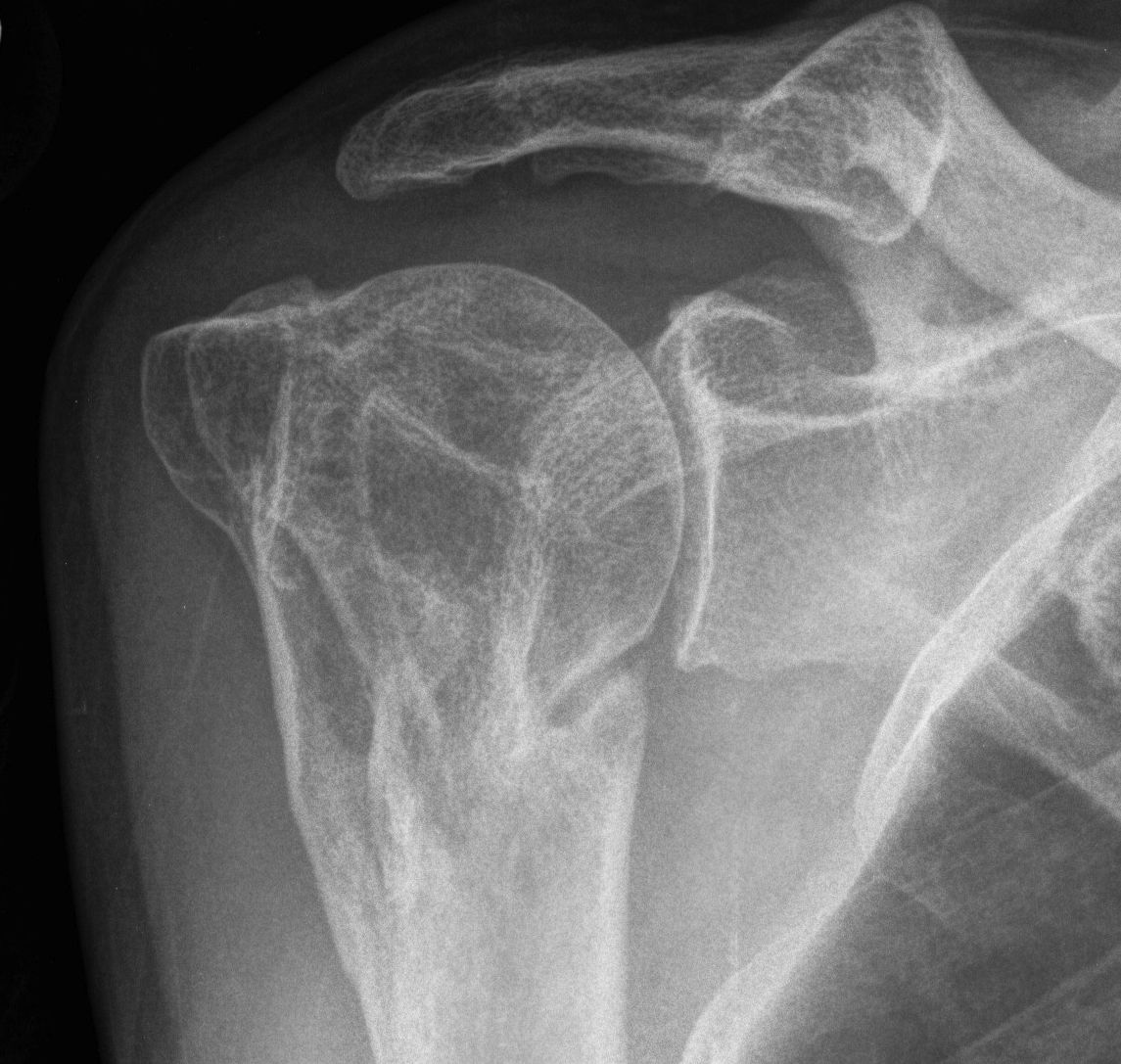

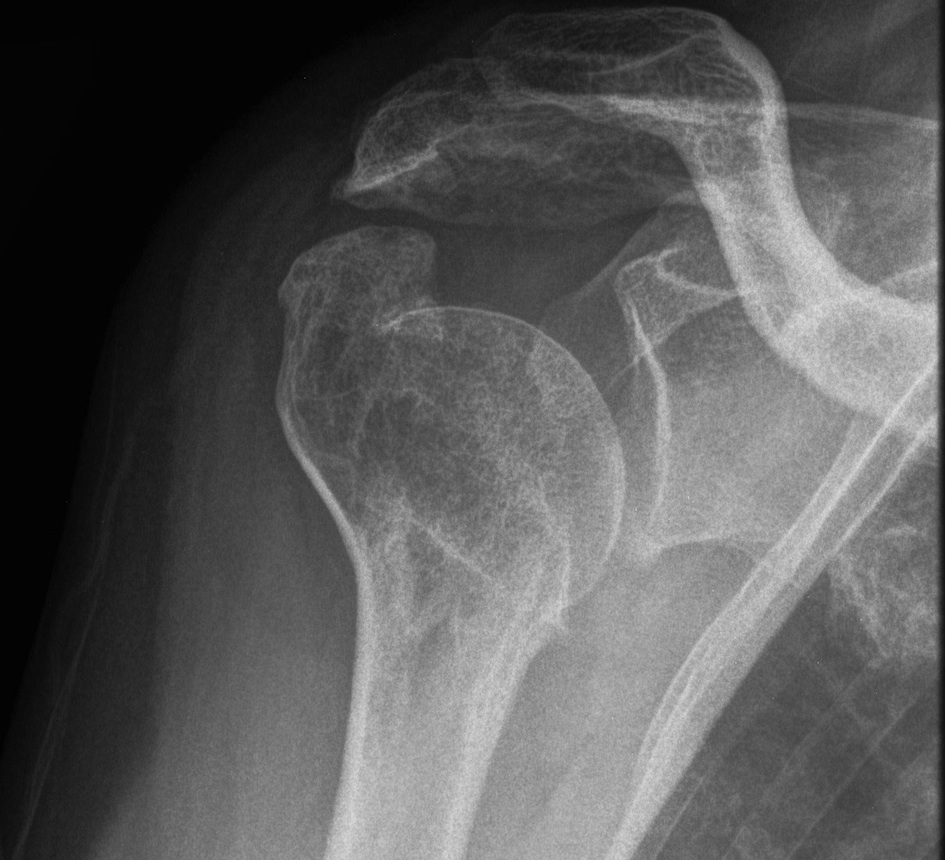

SNOH MalunionSNOH Malunion 2



C. LT Fractures



Soft tissue washer and screw

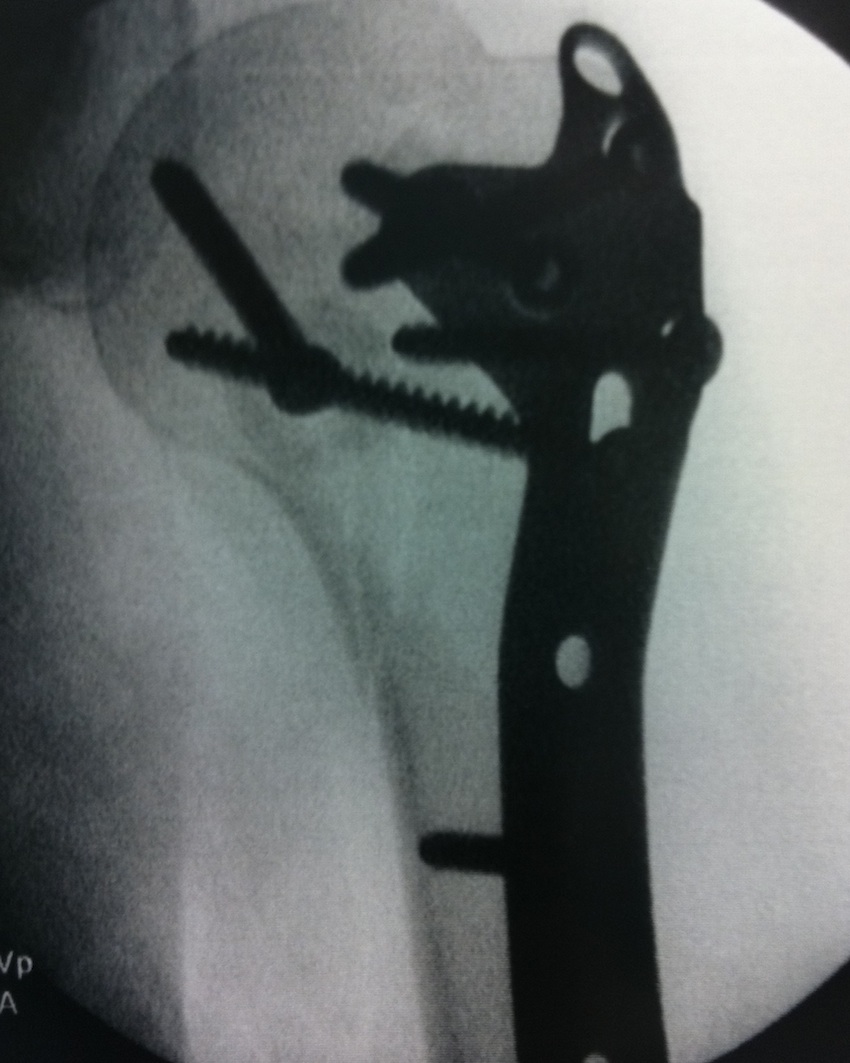

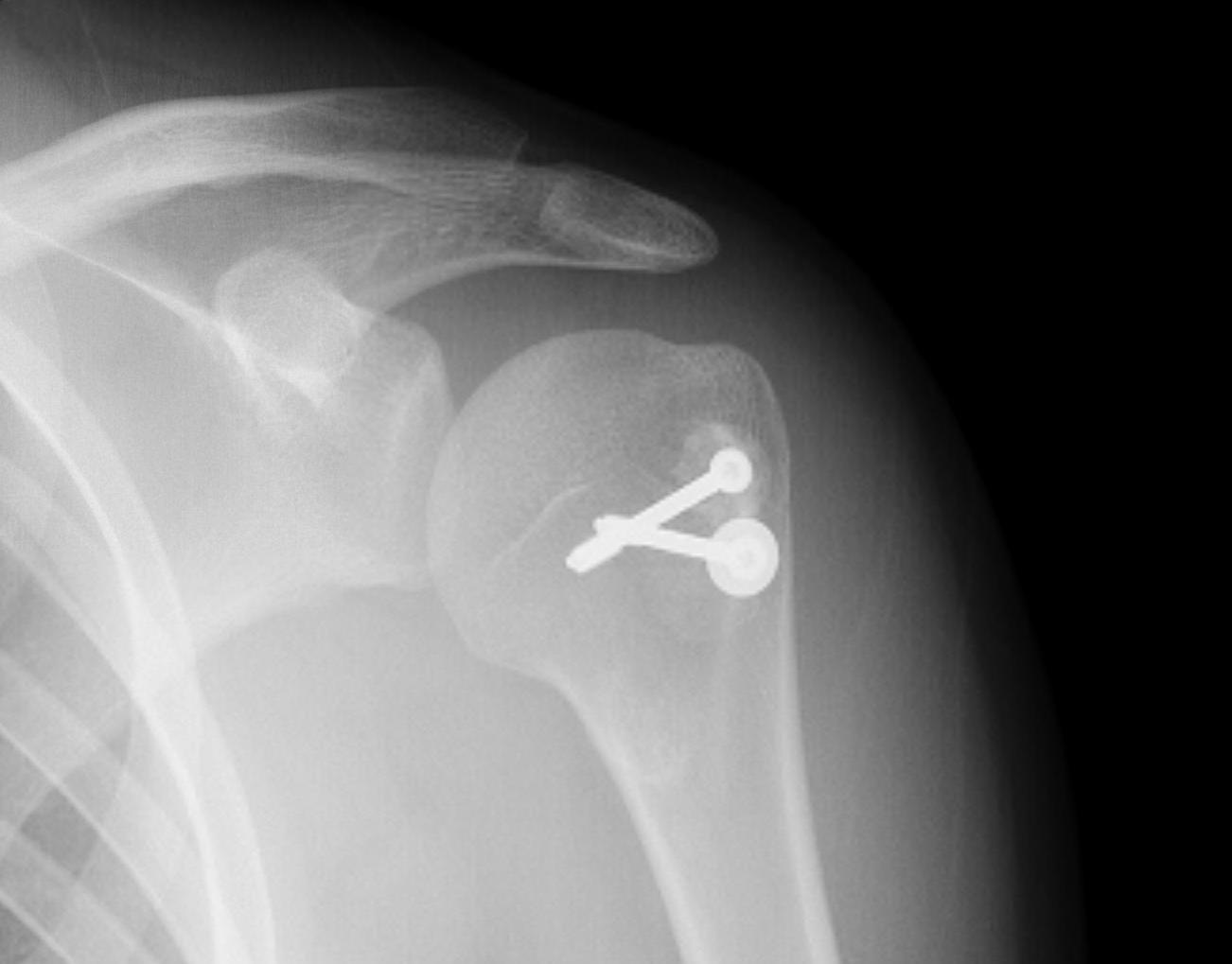

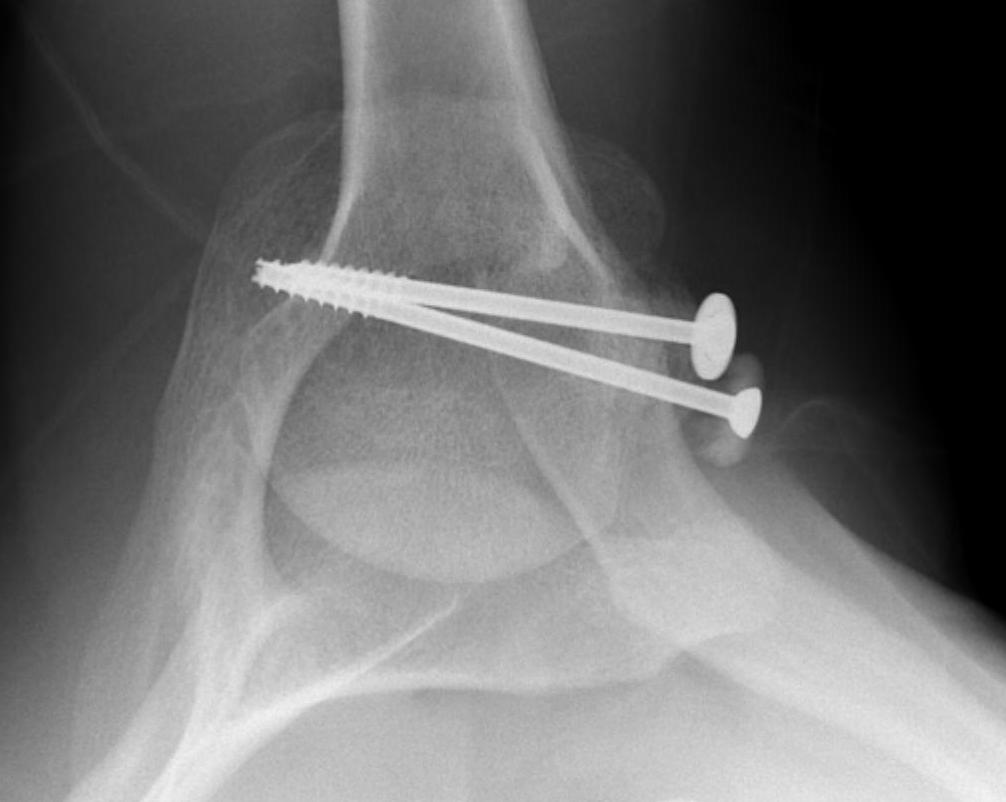

LT ORIF Soft tissue washerORIF Proximal Humerus and LT ORIF



LT ORIFLT ORIF



2.  3 & 4 Part fractures



A.  ORIF with plate

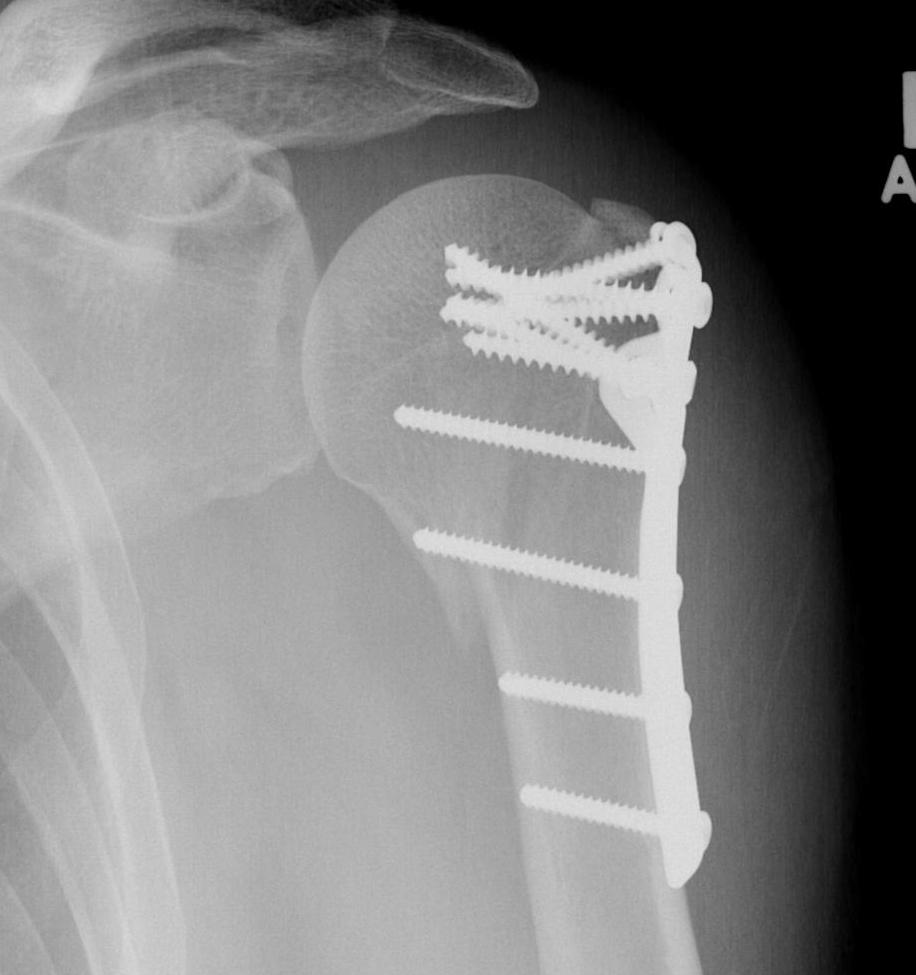

SNOH Plate



Indications

- need sufficient bone quality

- always attempt in young



Results



Moonot et al JBJS Br 2007

- 32 patients with 3 or 4 part treated with Philos plate

- 31 of 32 united

- 27/32 (86%) excellent or satisfatory results

- 5/32 (16%) poor results

- 1 patient AVN and non union



Yang et al J Orthop Trauma 2010

- 64 patients treated with proximal humeral plate

- screw penetration into joint most common complication 5/64

- deep wound infection 2/64

- AVN 2/64

- 3 fixation failures requiring revision

- half good and half moderate shoulder scores, few excellent or poor

- all complications in 4 part fractures

- tuberosity malunion associated with poor outcome



B.  IM Nail



Results



Agel et al J Should Elbow Surg 2004

- 20 patients treated with polaris nail

- 2 proximal failures requiring revision

- 5 delayed unions



C.  Hemiarthroplasty

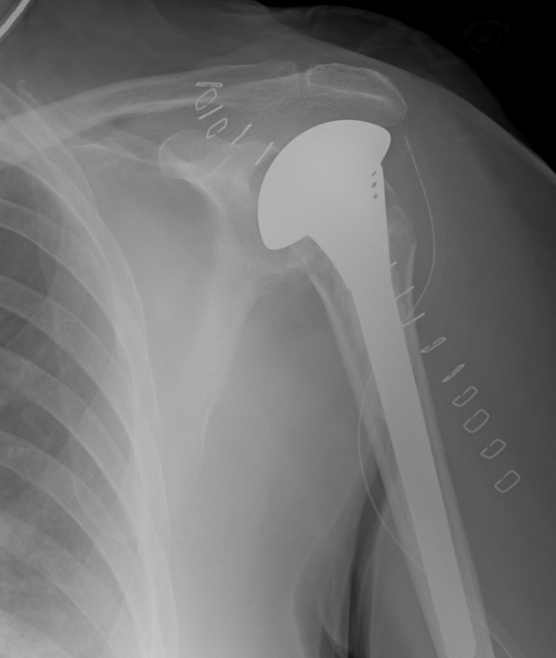

Shoulder Trauma HemiarthroplastyShoulder Trauma Hemiarthroplasty



Indications

- unreconstructable

- elderly

- 4 part fractures

- head splitting fractures

- anatomical neck

- head impression > 40% articular surface

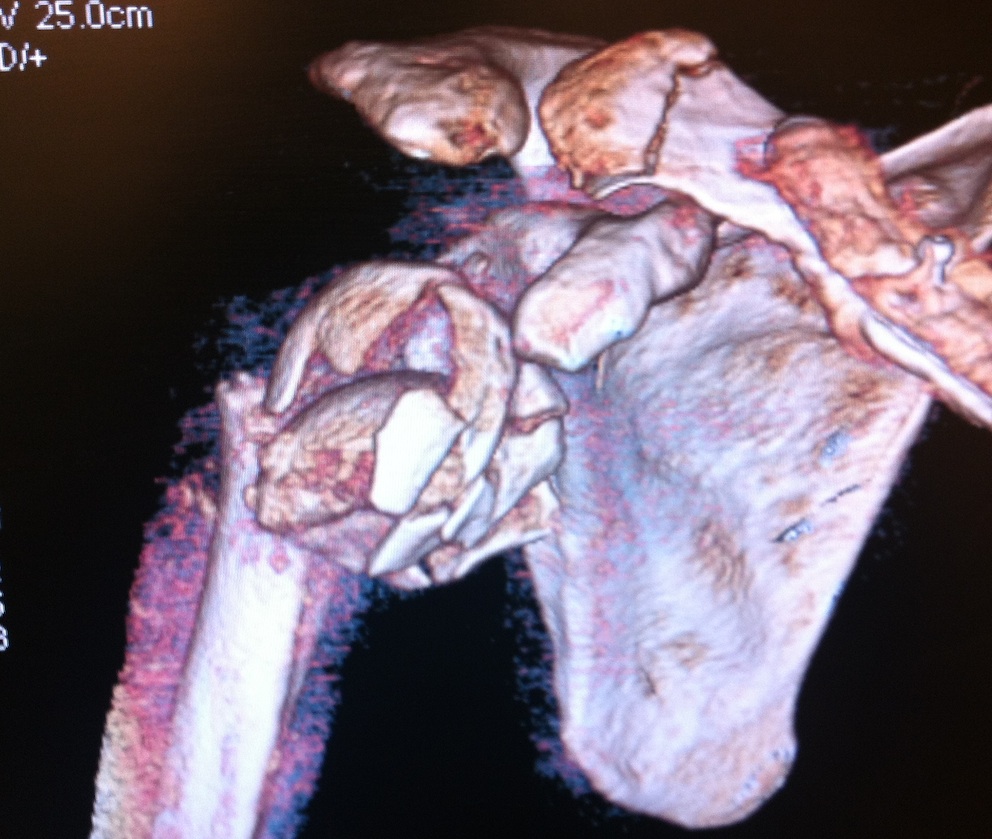

Proximal Humerus Unreconstructable



Problem

- only good ROM if tuberosities heal



Timing

- best to do in first three weeks

- whilst GT / LT still easy to mobilise



Results



ROM often poor

- better if anatomical union tuberosities

- early ROM gives better results (<2/52)

- rarely > 90o

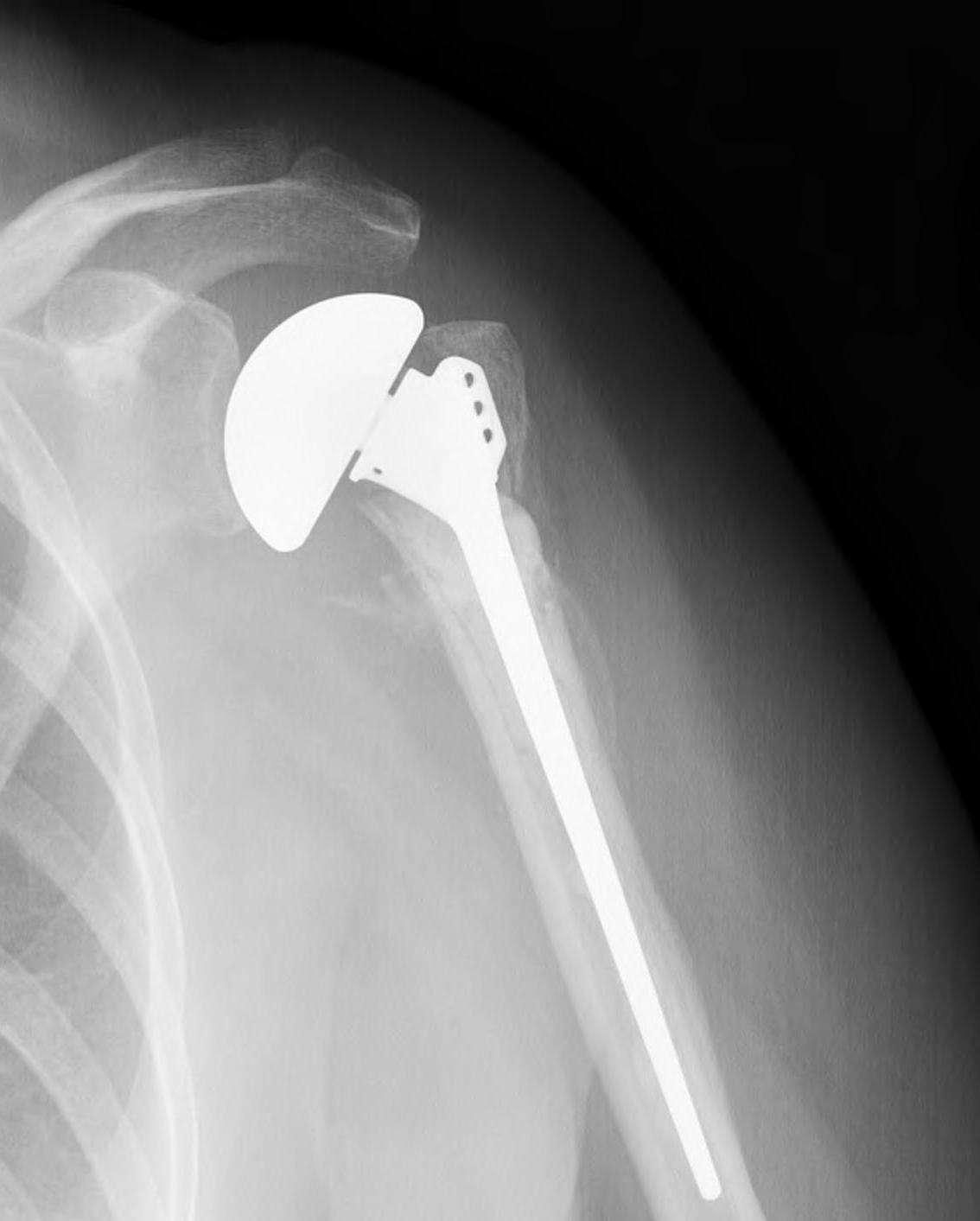

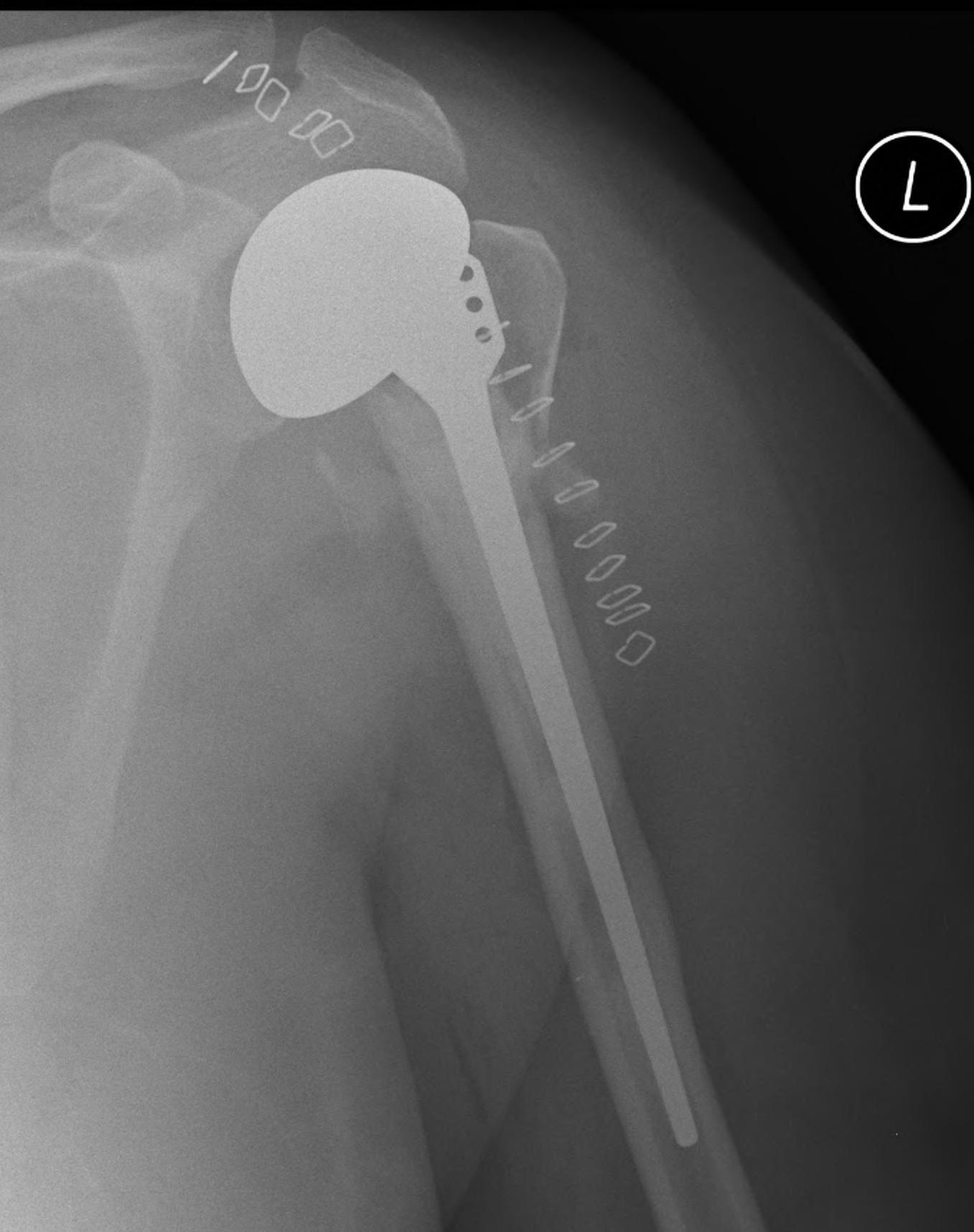

SNOH Hemi 1SNOH Hemi 2



Atuna et al J Should Elbow Surg 2008

- 57 patients with 5 year follow up

- average age 66

- active forward elevation 100o

- 16% moderate or severe pain



Caiet al Orthopedics 2012

- RCT of ORIF v hemiarthroplasty in 4 part fractures elderly

- 32 patients, average age 72 years

- 2 year follow up

- minor advantages in pain relief and ROM with shoulder hemiarthroplasty



D.  Reverse total shoulder



Indication

- elderly patient

- poor cuff

- poor chance of tuberosity healing



Problems

- reverse has more serious complications (i.e. dislocation)

- techically more difficult to do

- results are not outstanding



Results



Gallinet et al J Orthopaedics and Traumatology

- 21 patients hemiarthroplasty, 19 in reverse group

- forward flexion (90o v 60o) and abduction (90o v 53o) better in reverse

- rotation better in hemiarthroplasty



ORIF Locking Plate



SNOH CT 4 Part YoungProximal Humeral Fracture 4 Part Head Splitting CT



Proximal Humerus 4 Part Head Splitting ORIF APProximal Humeral 4 Part Head Splitting ORIF Lateral



Technique



Set up

- GA, IV ABx, lazy beach chair

- mark anatomy

- II (patient either in middle of radiolucent table or remove lateral aspect shoulder table)



Deltopectoral approach

- cephalic usually taken lateral

- take part of pec major off to facilitate exposure

- Hawkins Bell retractor (shoulder charnley retractor) / non pointed double gelpies

- divide clavipectoral fascia to expose SSC

- release lateral edge of conjoint tendon

- place retractor deep to tendon



Dangers

- protect MCN under conjoint, minimal retraction

- find and protect the axillary nerve on inferior border of SSC, sweep finger inferiorly



Deep dissection

- clear sup deltoid bursa

- must elevate deltoid from head

- place a homan retractor over head to elevate deltoid



Identify structures

- remove callous

- reduce head onto shaft

- head is displaced posteriorly

- use elevator and lever it forward

- provisionally fix with 2 mm k wire

- check for head splitting fractures



Find tuberosities

- secure with Mason Allen

- no 5 non absorbable



Apply plate

- lateral to biceps with single cortical screw in oblique hole

- check II now to avoid having plate too high

- must not leave head in varus

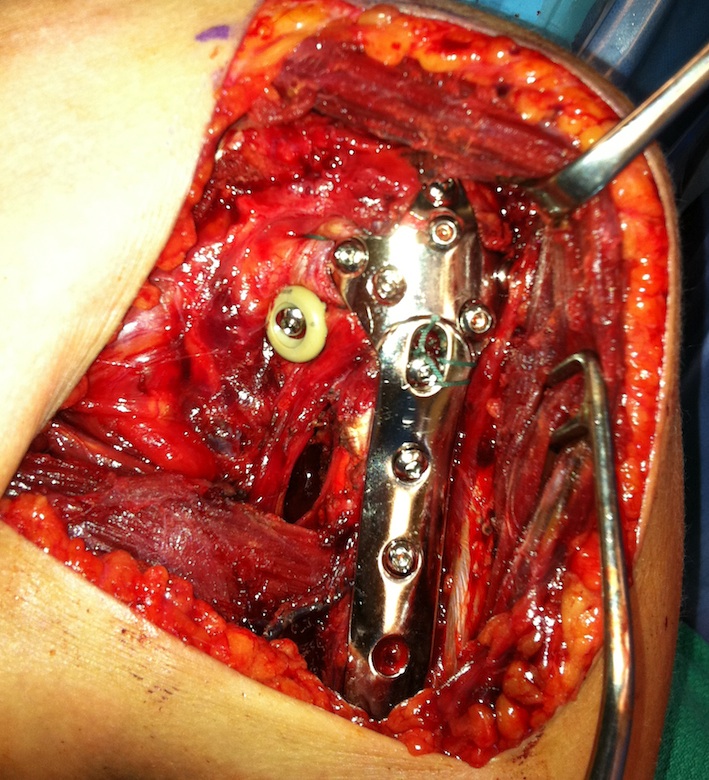

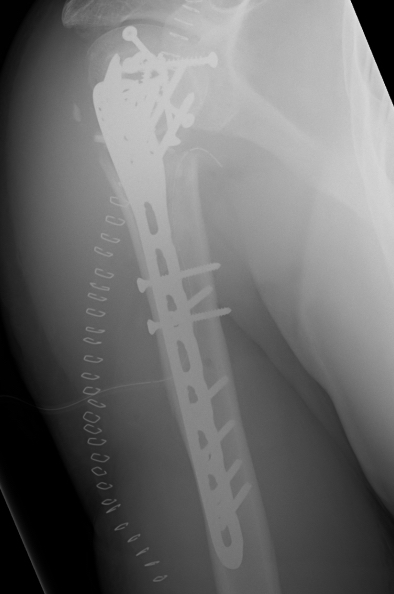

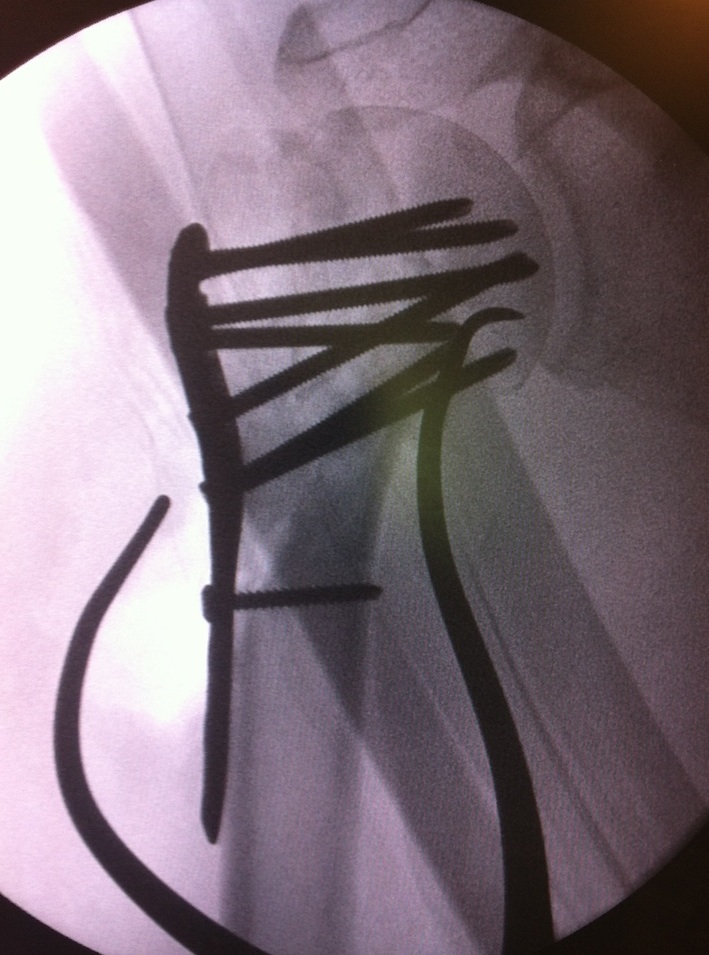

SNOH ORIF



Fixation

- to prevent cutout must have head out of varus

- long inferomedial screws / kickstand screws

- similar concepts to NOF (don't want screws high in the head)



Closure over drain



Rehab

- sling 6/52 with pendulars

- ROM 6/52



Complications



Non-union

- uncommon

- associated with AVN







Malunion

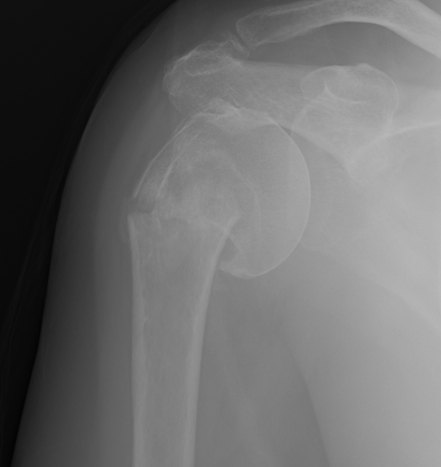

SNOH Malunion



Cutout

- medial support very important

- must avoid varus malreduction



Plate impingement

- need to ensure place plate low on the head



Screw perforation of humeral head

- most common complication



AVN

- fortunately uncommon

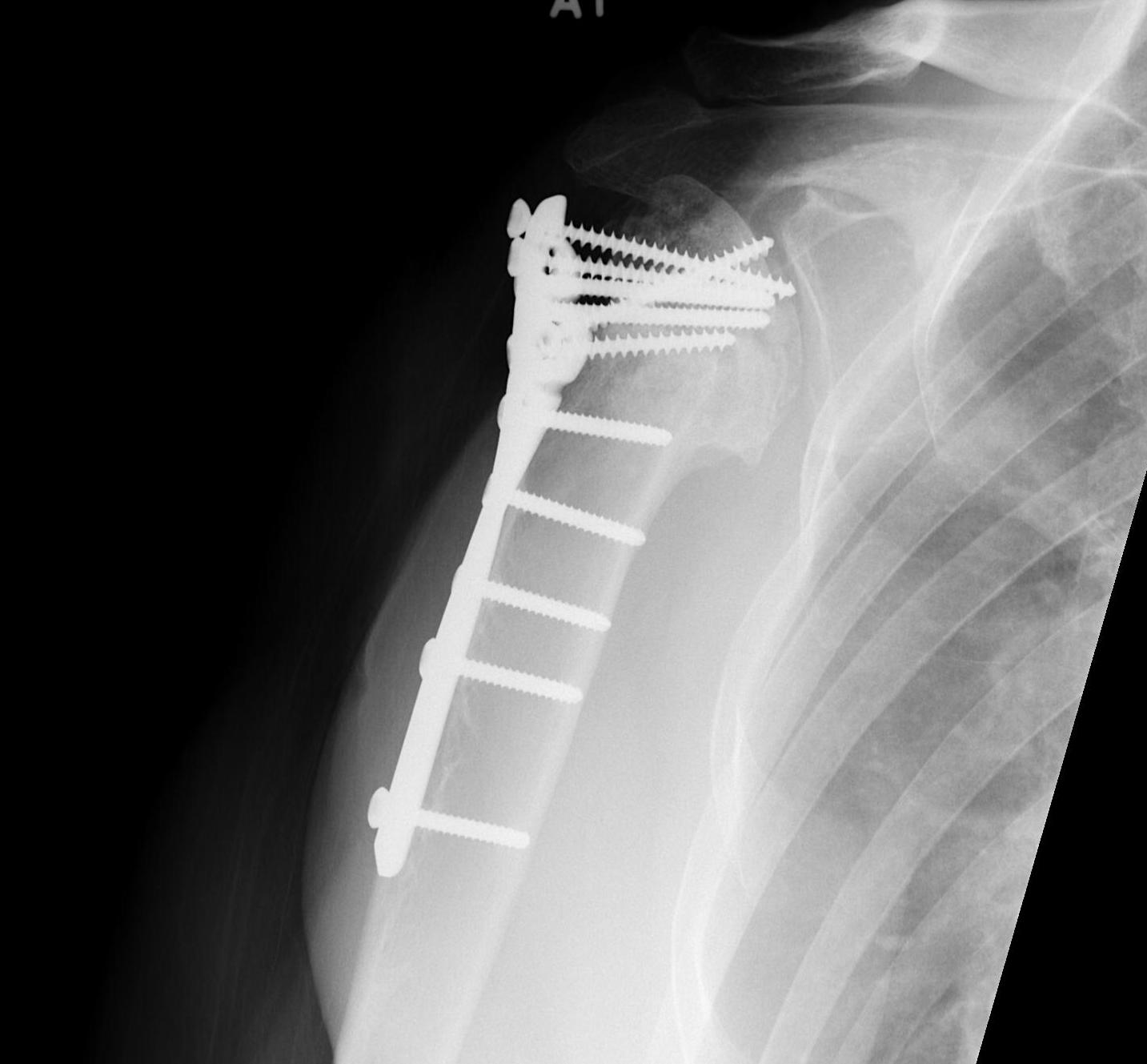

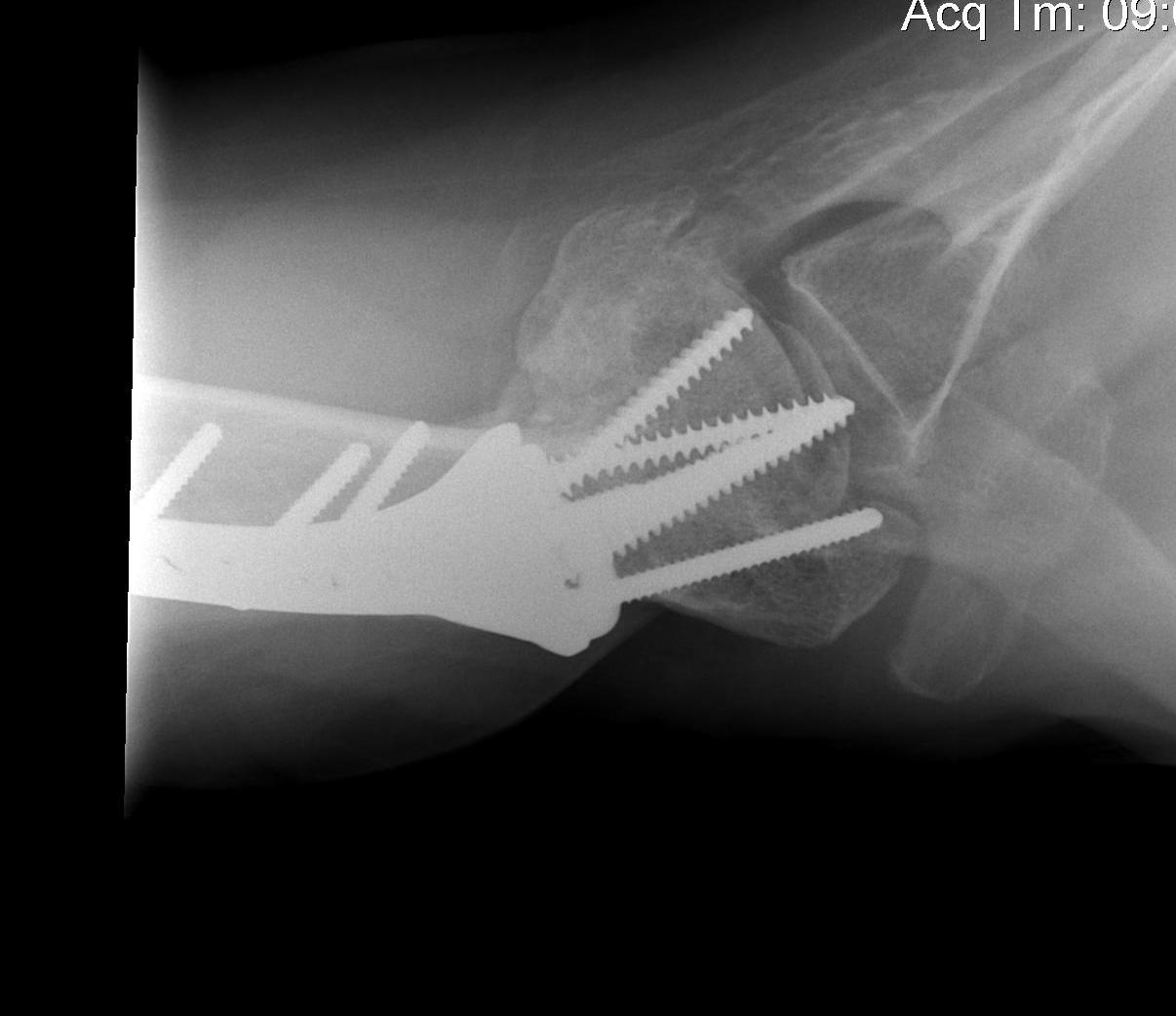

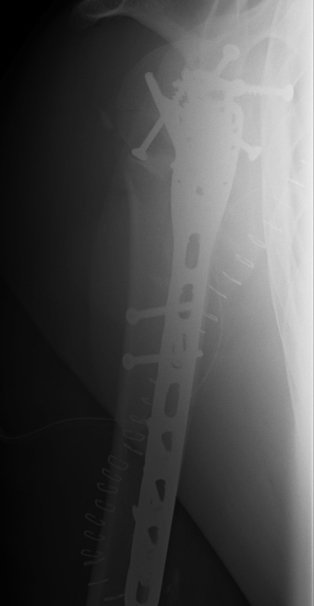

Shoulder AVN Post ORIFShoulder AVN Post ORIF Lateral

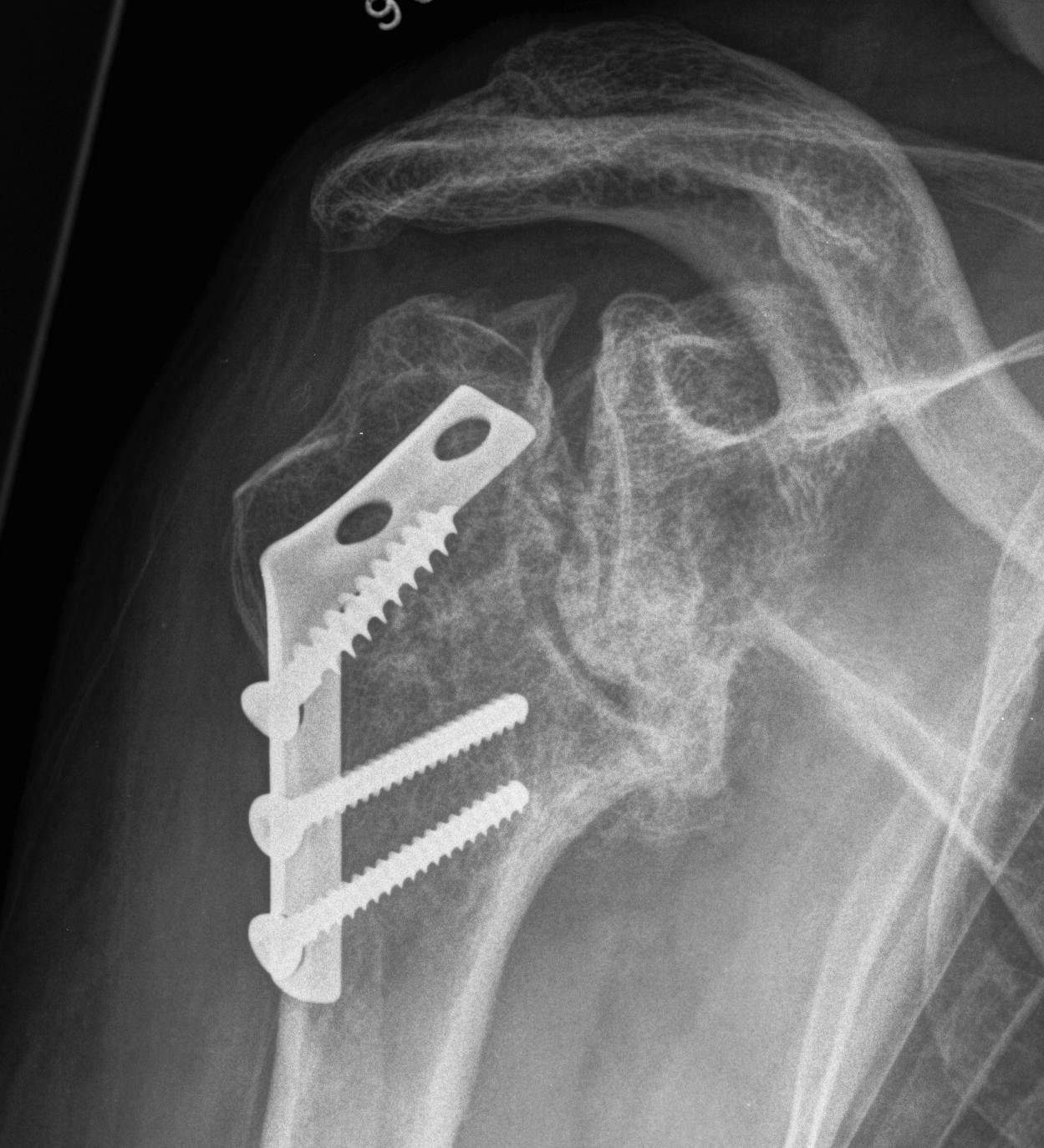

SNOH ORIF AVN



Vascular Injury



Axillary / MCN / Brachial Plexus



OA

- from signficant deformity

- TSR / consider resurfacing if significant deformity

- can be difficult surgery due to abnormal anatomy



Hemiarthroplasty



Proximal Humerus 4 Part Fracture In Elderly

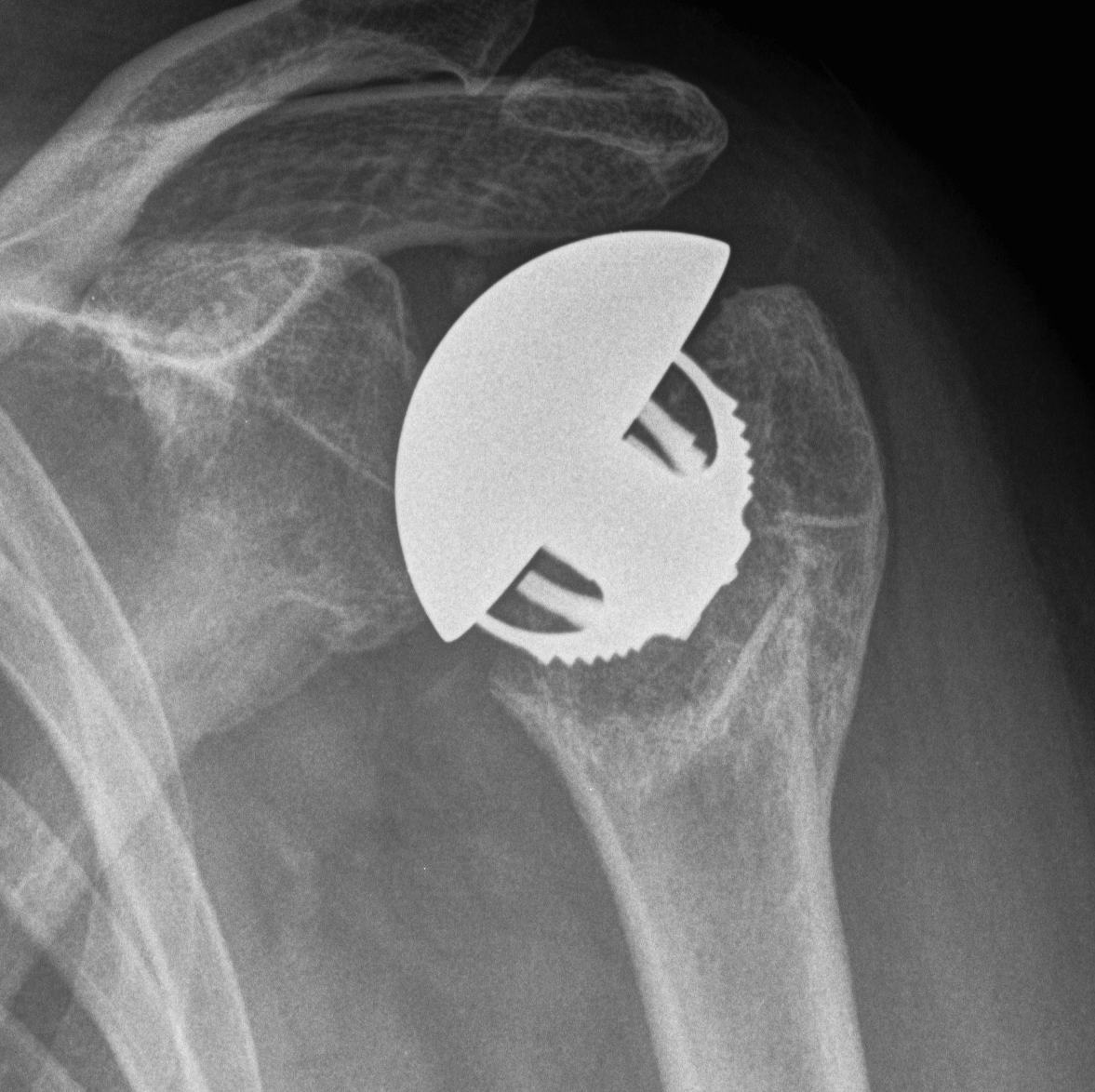

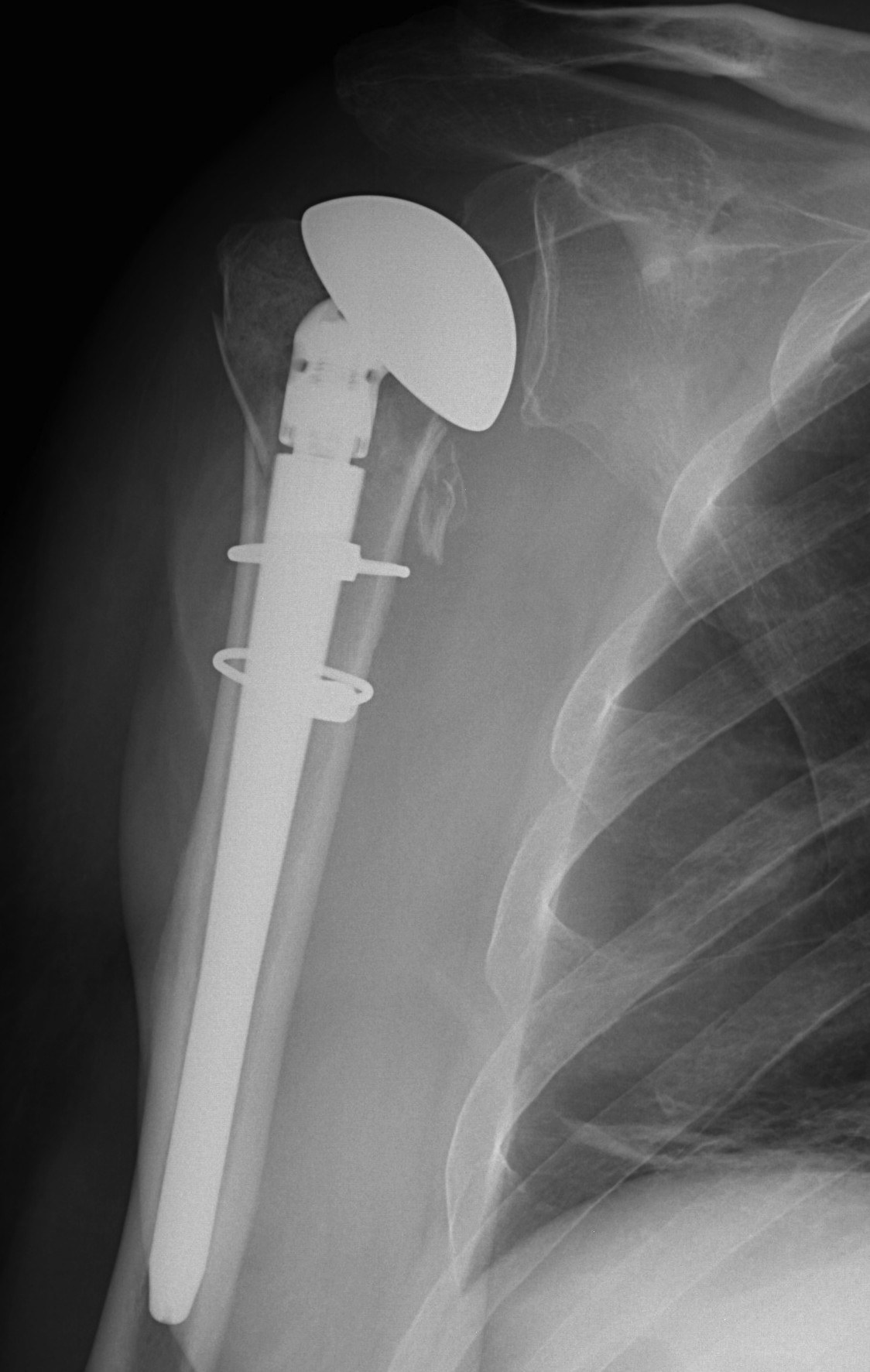

Shoulder Hemiarthoplasty TraumaShoulder Hemiarthroplasty Trauma 2TSR Post OA





Technique



Preoperative template

- often missing proximal neck

- x-ray of other side for reference

- template size, attempt to judge height



Set up

- need to be able to extend humerus to insert stem

- arm over side

- lazy beachchair

- head firmly secured on ring

- 500ml saline back between shoulder blades



Deltopectoral approach



Remove and tag tuberosities

- identify AXN first

- Mason Allen sutures, 2 in each

- often useful to debulk tuberosities



Remove and size anatomical neck

- identify diameter and thickness

- remove bone graft from head for tuberosity fixation



Ream humerus

- trial stem

- important to assess height

- trial with arm hanging to replicate weight

- will usually need to leave stem proud from fracture

- should be able to anatomically restore tuberosities



Need retroversion of 30o

- most prosthesis (i.e. Depuy Global Shoulder system) have an anterior fin

- position to the bicipital groove

- the prosthesis will be retroverted 30o



Need drill holes in humeral shaft

- medial 2 for LT sutures

- lateral 2 for GT sutues

- anterior 2 to pass through both

- no 2 fibre wire

- keep them gliding as the cement sets



Cement with low viscosity Abx cement

- cement restrictor

- nil pressurisation or will fracture



Place on head with 12/14 taper



Repair tuberosities

- use any bone graft available

- 2 x additional sutures through anterior fin

- 1 x additional suture through medial hole



Biceps tenodesis



Close over drain, rehab as above



Complications



Malunion / Non union tuberosities



Causes

- increased in women

- increased with initial malposition

- excessive height or retroversion of humeral head



Incidence

- 4-50%



Heterotropic ossification

- 10%



Glenoid degeneration

- 8% at 3 years



Prosthetic loosening

- 3-6%



Nerve injury

- AXN, MCN



Infection

- 1-2%



Stiffness

- need realistic goals

- aim to achieve function at shoulder height
