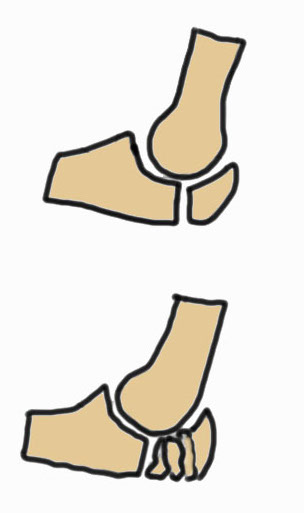

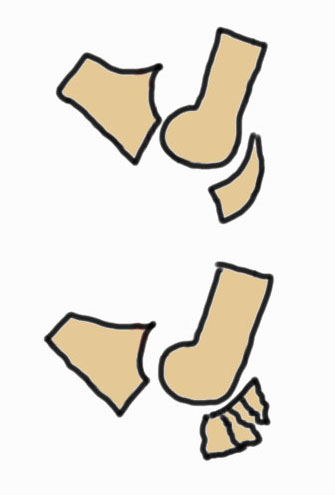

Olecranon Fracture

Definition



Intra-articular proximal ulna fracture

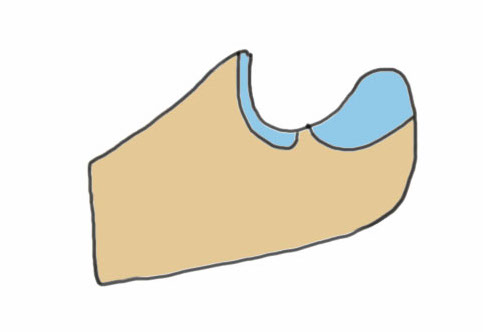

Anatomy



Articulates with trochlea

- may have a central bare area



Triceps insertion

- via broad aponeurosis which blends with anconeus and CEO



Management



Non operative Management



Undisplaced fracture

- need to ensure triceps mechanism is intact

- Long arm POP 3/52 in 90o flexion



Operative Management



Indications



1.  Disruption of extensor mechanism

- any displaced fracture

2.  Articular incongruity



Options



TBW

Plate

Excision fragment / triceps advancement



TBW Technique



Elbow Olecranon FractureOlecranon Fracture AP TBWOlecranon TBW Lateral



Goal

- convert the tensile distraction force of triceps into a compressive force at the articular surface



Options

- bi-cortical K wires

- intra-medullary k wires

- intramedullary screw



Contraindication

- fracture distal to centre of rotation / midpoint of trochlea notch

- highly comminuted fractures

- oblique fractures

- best to use plate in these situations



Technique

- lateral decubitus over bolster

- curvilinear incision to avoid prominence of olecranon

- clean and washout haematoma

- reduction (extend elbow to defunction triceps / place bone forcep)

- 2 x IM k wires (no need to bite anterior cortex / risk nerve injury)

- drill hole in ulna, pass 20 gauge wire

- form figure of 8 wire about wires, can pass under triceps

- twist via 2 knots

- bury end of K wires under triceps



Screw / TBW



Beware bow of proximal ulna

- may cause medial shift

- avoid long screw



Plate



Olecranon Fracture Lateral



Indication

- fracture distal to centre of rotation



Main problem is hardware prominence

- precontoured low profile

- proximal hooks to grip triceps

- beware over compression articular surface in comminuted fractures



Olecranon Plate

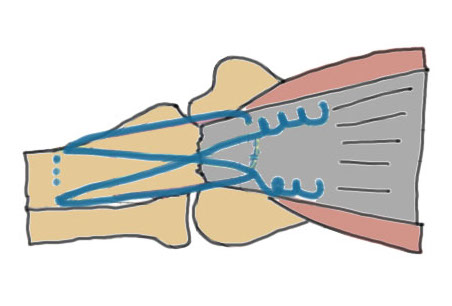

Excision fragment / triceps advancement



Indications

- elderly

- osteoporotic

- < 50% articular surface

- non reconstructable
